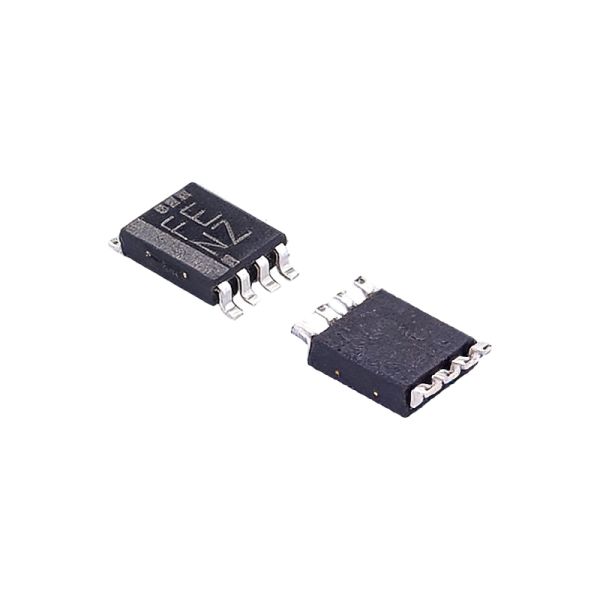

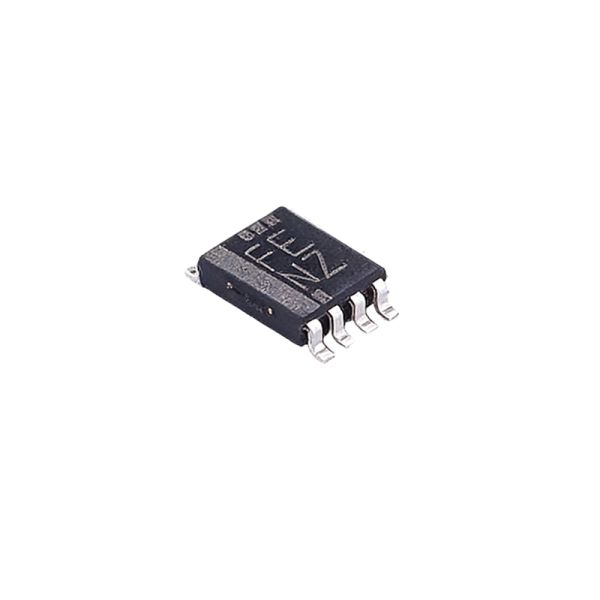

MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range
Specifications
Brand Name :
MSKSEMI
Model Number :
MTXS0102DCUR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Catalog :
Converter/Level Shifter
Channel Type :
bidirectiona
Data Rate :
24Mbps
umber of channels per circult :
2
Output Type :
Tri-state
Norkingtemperature :
-40°C~+85°C
Description

MTXS0102DCUR Bidirectional Voltage Level Converter 24Mbps 1.65V~3.6V

Features

  • No direction -control
  • Data rates
    • 24 Mbps (Push Pull)
    • 2 Mbps (Open)
  • 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB)
  • VCC isolation feature: If either VCCinput isat GND, both ports are in the high -impedancestate
  • No power -supply sequencing required: either VCCA or V CCB can be ramped first
  • Ioff supports partial -power -down modeoperation
  • Operating temperature range: -40℃to+85℃

ESD Value

ESD Value Unit
V(ESD) Electrostatic Discharge Human-Body Model (HBM)(1) ±5K V
Charged-Device Model (CDM)(2) ±2K V
MTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V RangeMTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V RangeMTXS0102DCUR Bidirectional Voltage Level Converter with 24Mbps Data Rate and 1.65V~3.6V Range

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
