Specifications
Brand Name :
MICROCHIP
Model Number :
MCP4725A0T-E/CH
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
Digital to Analog Converters - DAC
Number of Outputs: :
1
Operating Supply Voltage: :
2.7V~5.5V
Minimum Operating Temperature: :
- 40 °C
Maximum Operating Temperature: :
+ 125 °C
Package | Pins :
SOT-23-6
Description
MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter With EEPROM Memory
12-Bit Digital-to-Analog Converter with EEPROM Memory in SOT-23-6 package, designed for precision analog output applications.
Key Features
  • 12-Bit Resolution for precise analog output
  • On-Board Non-Volatile Memory (EEPROM) for configuration storage
  • ±0.2 LSB DNL (typical) for excellent linearity
  • External A0 Address Pin for device addressing
  • Normal or Power-Down Mode operation
  • Fast Settling Time: 6 µs (typical)
  • External Voltage Reference (VDD)
  • Rail-to-Rail Output capability
  • Low Power Consumption for energy-efficient applications
  • Single-Supply Operation: 2.7V to 5.5V
  • I2C Interface with eight available addresses
  • Small 6-lead SOT-23 Package for space-constrained designs
  • Extended Temperature Range: -40°C to +125°C
Applications
  • Set Point or Offset Trimming
  • Sensor Calibration
  • Closed-Loop Servo Control
  • Low Power Portable Instrumentation
  • PC Peripherals
  • Data Acquisition Systems
Part Number Configuration
Part Number Address Option Code
MCP4725A0T-E/CH A0 (00) AJNN
MCP4725A1T-E/CH A1 (01) APNN
MCP4725A2T-E/CH A2 (10) AQNN
MCP4725A3T-E/CH A3 (11) ARNN

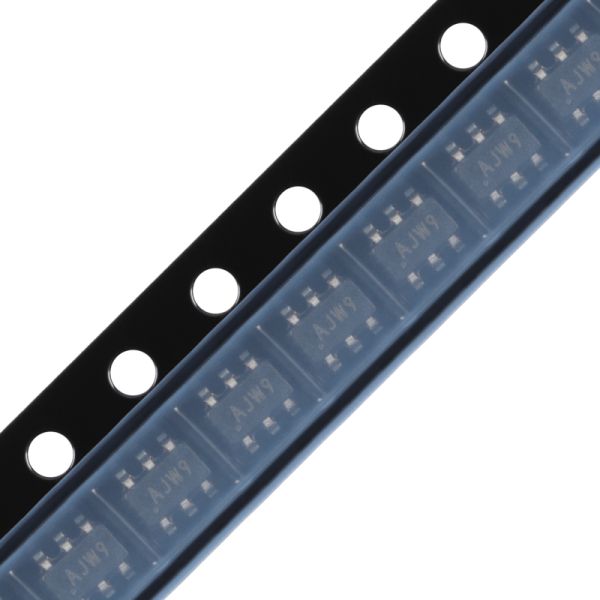

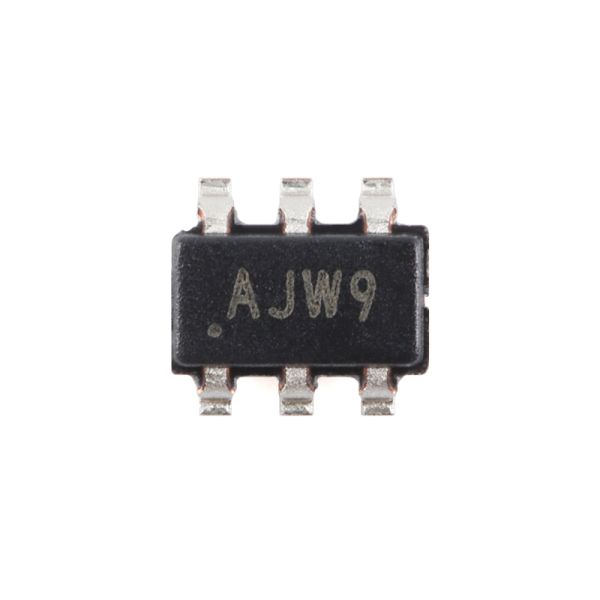

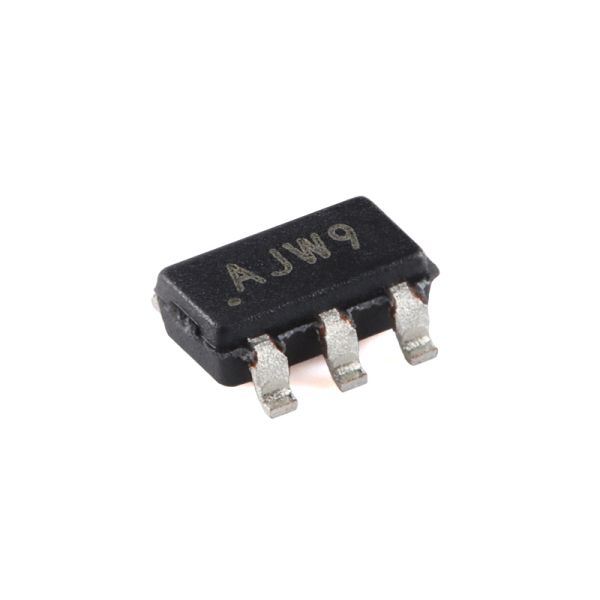

Product Images
MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter With EEPROM Memory In SOT-23-6 MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter With EEPROM Memory In SOT-23-6 MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter With EEPROM Memory In SOT-23-6
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
