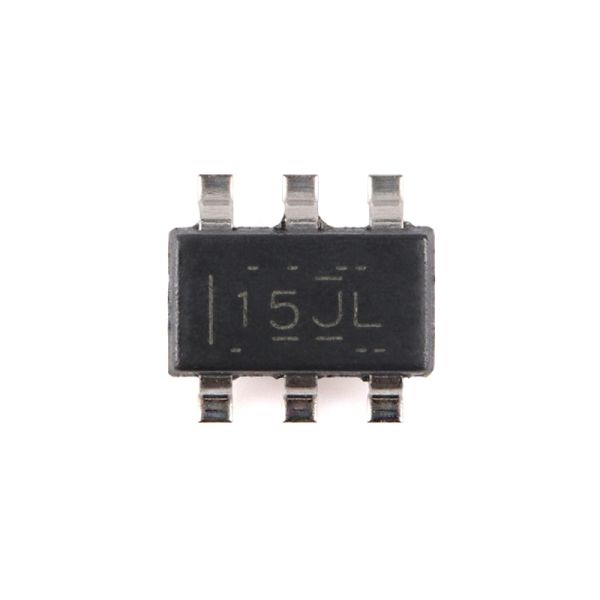

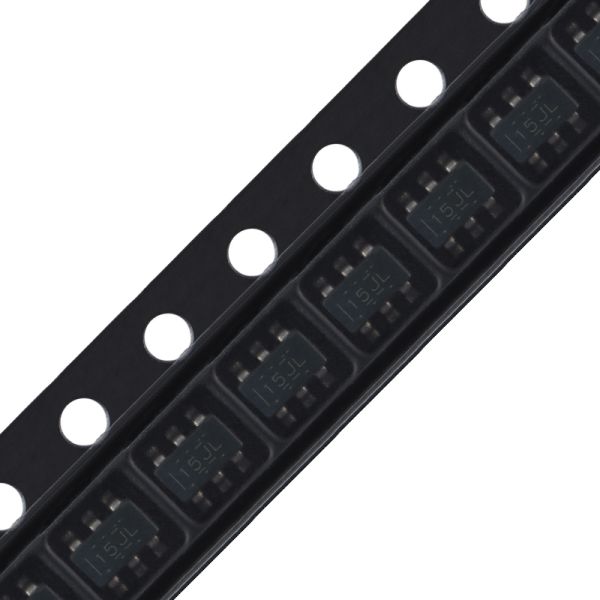

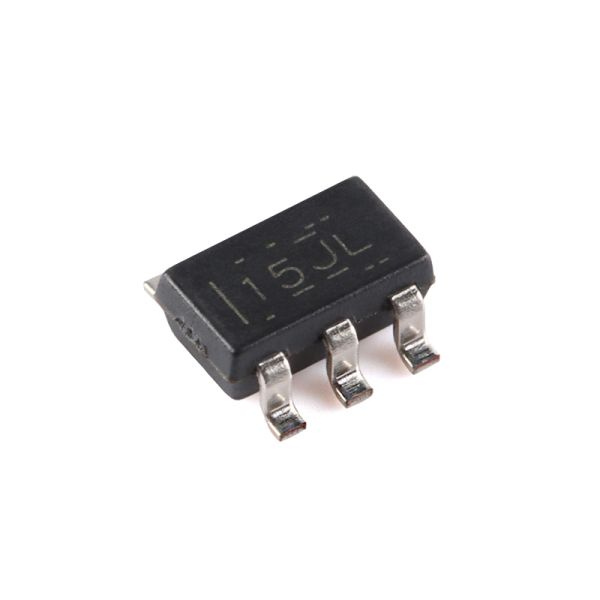

TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
Specifications
Brand Name :
TI
Model Number :
TPS2553DDBVR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
Power Switch ICs - Power Distribution
Number of Outputs: :
1
Operating Supply Voltage: :
2.7V~6.5V
Minimum Operating Temperature: :
- 40 °C
Maximum Operating Temperature: :
+ 125 °C
Package | Pins :
SOT-23-6
Description
TPS2553DDBVR USB Power Switch
0.075-1.7A Adjustable Current Limit, 2.5-6.5V Operating Range, 85mΩ High-Side MOSFET with Active-high Reverse Blocking
Key Features
  • Up to 1.5 A Maximum Load Current
  • ±6% Current-Limit Accuracy at 1.7 A (Typical)
  • Meets USB Current-Limiting Requirements
  • Backwards Compatible with TPS2550/51 Series
  • Adjustable Current Limit: 75 mA to 1700 mA (Typical)
  • Constant-Current Operation (TPS2552D and TPS2553D)
  • TPS2552D (Enable Low) and TPS2553D (Enable High)
  • Fast Overcurrent Response: 2 μs (Typical)
  • 85-mΩ High-Side MOSFET (DBV Package)
  • Reverse Input-Output Voltage Protection
  • Operating Range: 2.7 V to 6.5 V
  • Built-in Soft-Start Function
  • 15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)
  • UL Listed – File No. E169910 and NEMKO IEC60950-1-am1 ed2.0
  • Compatible with TI Switch Portfolio
Applications
  • USB Ports and Hubs
  • Digital TV Systems
  • Set-Top Boxes
  • VOIP Phones
Part Number Specifications
Part Number Package Body Size (Nominal)
TPS2552D SOT-23 (6) 2.90 mm * 1.60 mm
TPS2553D SOT-23 (6) 2.90 mm * 1.60 mm
