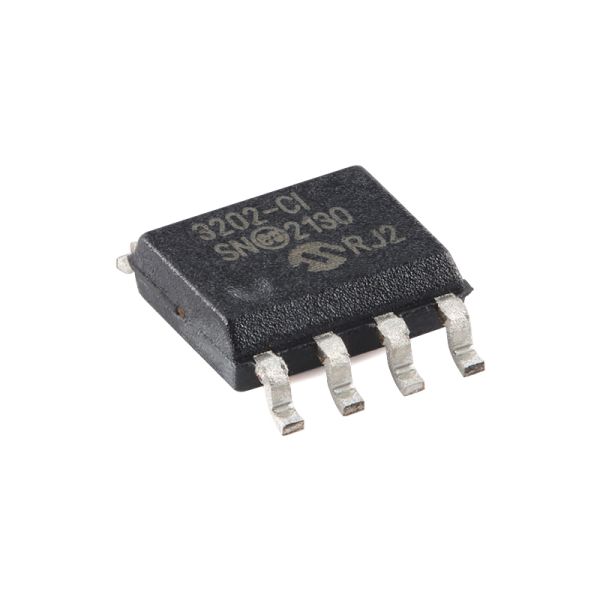

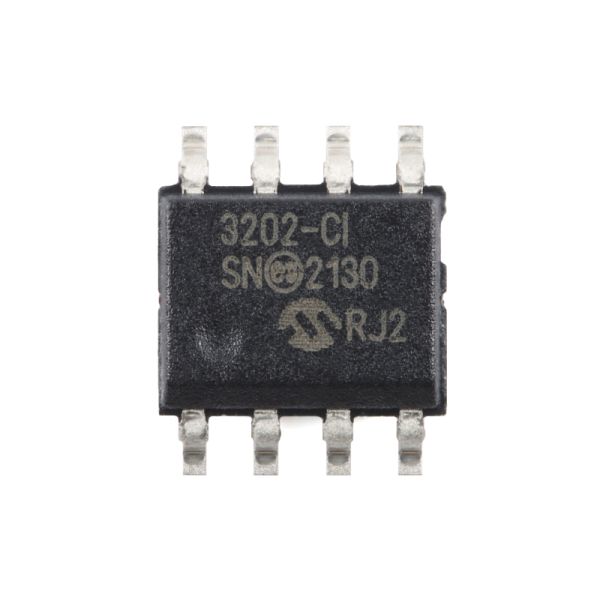

MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
Specifications
Brand Name :
MICROCHIP
Model Number :
MCP3202-CI_SN
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days

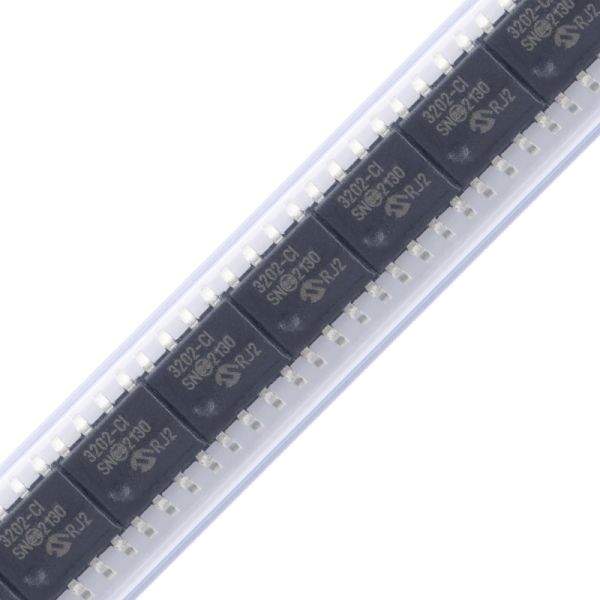

Packaging Details :
T/R
Product Category: :
Digital to Analog Converters - ADC
Number of Outputs: :
2
Operating Supply Voltage: :
2.7V~5.5V
Minimum Operating Temperature: :
- 40 °C
Maximum Operating Temperature: :
+ 85 °C
Package | Pins :
SOP-8
Description
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter
High-performance 12-bit analog-to-digital converter with SPI serial interface, designed for precision measurement applications.
Key Features
  • 12-bit resolution for precise analog-to-digital conversion
  • ±1 LSB maximum DNL (Differential Non-Linearity)
  • ±1 LSB maximum INL (MCP3202-B) / ±2 LSB maximum INL (MCP3202-C)
  • Programmable analog inputs as single-ended or pseudo-differential pairs
  • On-chip sample and hold circuitry
  • SPI Serial Interface supporting Modes 0,0 and 1,1
  • Single supply operation: 2.7V to 5.5V
  • 100 ksps maximum sampling rate at 5V, 50 ksps at 2.7V
  • Low power CMOS technology
  • 500 nA typical standby current, 5 µA maximum
  • 550 µA maximum active current at 5V
  • Industrial temperature range: -40°C to +85°C
  • Available in 8-pin MSOP, PDIP, SOIC and TSSOP packages
Applications
Sensor Interface, Process Control, Data Acquisition, Battery Operated Systems
Pin Configuration
Pin Function
1 CS/SHDN - Chip Select/Shutdown Input
2 CH0 - Channel 0 Analog Input
3 CH1 - Channel 1 Analog Input
4 VSS - Ground
5 DIN - Serial Data In
6 DOUT - Serial Data Out
7 CLK - Serial Clock
8 VDD/VREF - +2.7V to 5.5V Power Supply and Reference Voltage Input
MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface MCP3202-CI/SN 2.7V Dual Channel 12-Bit A/D Converter With SPI Serial Interface
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
