Specifications
Brand Name :
ST
Model Number :
STMPS2141STR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days

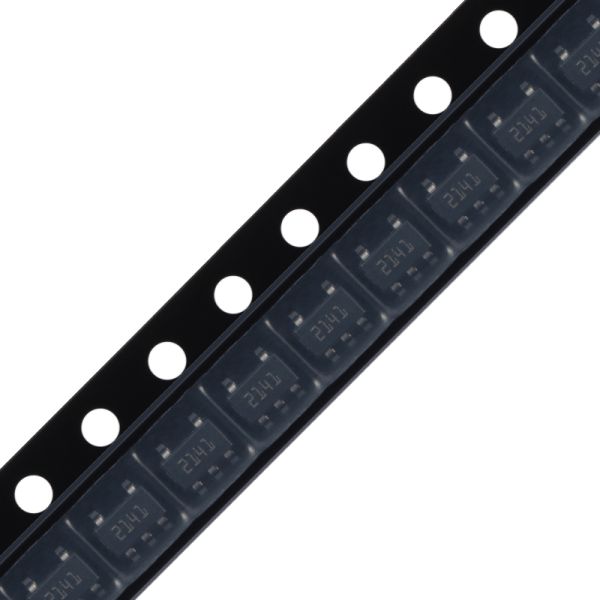

Packaging Details :
T/R
Product Category: :
Power Switch ICs - Power Distribution
Number of Outputs: :
1
Operating Supply Voltage: :
2.7 V to 5.5 V
Minimum Operating Temperature: :
- 40 C
Maximum Operating Temperature: :
+ 85 C
Output Current: :
500 mA
On-Resistance :
90mΩ
Description

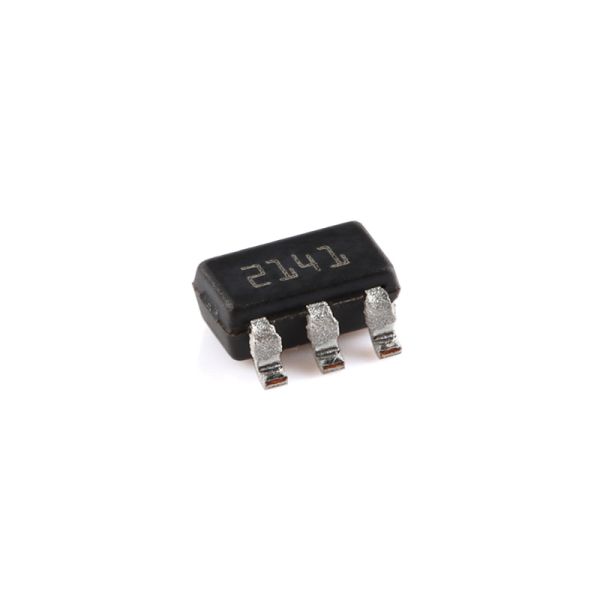

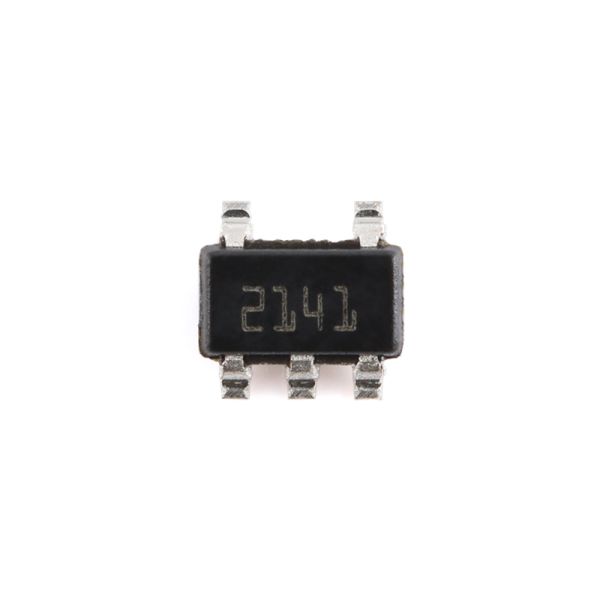

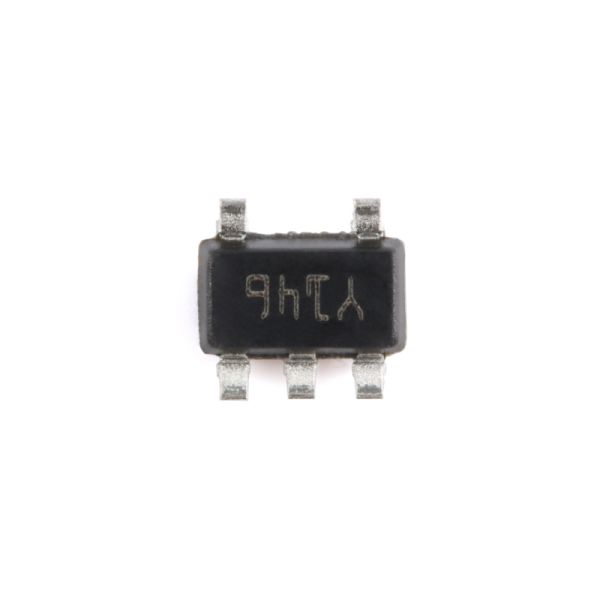

STMPS2141 STMPS2151 STMPS2161 STMPS2171 Enhanced Single Channel Power Switches
Product Overview

The STMPS2141, STMPS2151, STMPS2161, and STMPS2171 power distribution switches are designed for applications requiring robust protection against heavy capacitive loads and short-circuits. These devices integrate 90 mΩ N-channel MOSFET high-side power switches controlled by logic enable inputs.

Key Features
  • 90 mΩ high-side MOSFET switch
  • 500/1000 mA continuous current capacity
  • Comprehensive thermal and short-circuit protection with overcurrent logic output
  • Wide operating voltage range: 2.7 to 5.5 V
  • CMOS and TTL compatible enable input
  • Undervoltage lockout (UVLO) protection
  • Low 12 µA maximum standby supply current
  • Extended ambient temperature range: -40 to 85 °C
  • Robust 8 kV ESD protection
  • Reverse current protection
  • Fault blanking capability
  • UL recognized components (UL file number: E354278)
Product Models & Specifications
Model Current (mA) Enable Logic
STMPS2141MTR, STMPS2141STR, STMPS2141TTR 500 Active low
STMPS2151MTR, STMPS2151STR, STMPS2151TTR 500 Active high
STMPS2161MTR, STMPS2161STR, STMPS2161TTR 1000 Active low
STMPS2171MTR, STMPS2171STR, STMPS2171TTR 1000 Active high
Product Documentation
STMPS2141 STMPS2151 STMPS2161 STMPS2171 Enhanced Single Channel Power Switches STMPS2141 STMPS2151 STMPS2161 STMPS2171 Enhanced Single Channel Power Switches STMPS2141 STMPS2151 STMPS2161 STMPS2171 Enhanced Single Channel Power Switches STMPS2141 STMPS2151 STMPS2161 STMPS2171 Enhanced Single Channel Power Switches
Packaging & Shipping

Standard export packaging available. Customers can select from cartons, wooden cases, and wooden pallets according to specific requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
