Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design
Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design
Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design
Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design
Specifications
Brand Name :
Dexon
Model Number :
DX083IA
Certification :
CE、RoHS、ISO、IEC、IALA、IMO
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Interface Types :
RS232, RS485, RJ45
Materia :
FRP (Fiberglass Reinforced Plastic)
Message :
Message 21, 6, 8, 14, Supports Multiple Formats
AIS Transmission Distance :
20NM~25NM
Operating Temperature :
-30°C to +60°C
Protection Level :
IP68
Certifications :
CE, RoHS, ISO,IEC, IALA
applications :
Port Operation Centers VTS Centers (Vessel Traffic Service) Maritime Authority Control Rooms Coastal Monitoring Stations Harbor AIS Infrastructure Nodes Research & Test Environments
Description

Indoor AIS AtoN Base Station, with RS232, plug-and-play design,

real-time data for AtoNs and stations

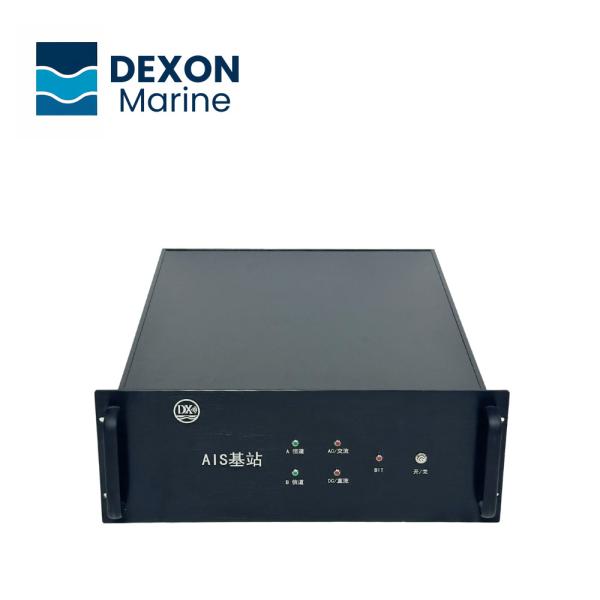

The DX083IA is a desktop-sized unit offering a fully integrated AIS solution, reducing the complexity of traditional base station setups. Its optimised design for indoor use in air-conditioned environments eliminates the need for weatherproofing, while self-recovery software and diagnostics ensure high system availability with minimal support requirements. It is the ideal device for ports seeking a scalable and stable foundation for AIS-based operations.

Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design

Core advantages

  1. Desktop-sized AIS solution—simplifies traditional base station complexity.
  2. Optimized for indoor use—no weatherproofing or external enclosures needed.
  3. Self-recovery software and real-time diagnostics reduce system downtime.
  4. Ideal for scalable AIS network deployments in smart port operations.
  5. Minimal support required—high availability with low operational burden.
  6. Stable foundation for AIS-based monitoring, planning, and traffic control.

Technical specification

Category

Specification

Details
Main features
 Power Supply Range AC 220V / DC 12V (adjustible)
Operating Frequency 156.025–162.025 MHz
Frequency Error ±0.3kHz
Receiving Sensitivity ≤ -107dBm
Average Power Consumption ≤1W(continuous operation)
Transmit Power Default ≤6W, ≤12.5W(adjustible)
Interface Types RS232, RJ45 Ethernet port
Data Format NMEA 0183
Transmission Rate 115200 bps
Message Format VDM
Virtual Beacon Functionality Expandable, supports up to 8 virtual beacons
4G/5G Wireless Communication Expandable
Operating Temperature -30°C to +65°C
Dimensions 483mm × 409mm × 135.5mm
Weight ≤ 5kg

Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design

Application

  • Port Operation Centers
  • VTS Centers (Vessel Traffic Service)
  • Maritime Authority Control Rooms
  • Coastal Monitoring Stations
  • Harbor AIS Infrastructure Nodes
  • Research & Test Environments

FAQ

1, Is this a desktop-sized AIS station?
Yes. Compact design simplifies indoor AIS infrastructure.

2, Does it need weatherproofing?
No. Built for clean indoor environments — no shielding required.

3, Is system reliability ensured?
Yes. Includes diagnostics and self-recovery for high uptime.

4, What type of users is it for?
Perfect for ports seeking scalable, low-maintenance AIS systems.

5, How is it maintained?
Minimal support needed — built for automated operation.

6, Shipping and size details?
Weight ≤5 kg, product size is 483mm×409mm×135.5 mm. Ships in 3–10 days.

Modern Indoor AIS AtoN Base Station RS232 4G 5G Optional Plug And Play Design
