Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights
Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights
Specifications
Brand Name :
Dexon
Model Number :
DX082FA
Certification :
CE、RoHS、ISO、IEC、IALA、IMO
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Interface Types :
RS232, RS485, RJ45
Materia :
FRP (Fiberglass Reinforced Plastic)
Message :
Message 21, 6, 8, 14, Supports Multiple Formats
AIS Transmission Distance :
20NM~25NM
Operating Temperature :
-30°C to +60°C
Protection Level :
IP68
Certifications :
CE, RoHS, ISO,IEC, IALA
applications :
Coastal Ports & Harbors Offshore Oil & Gas Platforms Inland Waterways & Rivers Fixed Navigation Aids (Buoys, Beacons, Light Towers) National Maritime Surveillance Systems Remote & Solar-Powered Marine Stations
Description

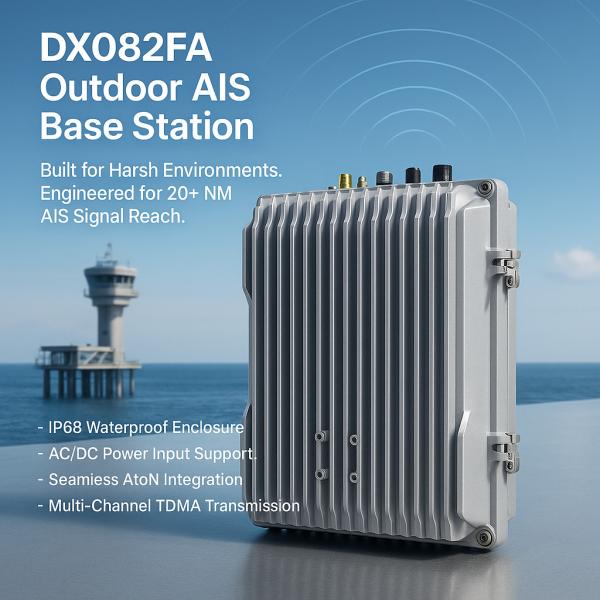

Durable Marine AIS AtoN Base Station for Ports & Platforms

Built for Harsh Environments

Designed for seamless integration with Dexonmarine’s AIS AtoN systems, the DX082FA forms a fully compatible solution that meets IALA and IMO standards. It supports multiple AIS message formats and includes options for 4G/5G connectivity, an Ethernet interface and solar power and battery operation. These features ensure easy scalability, centralised monitoring and real-time data flow for inland and offshore navigation safety systems.

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights

Core advantages

  1. Seamlessly integrates with Dexonmarine AIS AtoN systems for zero-configuration deployment.
  2. Supports AIS message formats 6, 8, 14 and 21, and is compliant with IALA and IMO standards.
  3. Modular design with optional 4G/5G, Ethernet, solar power and battery backup.
  4. IP68-rated, corrosion-resistant FRP housing is engineered for all-weather marine environments.
  5. Enables centralised monitoring and real-time data flow for coastal and offshore safety.
  6. Ideal for scalable deployments across ports, river channels and offshore platforms.

Technical specification

Category

Specification

Details
Main features
 Power Supply Range AC 220V or DC 8~32V
Operating Frequency 161.975MHz, 162.025MHz
Frequency Error ±0.3kHz
Channel Bandwidth 25KHz
Receiving Sensitivity ≤-107dBm
Transmit Power Default ≤6W, ≤12.5W(adjustible)
Average Power Consumption ≤1W(continuous operation)
Interface Types RS232, RS485, RJ45
Modulation Rate 9600bps
Data Format NMEA 0183
Message Format VDM
Main/Backup Mode Supported
Operating Temperature -30°C to +60°C
Virtual Beacons Supports up to 8
Weight ≤8kg
Local Storage Expandable, supports up to 64GB

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights

Application

  • Coastal Ports & Harbors
  • Offshore Oil & Gas Platforms
  • Inland Waterways & Rivers
  • Fixed Navigation Aids (Buoys, Beacons, Light Towers)
  • National Maritime Surveillance Systems
  • Remote & Solar-Powered Marine Stations

FAQ

1, Is it easy to deploy with Dexonmarine systems?
Yes. Seamless plug-and-play integration with Dexonmarine AIS AtoN.

2, Which AIS messages are supported?
Fully supports messages 6, 8, 14, and 21 per IALA/IMO standards.

3, Is it suitable for harsh marine environments?
Yes. IP68-rated with corrosion-resistant FRP housing for all-weather use.

4, Can it support modular upgrades?
Absolutely. Options include 4G/5G, Ethernet, solar, and battery backup.

5, Is real-time remote monitoring possible?
Yes. Enables centralized control and live data flow for safety networks.

6, What are the weight and deployment use cases?
8 kg. Ideal for ports, rivers, and offshore platforms.

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights
