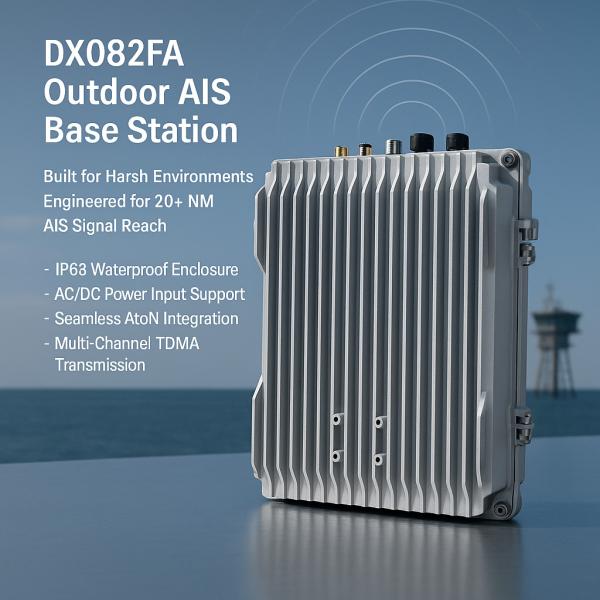

Fixed AIS Base Station IP68 Rated Long Range Marine Communication For Coastal Inland Waterways
Fixed AIS Base Station IP68 Rated Long Range Marine Communication For Coastal Inland Waterways
Specifications
Brand Name :
Dexon
Model Number :
DX082FA
Certification :
CE、RoHS、ISO、IEC、IALA、IMO
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Interface Types :
RS232, RS485, RJ45
Materia :
FRP (Fiberglass Reinforced Plastic)
Message :
Message 21, 6, 8, 14, Supports Multiple Formats
AIS Transmission Distance :
20NM~25NM
Operating Temperature :
-30°C to +60°C
Protection Level :
IP68
Certifications :
CE, RoHS, ISO,IEC, IALA
applications :
Coastal Ports & Harbors Offshore Oil & Gas Platforms Inland Waterways & Rivers Fixed Navigation Aids (Buoys, Beacons, Light Towers) National Maritime Surveillance Systems Remote & Solar-Powered Marine Stations
Description
IP68-rated, long-range marine communication for coastal and inland waterways,
provided by the fixed AIS base station

Designed for seamless integration with Dexonmarine’s AIS AtoN systems, the DX082FA forms a fully compatible solution that meets IALA and IMO standards. It supports multiple AIS message formats and includes options for 4G/5G connectivity, an Ethernet interface and solar power and battery operation. These features ensure easy scalability, centralised monitoring and real-time data flow for inland and offshore navigation safety systems.

Fixed AIS Base Station IP68 Rated Long Range Marine Communication For Coastal Inland Waterways

Core advantages

  1. Fully compatible with Dexonmarine AIS AtoN systems, offering seamless integration and zero configuration friction.
  2. Supports multiple AIS message formats(21, 6, 8, 14) and is customisable for IALA and IMO compliance.
  3. Optional 4G/5G, Ethernet, solar power and battery modules allow for flexible deployment.
  4. IP68-rated, waterproof housing is made of corrosion-resistant FRP and is built to withstand harsh marine conditions.
  5. Enables real-time data flow and centralised monitoring for inland and offshore navigation safety.
  6. Ideal for ports, river channels and offshore platforms and is engineered for scalable maritime networks.

Technical specification

Category

Specification

Details
Main features
 Power Supply Range AC 220V or DC 8~32V
Operating Frequency 161.975MHz, 162.025MHz
Frequency Error ±0.3kHz
Channel Bandwidth 25KHz
Receiving Sensitivity ≤-107dBm
Transmit Power Default ≤6W, ≤12.5W(adjustible)
Average Power Consumption ≤1W(continuous operation)
Interface Types RS232, RS485, RJ45
Modulation Rate 9600bps
Data Format NMEA 0183
Message Format VDM
Main/Backup Mode Supported
Operating Temperature -30°C to +60°C
Virtual Beacons Supports up to 8
Weight ≤8kg
Local Storage Expandable, supports up to 64GB

Fixed AIS Base Station IP68 Rated Long Range Marine Communication For Coastal Inland Waterways

Application

  • Coastal Ports & Harbors
  • Offshore Oil & Gas Platforms
  • Inland Waterways & Rivers
  • Fixed Navigation Aids (Buoys, Beacons, Light Towers)
  • National Maritime Surveillance Systems
  • Remote & Solar-Powered Marine Stations

FAQ

1, Is it compatible with Dexonmarine AIS AtoN systems?
Yes. Seamless plug-and-play integration — no extra setup needed.

2, What AIS messages are supported?
Preloaded with messages 21, 6, 8, and 14; IALA/IMO-ready.

3, What deployment options are available?
Supports 4G/5G, Ethernet, solar, and battery for flexible use.

4, Is the device waterproof and corrosion-resistant?
Yes. IP68-rated FRP housing — built for extreme marine conditions.

5, Can it support real-time remote monitoring?
Absolutely. Enables centralised data flow for inland and offshore safety.

6, What’s the weight and shipping info?
≤8 kg unit. Ships within 3–10 days worldwide.
