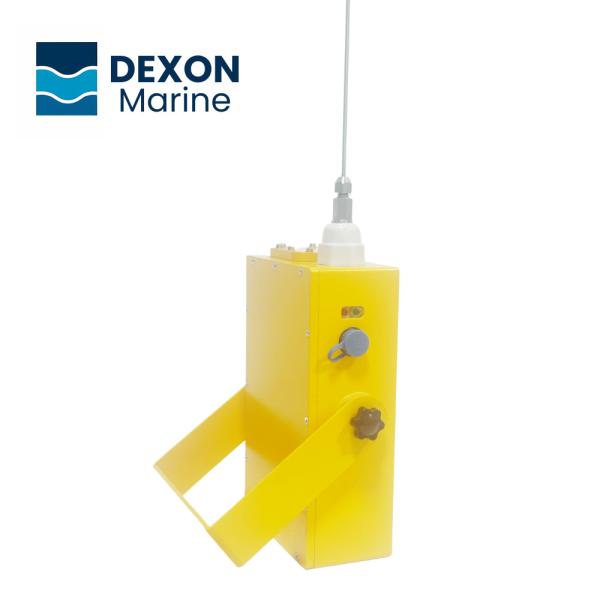

Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
Specifications
Brand Name :
Dexon
Model Number :
DX081PB
Certification :
CE、RoHS、ISO、IEC、IALA、IMO
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Lifespan :
15 Years
Materia :
FRP (Fiberglass Reinforced Plastic)
Message :
Message 21, 6, 8, 14, Supports Multiple Formats
AIS Transmission Distance :
20NM~25NM
Operating Temperature :
-35°C to +60°C
Protection Level :
IP68
Certifications :
CE, RoHS, ISO,IEC, IALA
applications :
Pre-Installation Testing Routine Field Maintenance AIS AtoN Demonstration & Training
Description

Field-Ready AIS Base Station – Lightweight Tool for Marine Engineers

The DX081PB is a compact, portable AIS base station designed for use by manufacturers, marine engineers and inspection teams. Designed for pre-installation testing and field maintenance, it facilitates the transmission and reception of AIS signals to ensure that navigation lights and beacons are functioning correctly and in compliance with regulations. Its rechargeable lithium battery provides up to 20 hours of continuous operation, and its small size makes it ideal for channel inspections, eliminating the need to approach each buoy or light by boat.

Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver

Core advantages

  1. Compact and lightweight design makes it ideal for engineers and mobile inspection teams.
  2. It enables pre-installation testing and live AIS communication validation.
  3. Supports both AIS transmission and reception for full device verification.
  4. Rechargeable lithium battery provides up to 20 hours of uninterrupted operation.
  5. Perfect for channel inspections, eliminating the need to board each buoy or light.
  6. Ensures that navigation aids meet compliance requirements before and after deployment.

Technical specification

Category

Specification

Details
Main features
 Operating Voltage DC 5.5–8.3V
Battery Capacity 77Wh (10.4Ah @ 7.4V)
Standby Time ≥20 hours continuous operation
Frequency Range 156.025MHz–162.025MHz
Air Transmission Rate 9600bps ±50ppm
Sensitivity ≤−110dBm
Modulation Mode GMSK/FSK
Interface RS232 Data Interface
Transmission Power ≤6W
Spurious Emission Suppression ≤−70dBc
Operating Temperature −35°C to +60°C
Dimensions 300mm × 150mm × 50mm
Weight ≤3kg

Drawings

Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver

Application

  • Pre-Installation Testing
  • Onsite Buoy & Beacon Inspection
  • Routine Field Maintenance
  • Temporary Deployment in Field Projects
  • AIS AtoN Demonstration & Training

FAQ

1, Is it portable and lightweight?
Yes. Weighs ≤3kg, fits easily in field kits.

2, What is it used for?
Validates AIS transmission/reception before and after AtoN deployment.

3, Is it suitable for mobile teams?
Ideal for engineers inspecting buoys and lights without boarding.

4, Does it support two-way AIS testing?
Yes. Sends and receives AIS signals for full verification.

5, How long does the battery last?
Up to 20 hours of operation on a single charge.

6, Can it be used during channel checks?
Perfect for in-field validation during channel inspections.

Lightweight Portable AIS Base Station For Testing Buoy & Beacon Signal Receiver
