Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
Specifications
Certification :
CE/LVD/EMC/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting

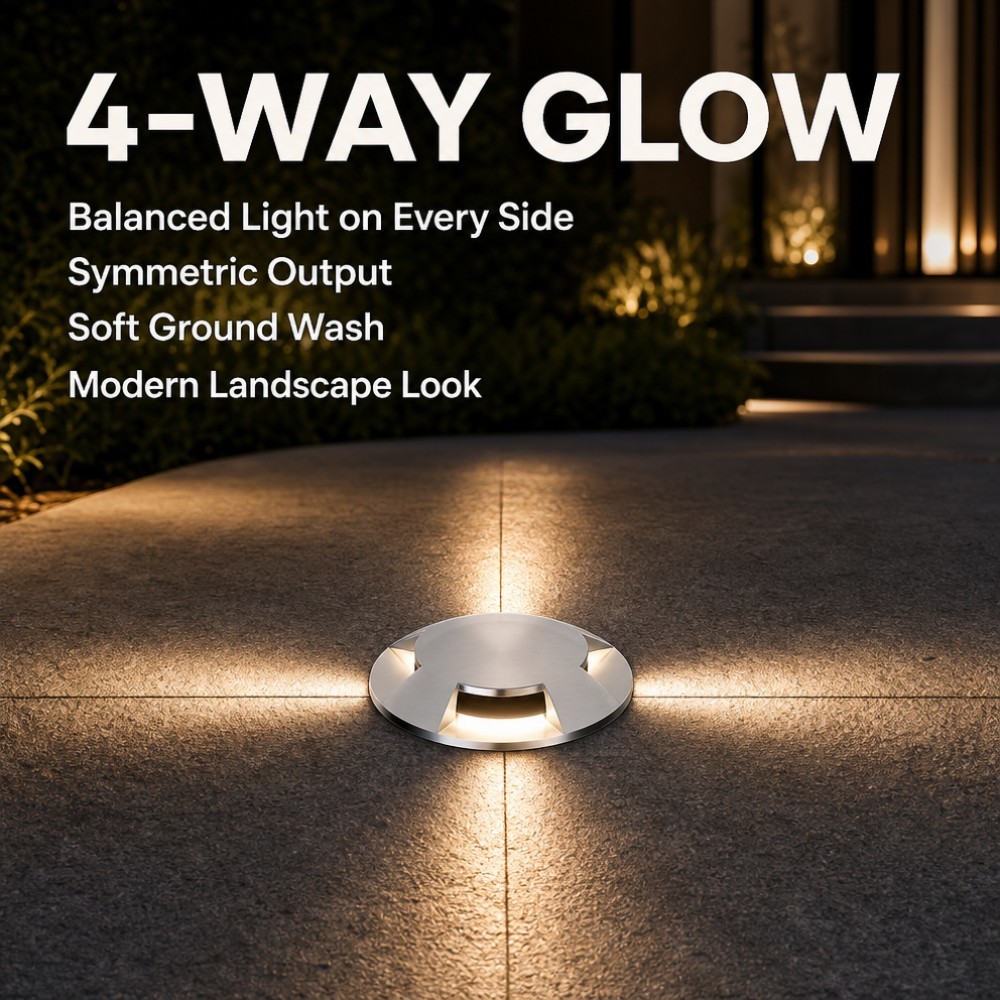

  • Quad-Aperture 360-Degree Lighting: Four symmetrical side emission windows cast balanced, low-glare lateral light rays in all directions across open grounds.

  • High-Lumen 12W CREE COB Engine: Equipped with an efficient CXA1507 COB LED delivering powerful, consistent illumination for outdoor commercial landscaping.

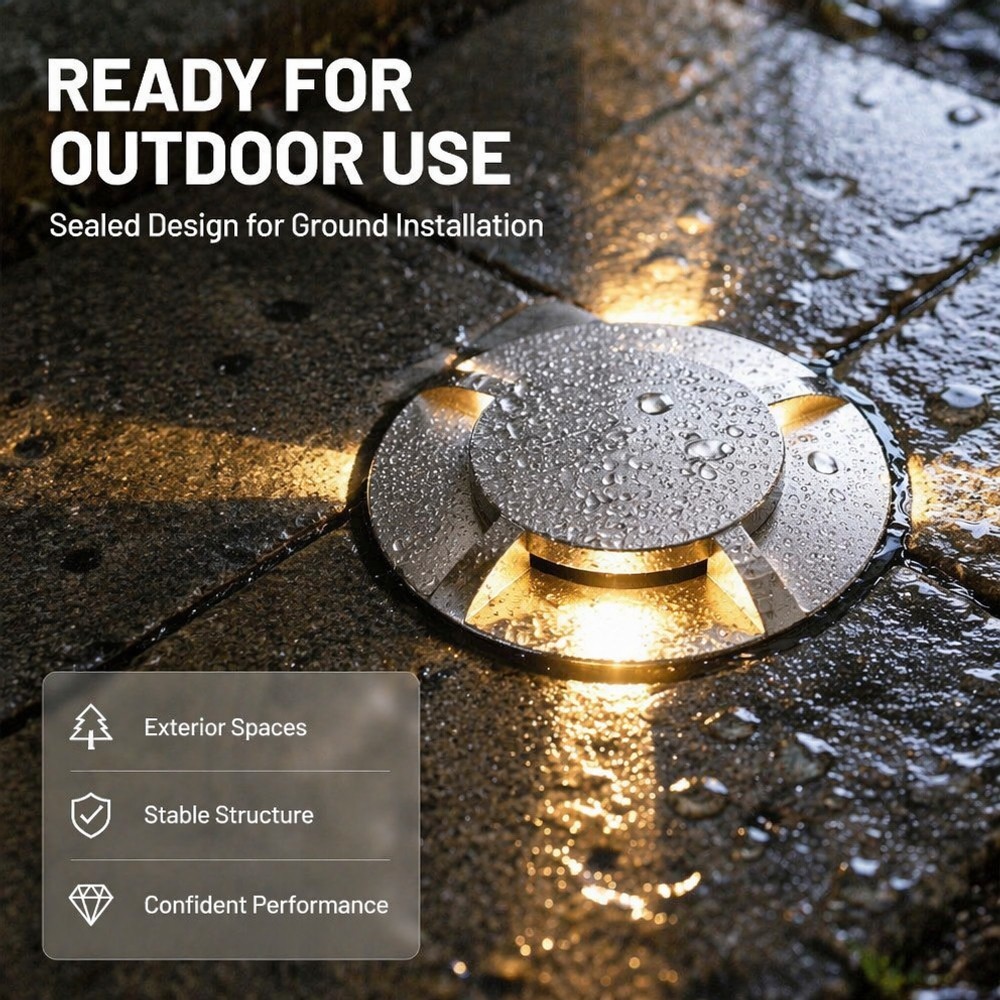

  • IP68 Marine-Grade Durability: Fully sealed aluminum alloy housing with a heavy-duty stainless steel top cap engineered to resist drive-over loads, water immersion, and weather exposure.

  • Anti-Glare Architectural Safety: Shielded top dome keeps the light source hidden, casting illumination purely along ground level to ensure pedestrian safety without direct glare.

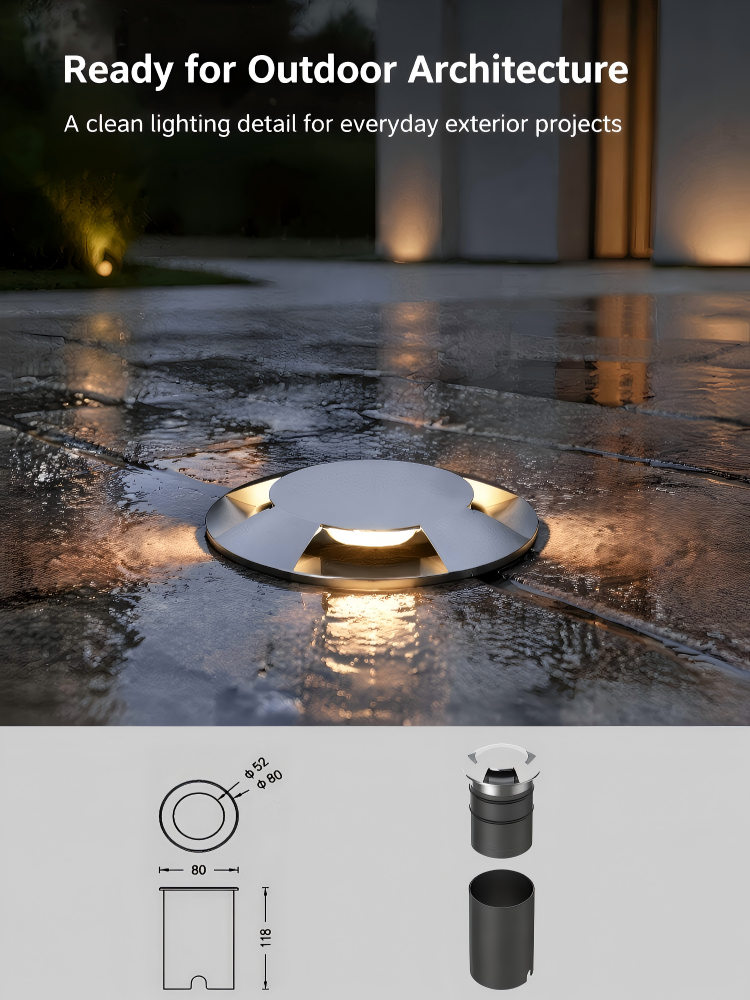

  • Commercial Project Ready: Standard D80x118mm profile (driver compartment D53x36mm) offering versatile optical spreads (10 Deg to 60 Deg) and flexible voltage (AC85-265V / DC24V).

Product Specifications

  • Model No. MA80-4 IP Rating IP68
    Power 10~12W Housing Material Aluminum Alloy
    Light Color 2000-6500K Driver Compartment Dimensions D53*36mm
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°/ 60° Cover Stainless Steel+Tempered Glass
    LED Brand & Quantity CXA1507-13.8W Luminous Efficacy 80lm/W
    Control Mode ON/OFF CRI Ra80 / Ra90
    Voltage AC85-265V/DC24V Fixture Dimensions ф80*118mm

  • Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting

  • Quad Emission Outdoor Ground Spotlights 12W CREE COB 4 Aperture Driveway Lighting
