Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
Specifications
Certification :
CE/LVD/EMC/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

  • Bi-Directional Side Emission: Dual opposite window design projects two symmetrical, low-glare lateral beams across ground surfaces to define pathway edges and borders.

  • 12W CREE COB Performance Engine: Powered by high-efficiency CXA1507 COB LEDs delivering stable, long-lasting lumen output for outdoor commercial applications.

  • IP68 Marine-Grade Construction: Fully sealed aluminum body with a heavy-duty stainless steel top cap built to resist drive-over loads, heavy rainfall, and soil corrosion.

  • Glare-Free Structural Safety: Concealed light source prevents upward glare, ensuring maximum visual comfort and safety for pedestrian walkways and driveway perimeters.

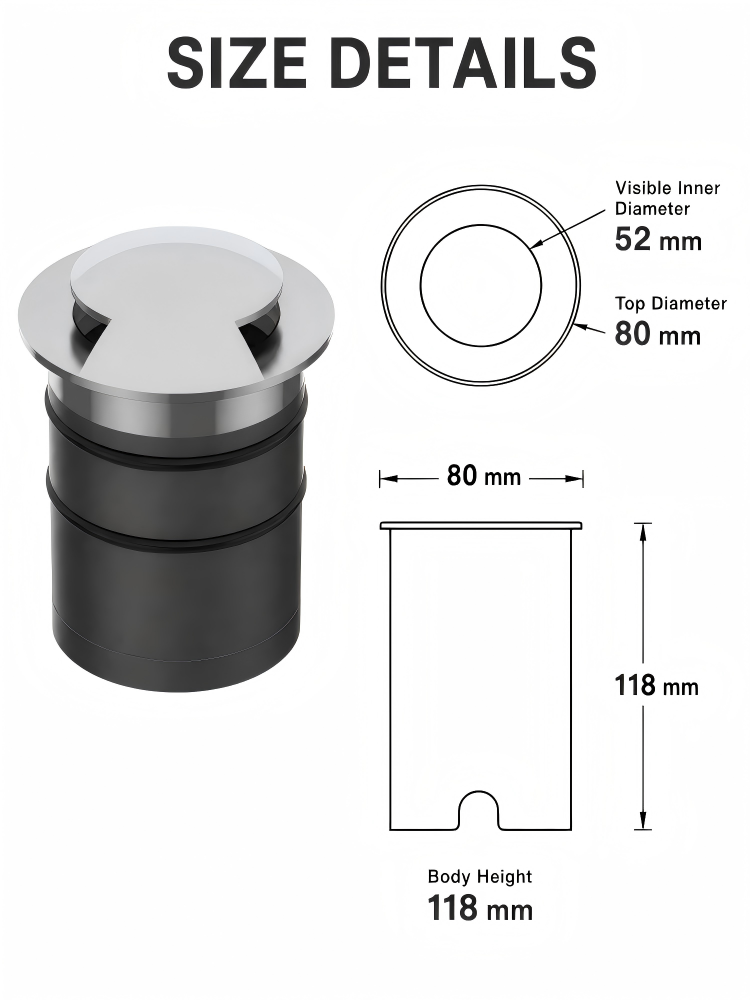

  • Engineered Installation Profile: Compact D80x118mm dimensions with driver compartment D53x36mm, offering versatile optical angles (10 Deg to 60 Deg) and flexible voltage (AC85-265V / DC24V).

Product Specifications


  • Model No. MA80-2
    		IP Rating IP68
    Power 10~12W
    		Housing Material Aluminum Alloy
    Light Color 2000-6500K
    		Driver Compartment Dimensions D53*36mm
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°/ 60°
    		Cover Stainless Steel+Tempered Glass
    LED Brand & Quantity CXA1507-13.8W
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF
    		CRI Ra80 / Ra90
    Voltage AC85-265V/DC24V
    		Fixture Dimensions ф80*118mm


  • Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2Bi Directional Ground Indicator 12W Dual Emission Recessed Step Light IP68 Waterproof - MA80-2
