Specifications
Certification :
CE/LVD/EMC/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

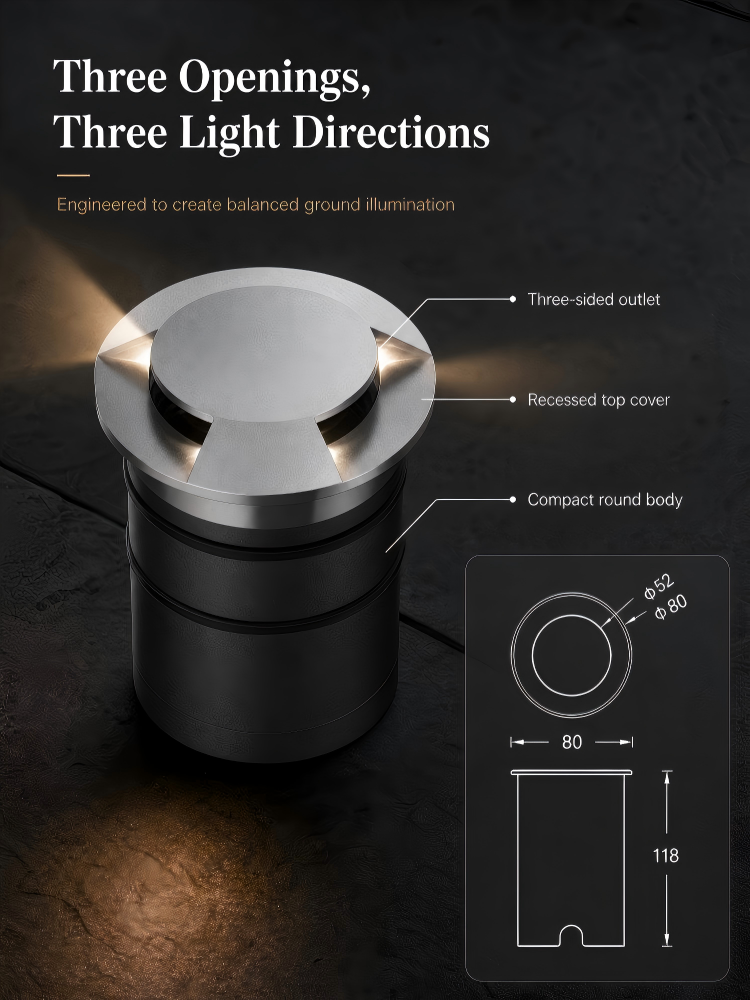

  • Tri-Window 270-Degree Coverage: Three evenly spaced side emission apertures project balanced, low-glare light across complex ground intersections and garden paths.

  • 12W CREE COB Light Source: High-efficiency CXA1507 COB LED provides stable, long-lasting lumen output engineered for commercial landscape environments.

  • IP68 Marine-Grade Sealing: Fully encapsulated aluminum body with a heavy-duty stainless steel top cap designed for drive-over durability and heavy weather resistance.

  • Low-Profile Anti-Glare Design: Concealed optical system directs light downward and outward, ensuring maximum foot-traffic safety without upward glare.

  • Engineering Installation Ready: Compact D80x118mm fixture profile (driver compartment D53x36mm) with multiple optics (10 Deg to 60 Deg) and universal voltage (AC85-265V / DC24V).

Product Specifications


  • Model No. MA80-3
    		IP Rating IP68
    Power 10~12W
    		Housing Material Aluminum Alloy
    Light Color 2000-6500K
    		Driver Compartment Dimensions D53*36mm
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°/ 60°
    		Cover Stainless Steel+Tempered Glass
    LED Brand & Quantity CXA1507-13.8W
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF
    		CRI Ra80 / Ra90
    Voltage AC85-265V/DC24V
    		Fixture Dimensions ф80*118mm
