Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Place of Origin :
China
Production Capacity :
Full production lines, support large project orders
Supply Ability :
10000 Pieces Per Month
Sample Service :
Samples offered for quality evaluation
Brand Name :
Crane
Design Service :
Offer lighting, optical & structural design for projects
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description
  • This MC220 36W heavy‑duty LED inground light delivers powerful ground‑embedded lighting performance, supporting universal AC85‑265V and safety low‑voltage DC24V input. It provides 304 and 316 stainless steel face‑cover options to fit diverse anti‑corrosion project requirements.

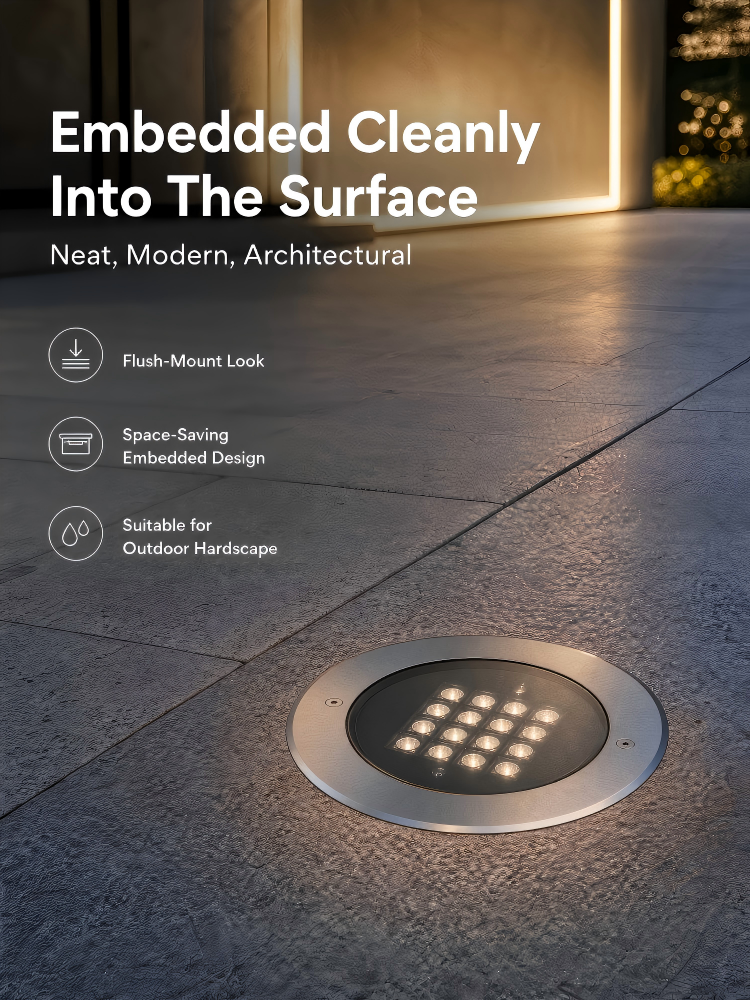

    Designed for flush ground mounting, this fixture sits nearly level with pavement without spoiling landscape visual effect. Robust stainless‑steel cover withstands heavy pedestrian loads, while multi‑layer sealing structure blocks underground water, silt and debris intrusion.

    High‑density LED modules match with professional optical lenses to produce intensive long‑throw beam for high‑rise building facades and large‑scale landmark lighting. Optimized heat‑dissipation cavity lowers operating temperature and extends LED service lifespan.

    Suited for large municipal squares, monumental buildings, waterfront scenic spots and premium commercial complexes. Choose 316 stainless‑steel cover for coastal projects exposed to salt mist and humid corrosive surroundings.

  • Product Specifications

  • Voltage AC85-265V / DC24V 　 IP Rating IP68
    Power 36W Housing Material Aluminum Alloy

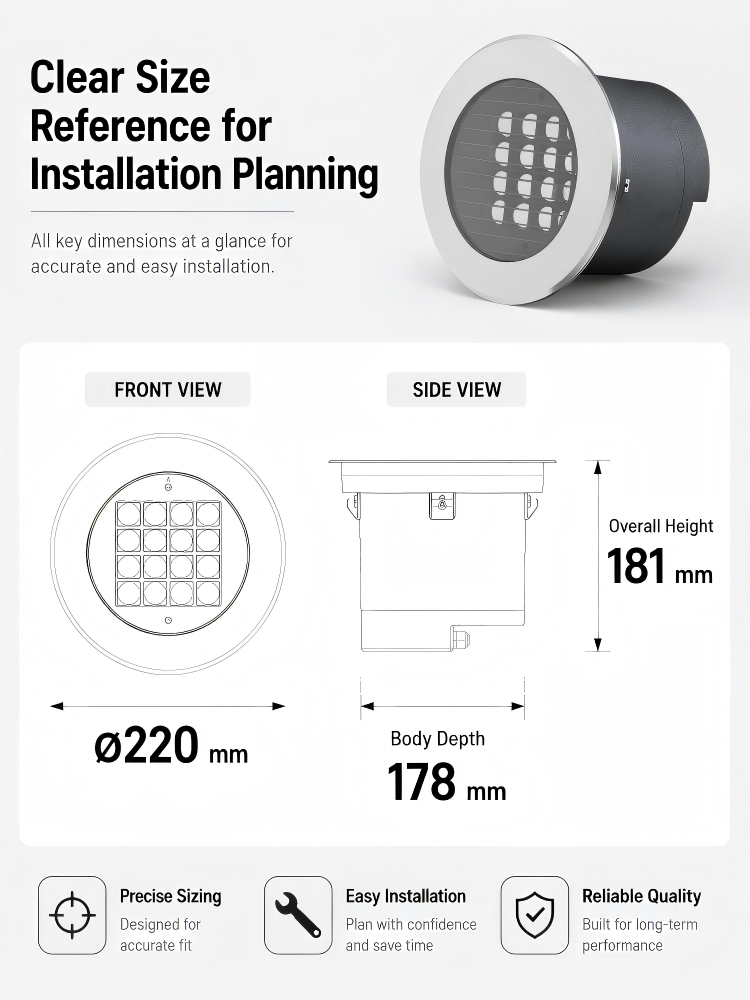

    Light Color 2000-6500K Dimensions Φ220*H181
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45° Cover Stainless Steel+Tempered Glass

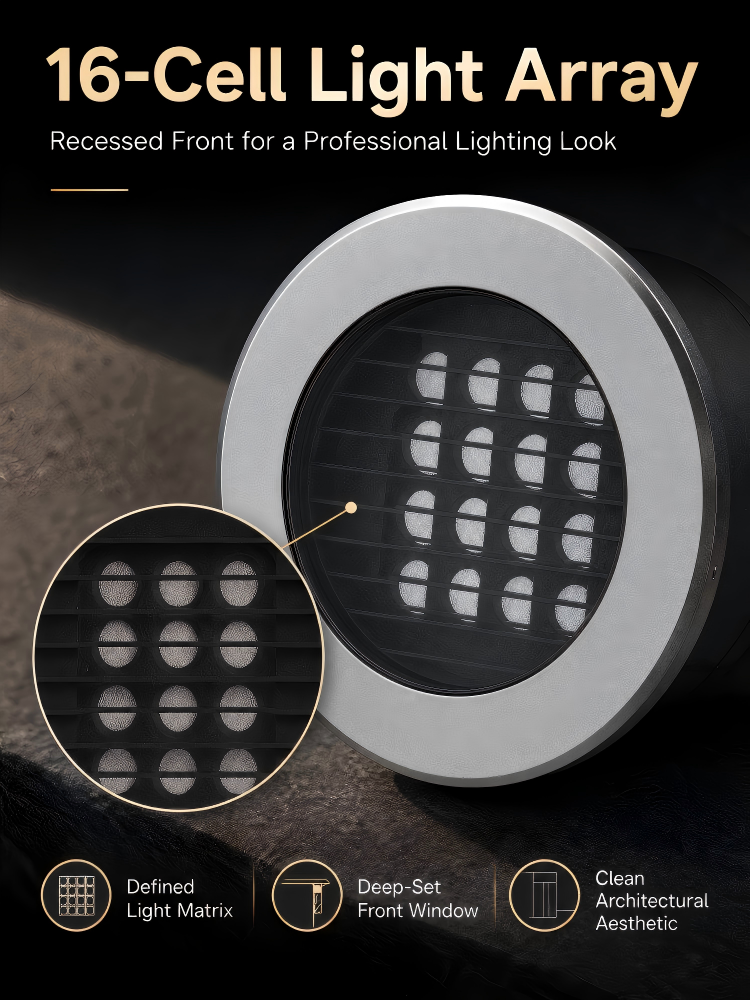

    LED Brand & Quantity 16pcs OSRAM LEDs Luminous Efficacy 80lm/W
    Control Mode ON/OFF CRI Ra80 / Ra90


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    MC220 Φ220*H181 AC85-265V / DC24V 36W Single Color ON/OFF

    Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground LampDimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
  • Dimmable LED Underground Light IP68 Waterproof Outdoor 36W 304 Stainless Steel 0-10V Dimming Garden Buried Inground Lamp
