Specifications
Certification :
CE/LVD/EMC/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
5000 pcs/month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing Full production lines, support large project orders
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3-5 years warranty under normal use
Description

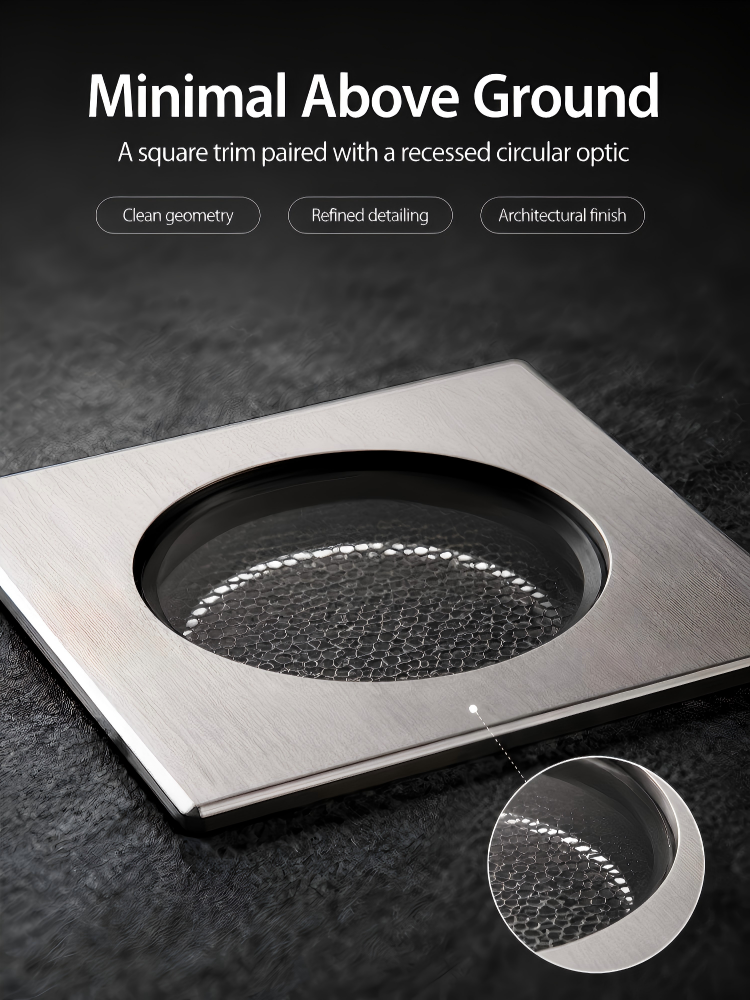

Modern Square Hardscape Trim: Brushed 304 stainless steel square bezel aligns perfectly with square stone pavers, outdoor tiles, concrete pathways, and decking.

High-Output 24W COB Illumination: Powered by high-performance CXA1816 COB LEDs to deliver bright, long-throw uplighting for tall architectural facades and columns.

Integrated Honeycomb Anti-Glare Filter: Deep recessed optical design paired with a honeycomb mesh lens effectively controls direct glare and improves visual comfort in high-traffic zones.

IP68 Marine-Grade & IK08 Impact Protection: Built with a heavy-duty aluminum body, 8mm thick tempered glass, and weather-resistant silicone sealing to resist submersion, pressure, and impact.

Commercial Engineering Fit: Standard D120x151mm profile (cutout dimension D114x180mm) offering multiple optical angles (15 Deg, 24 Deg, 36 Deg, 50 Deg, 60 Deg) and universal voltage (AC85-265V / DC24V).


Product Specifications


Model No. MA120(Square)
IP Rating IP68
Power 18~24W
Housing Material Aluminum Alloy
Light Color 2000-6500K
Driver Compartment Dimensions D92*46mm
Beam Angle 10° / 15° / 20° / 25° / 30° / 45°/ 60°
Cover Stainless Steel+Tempered Glass
LED Brand & Quantity CXA1816-33.3W
Luminous Efficacy 80lm/W
Control Mode ON/OFF
CRI Ra80 / Ra90
Voltage AC85-265V/DC24V
Fixture Dimensions ф120*1351mm
