Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Square LED Pixel Point Light 1.5W DC24V DMX512 RGB RGBW 44mm For Commercial Building Facade Display
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Production Capacity :
Full production lines, support large project orders
Place of Origin :
CHINA
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
10000PCS / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
CRANE
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1PCS
Sample Service :
Samples offered for quality evaluation
Description

This high‑power square LED pixel point light has dimension 44*44*13mm. The power rating is 1.5W for single‑color & RGB and 1.8W for RGBW, producing bright, well‑defined square pixels for large‑area media‑facade projects. DC24V and 5‑wire DMX512 support animation and video playback on outer building surfaces.

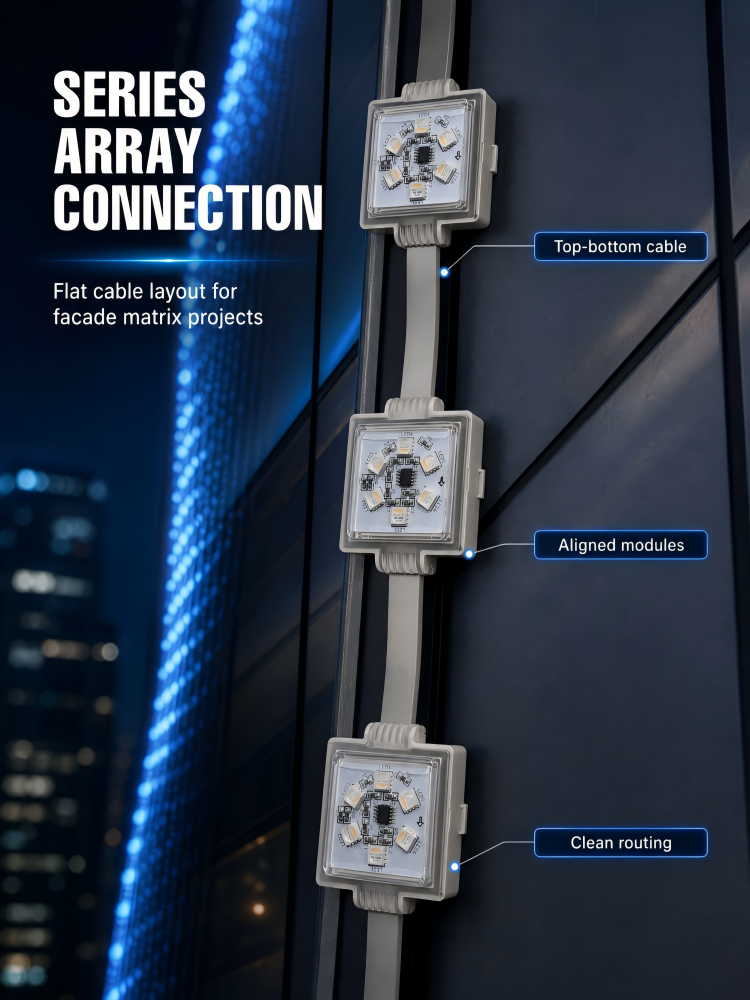

It works with aluminum channel L1000*W51*H30mm and snap clips for stable mass installation in commercial sites. Larger front face ensures long‑distance pixel visibility, while 13‑mm slim height maintains tidy appearance in daytime.

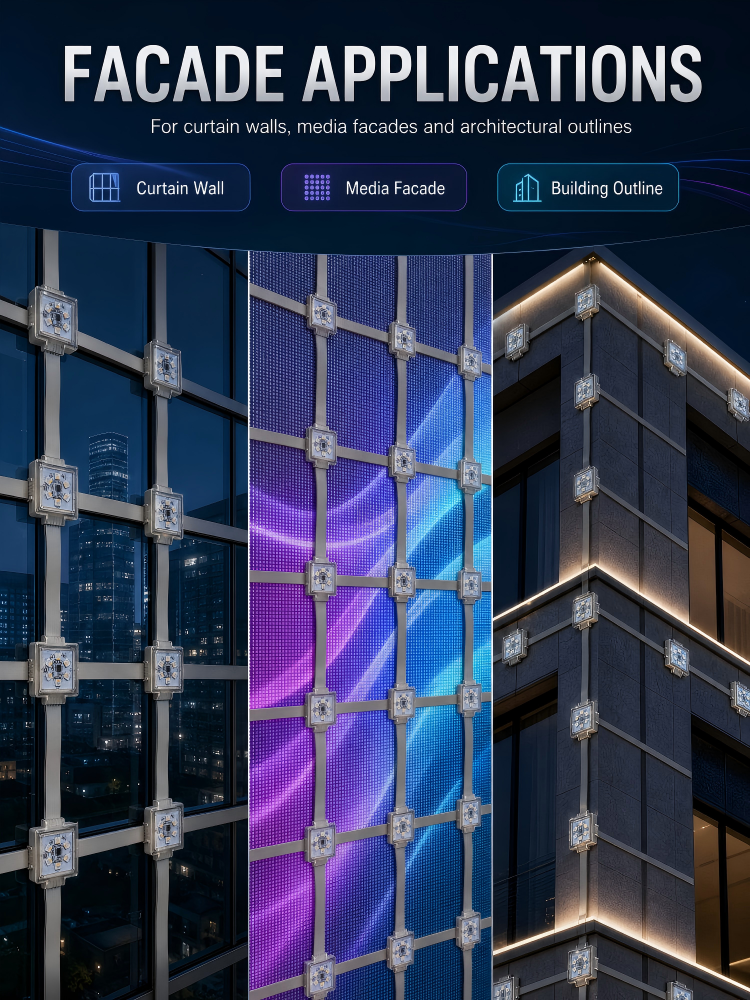

Single‑color, RGB and RGBW options cover static accent lighting to full‑motion media‑wall playback. Specially developed for shopping‑mall exteriors, hotel media walls and large public buildings requiring high‑brightness square dot arrays.


Product Specification

Voltage DC 24V IP Rating IP65
Power 1.5W / 1.8W Dimensions L44*W44*H13mm
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC
LED Brand & Quantity 6 PCS LED Luminous Flux 125LM
Control Mode DMX512 / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-FD6-M1-C1
 L44*W44*H13mm DC24V 1.5W Monochrome ON/OFF
CDL-FD6-M1-D3
 L44*W44*H13mm DC24V 1.5W RGB DMX512
CDL-FD6-M1-D4
 L44*W44*H13mm DC24V 1.8W RGBW DMX512
