High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
CHINA
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Supply Ability :
10000PCS / MONTH
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Design Service :
Offer lighting, optical & structural design for projects
MOQ :
1PCS
Production Capacity :
Full production lines, support large project orders
Description

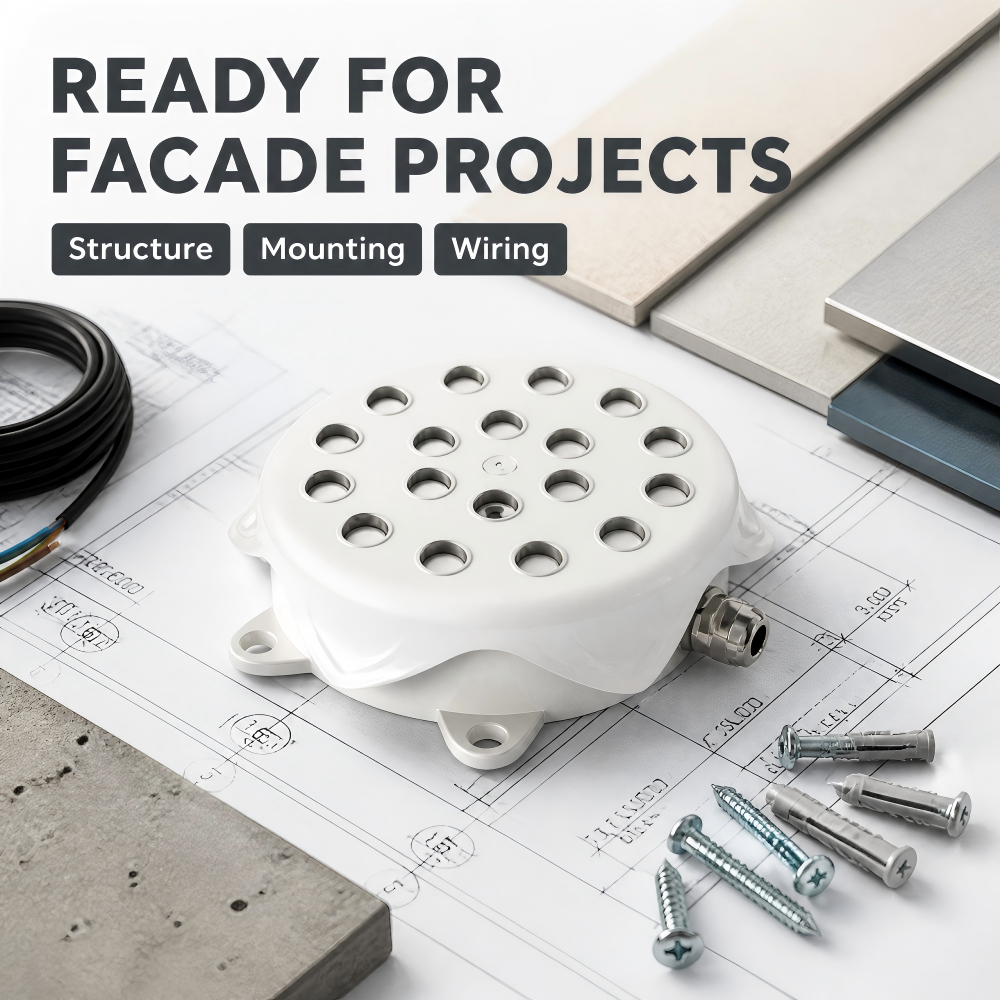

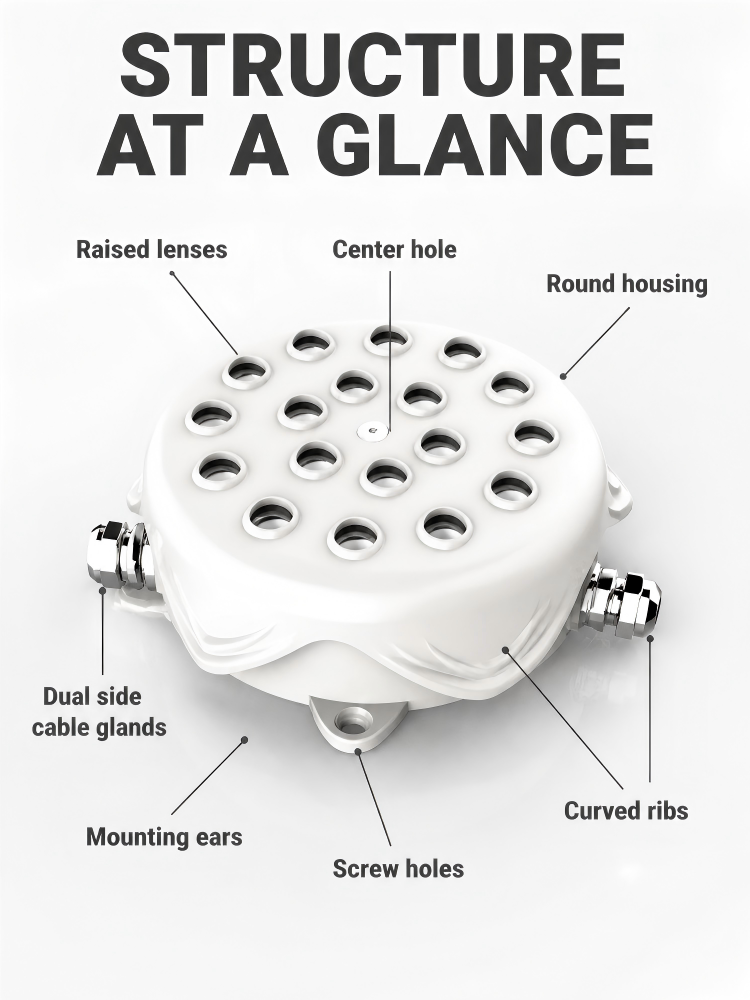

Mo‑Lian III high‑brightness round pixel point light carries 18 LED chips running at 5W rated power, delivering strong luminous output designed for long‑distance viewing large‑size media‑facade display. The Φ123mm large‑diameter circular body presents prominent pixel visual effect on high‑rise building outer walls.


Complete IP65 outdoor waterproof performance guarantees reliable working state under ‑20℃~45℃ ambient temperature. Long‑life LED module exceeds 20000 working hours, decreasing component replacement risk for super‑large landscape engineering orders.


It supports standard DMX512 programmable addressing control and regular ON‑OFF switch control. Rich color gamut covers 1800K‑6500K fixed white tones and full R G B W RGB RGBW multi‑color choices for complex animation design.

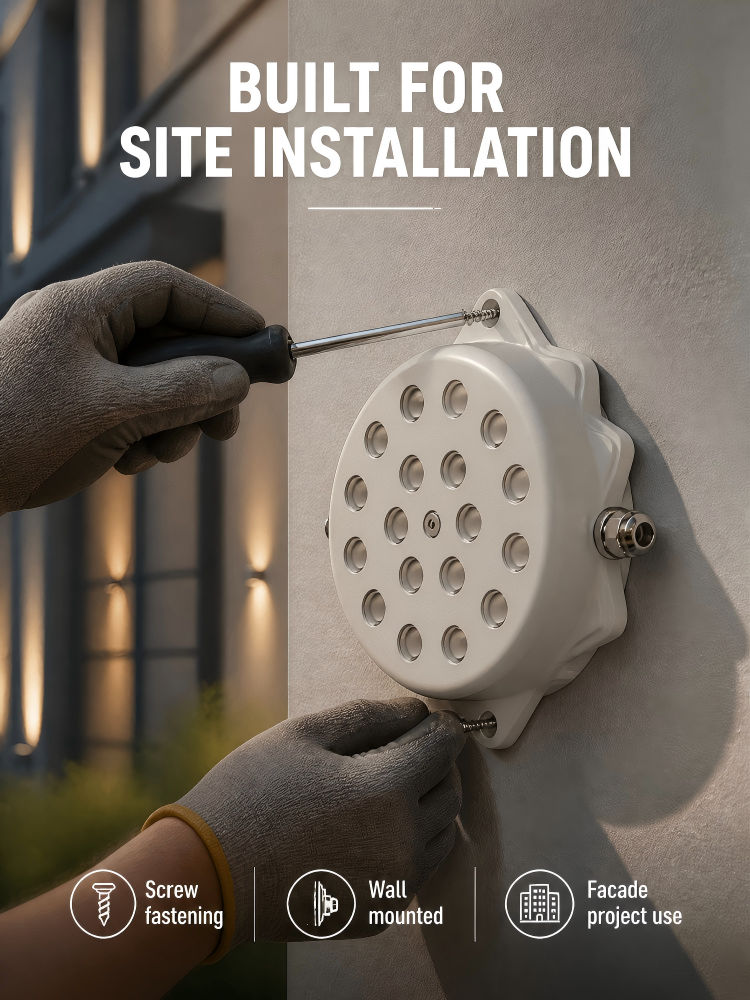

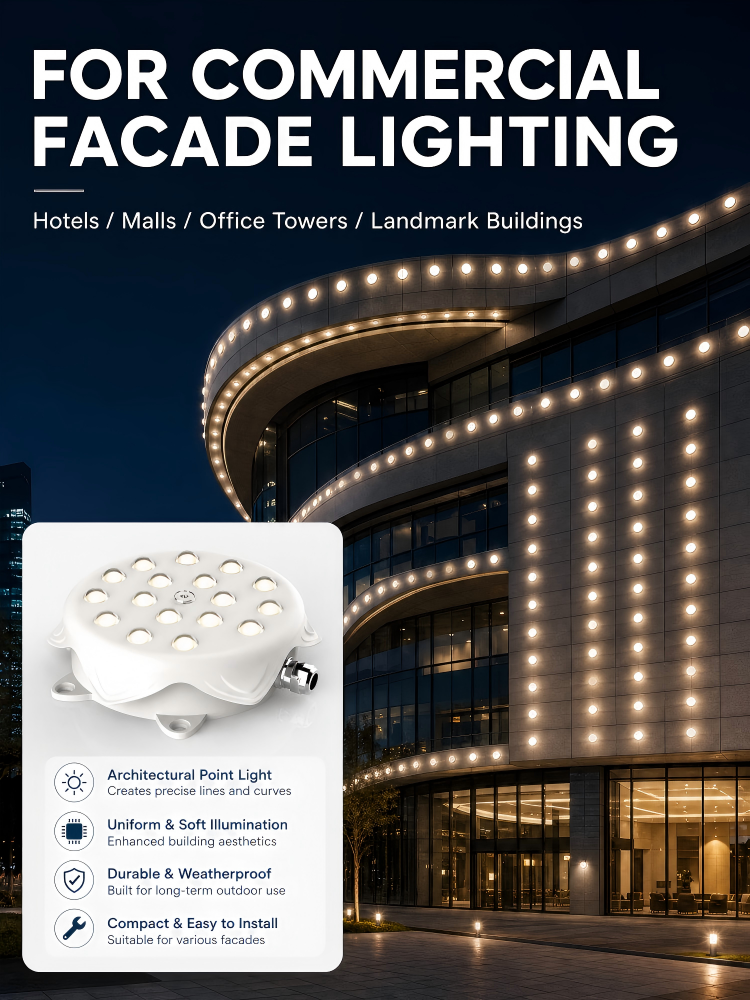

0.4KG single‑unit weight fits qualified curtain‑wall bearing requirements. Suitable for high‑rise building media screens, large commercial complex dynamic facades, city landmark lighting projects and theme park huge‑area pixel dot decoration.

Product Specification

Voltage DC24V IP Rating IP65
Power 5W Dimensions Φ123*H34MM
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover Aluminum + PC
LED Brand & Quantity 18 PCS LEDs Luminous Flux 400LM
Control Mode DMX512 / ON/OFF CRI Ra80

Available Models

Model No. Size Voltage Power Light Source Control Mode
CML-ML18-M1-C1
 Φ123*H34mm DC24V 5W Monochrome ON/OFF
CML-ML18-M1-D4
 Φ123*H34mm DC24V 5W RGBW DMX512
CML-ML18-M1-D3
 Φ123*H34mm DC24V 5W RGB DMX512
CML-ML18-M1-T3
 Φ123*H34mm DC24V 5W RGB TTL Signal

High Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide BeamHigh Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide BeamHigh Brightness Round LED Pixel Lights 5W 18LEDs DC24V DMX512 IP65 120 Degree Wide Beam
