Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
CHINA
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
10000PCS / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Production Capacity :
Full production lines, support large project orders
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1PCS
Sample Service :
Samples offered for quality evaluation
Description

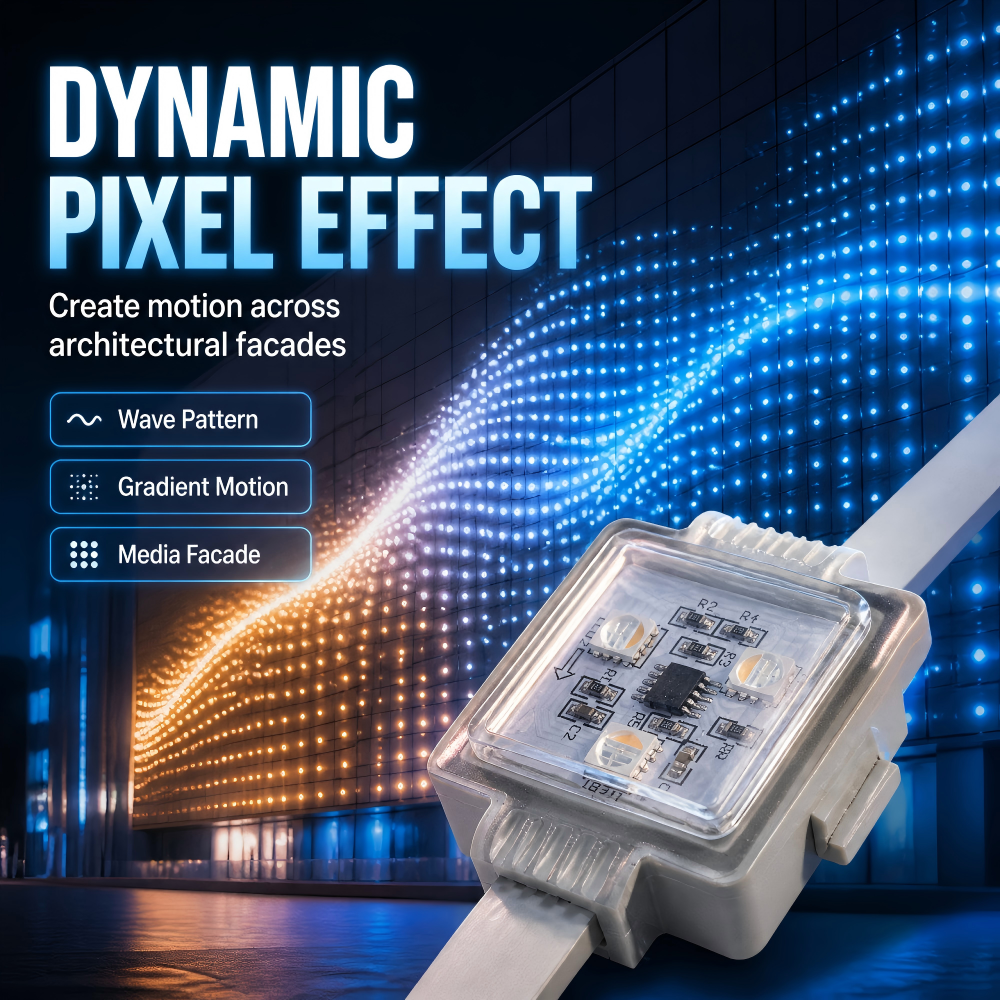

This flat‑profile square LED pixel point light comes in L38*W38*H13mm dimensions. Its rated power is 0.75W for single‑color & RGB and 0.9W for RGBW. Clean square geometry matches modern architectural styles, with DC12V power and 5‑wire DMX512 addressable signal for dynamic lighting scenes.

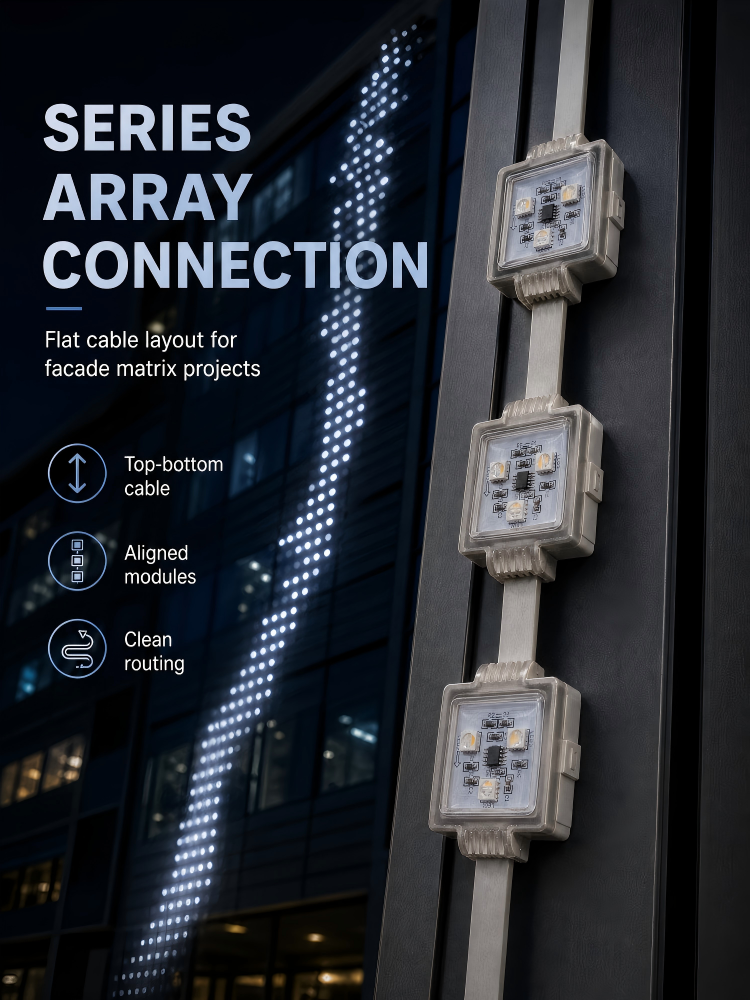

Supporting aluminum track L1000*W45.5*H30mm and snap clips for easy linear installation. Only 13‑mm thickness reduces outward protrusion on wall and ceiling surfaces, generating sharp‑edged pixel spots for grid‑style media‑facade dot matrix.

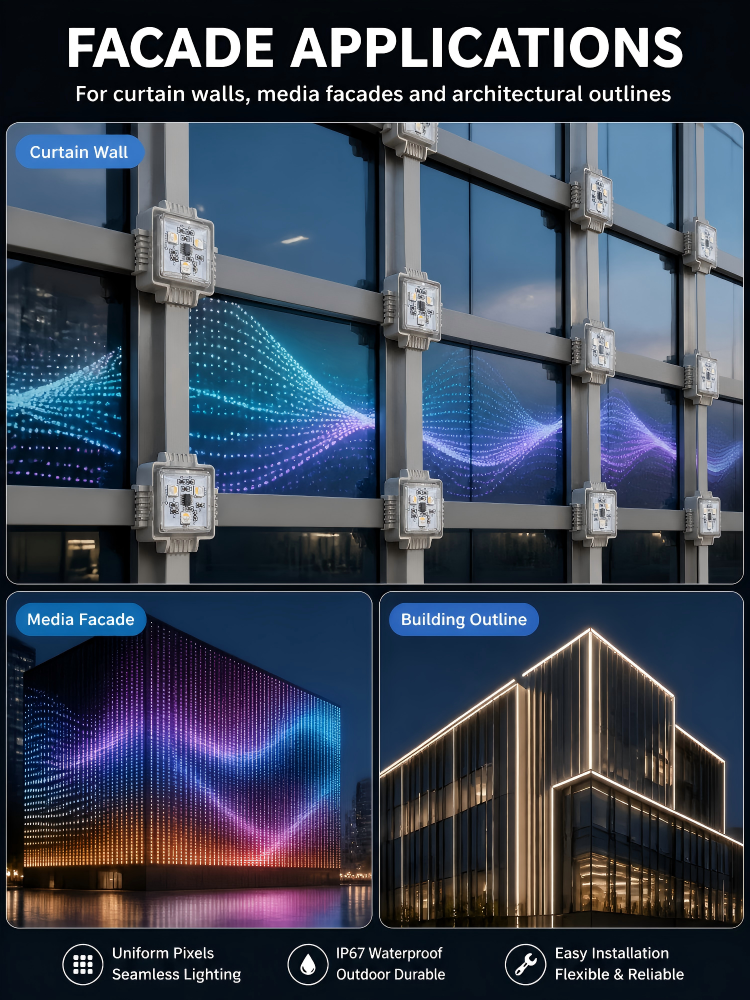

Single‑color, RGB 3‑in‑1 and RGBW 4‑in‑1 are selectable for static accent lighting and programmable dynamic media display. Frequently applied for commercial building facades, hotel interiors and exhibition‑hall grid lighting projects.

Product Specification

Voltage DC 12V IP Rating IP65
Power 0.75W / 0.9W Dimensions L38*W38*H13mm
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC
LED Brand & Quantity 3 PCS LED Luminous Flux 65LM
Control Mode DMX512 / ON/OFF CRI Ra80

Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-FD3-M1-C1
 L38*W38*H13mm DC12V 0.75W Monochrome ON/OFF
CDL-FD3-M1-D3
 L38*W38*H13mm DC12V 0.75W RGB DMX512
CDL-FD3-M1-D4
 L38*W38*H13mm DC12V 0.9W RGBW DMX512

Square Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade LightingSquare Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade LightingSquare Flat LED Pixel Lights 0.75W DC12V DMX512 RGB RGBW For Architectural Facade Lighting
