Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Linear Bar LED Pixel Point Light 0.75W DC12V DMX512 RGB RGBW 65mm Long With Channel For Wall Grazing Outline
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Production Capacity :
Full production lines, support large project orders
Supply Ability :
10000PCS / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Place of Origin :
CHINA
Design Service :
Offer lighting, optical & structural design for projects
Brand Name :
CRANE
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1PCS
Sample Service :
Samples offered for quality evaluation
Description

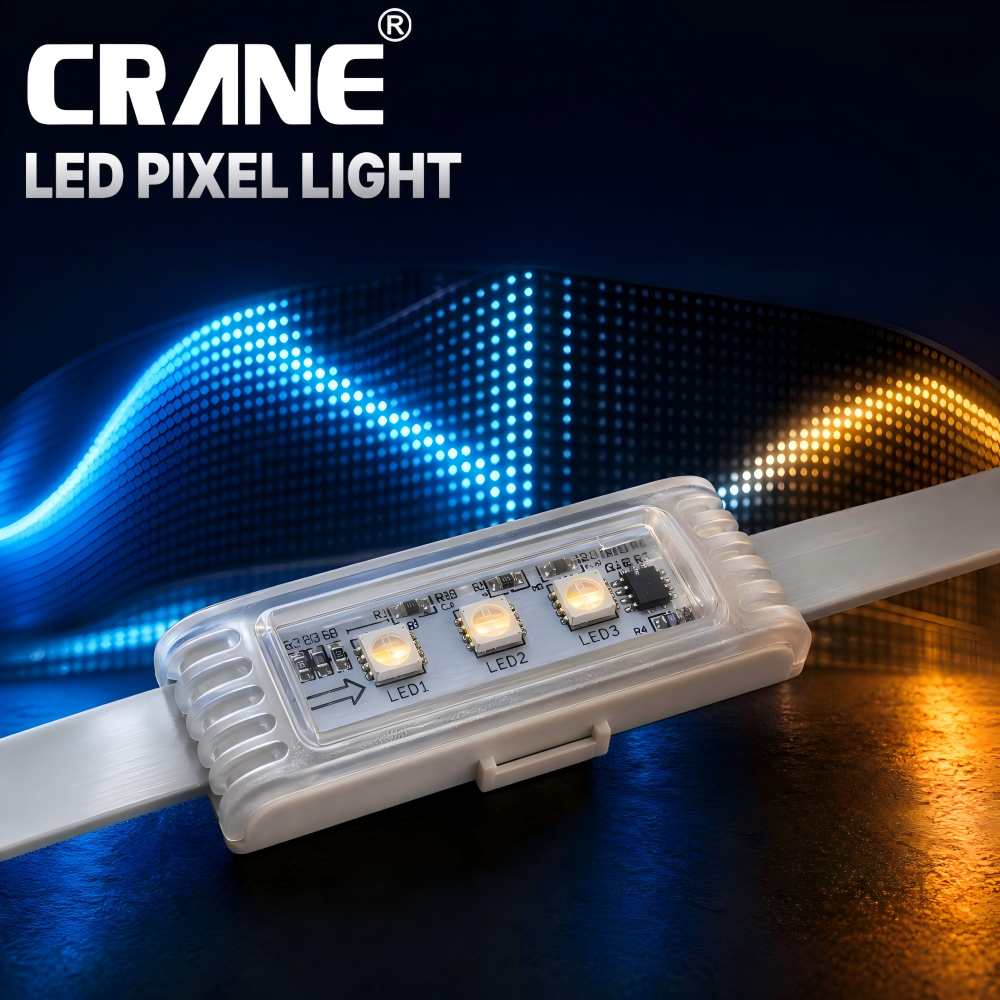

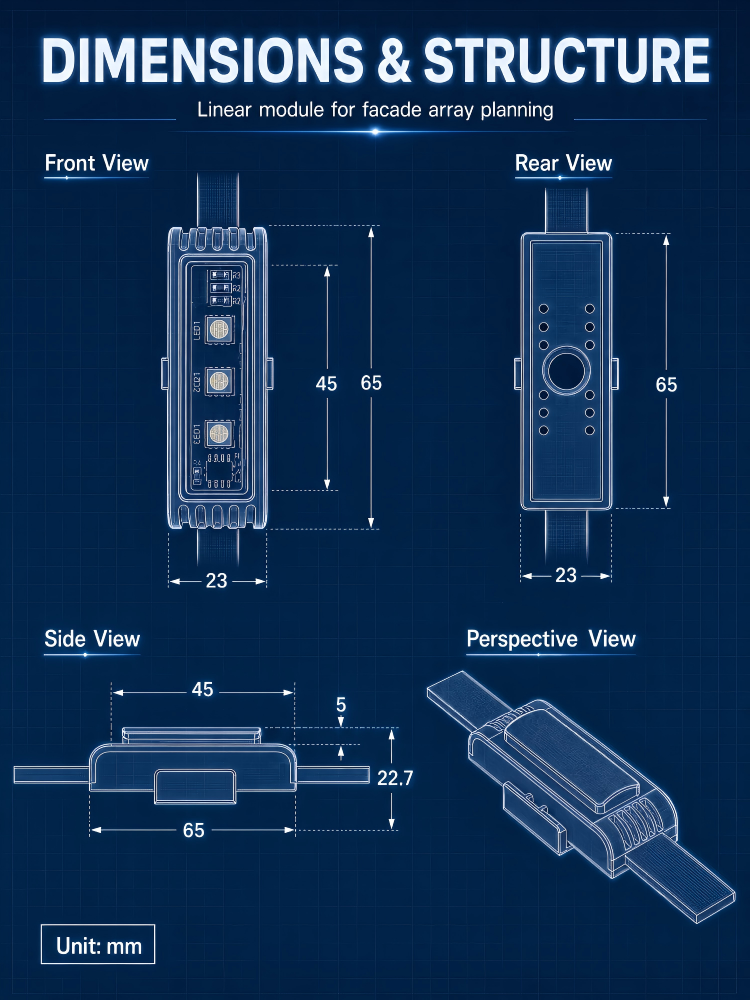

This elongated linear‑bar LED pixel point light measures 65*24*13mm. Its power reaches 0.75W for single‑color & RGB and 0.9W for RGBW under DC12V supply. It generates continuous strip‑like glow instead of isolated dots, filling performance gaps between discrete pixel lamps and flexible LED strips.

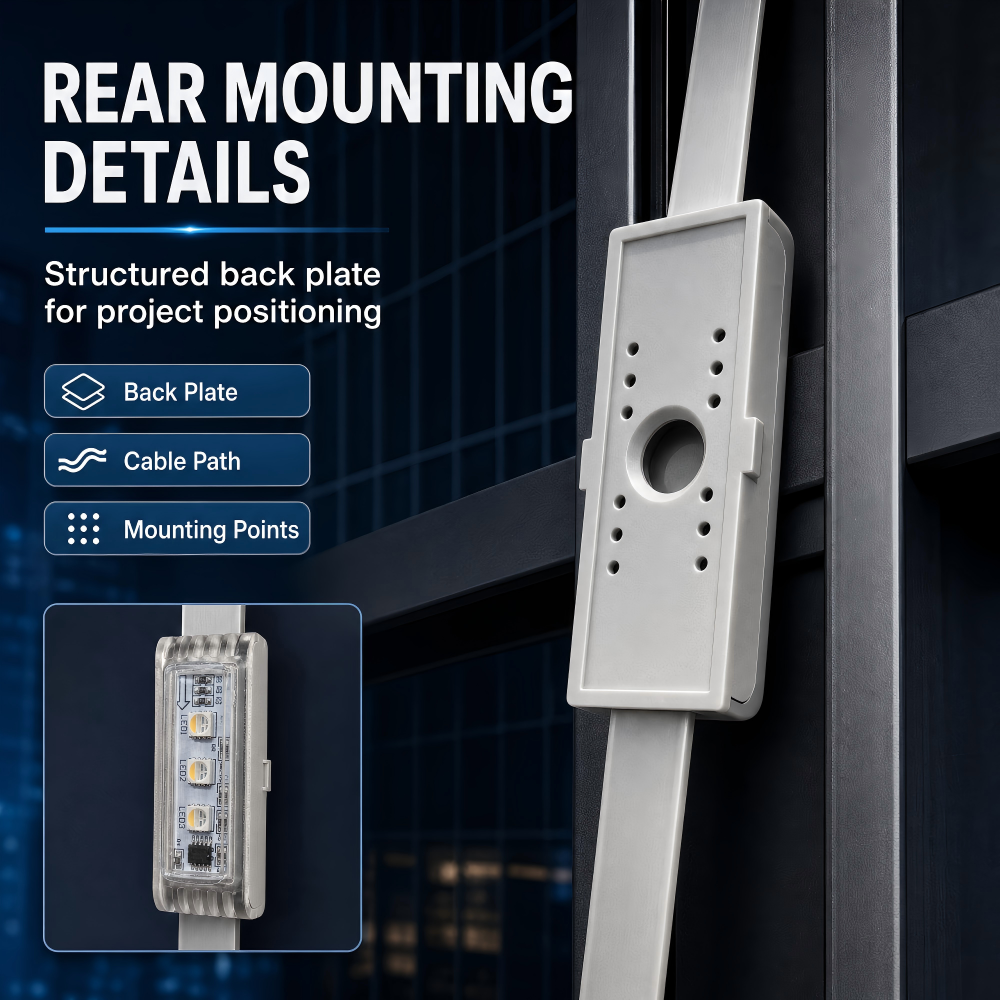

Matched aluminum channel specification is L1000W31H30mm with snap clips for seamless end‑to‑end linear mounting along cornices and structural edges. 13‑mm slim body fits closely against surfaces for gap‑reduced linear lighting output.

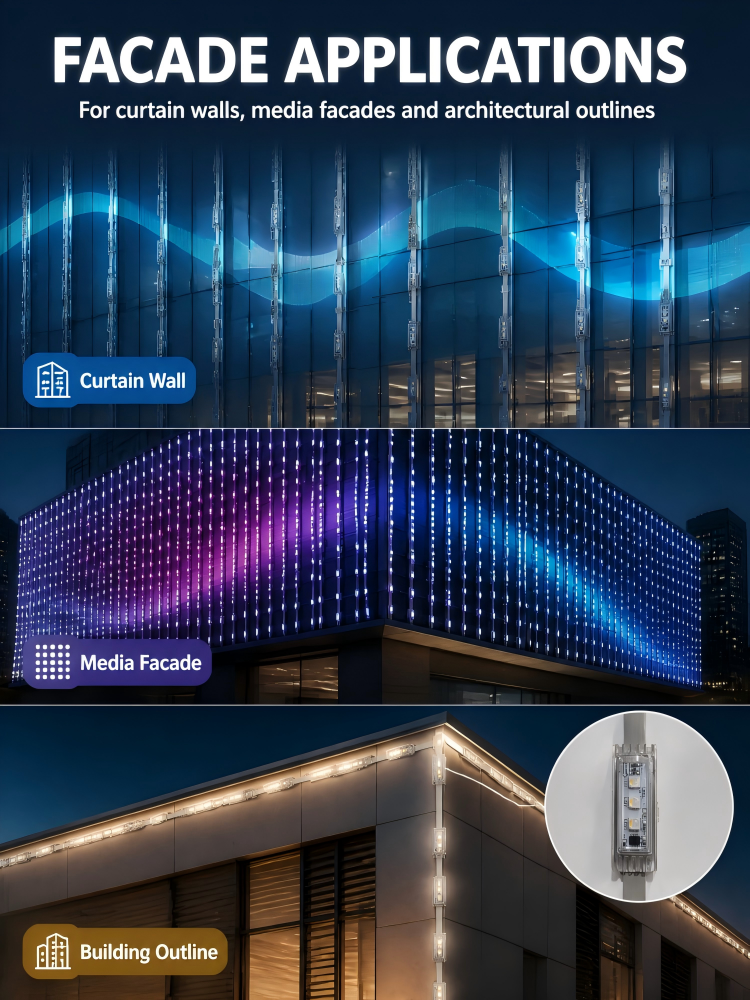

Equipped with 5‑wire DMX512 control and multiple color options. It is suitable for wall‑grazing effect, ceiling perimeter lighting and architectural edge outlining, where ordinary round or square point lights would leave obvious dark gaps.


Product Specification

Voltage DC 12V IP Rating IP65
Power 0.75W / 0.9W Dimensions L65*W24*H13mm
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC
LED Brand & Quantity 3 PCS LED Luminous Flux 65LM
Control Mode DMX512 / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-CH3-M1-C1
 L65*W24*H13mm DC12V 0.75W Monochrome ON/OFF
CDL-CH3-M1-D3
 L65*W24*H13mm DC12V 0.75W RGB DMX512
CDL-CH3-M1-D4
 L65*W24*H13mm DC12V 0.9W RGBW DMX512
