Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Architectural Media Facade Linear LED Pixel Lights 1.5W DC24V RGB RGBW 75mm For Dynamic Display
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Supply Ability :
10000PCS / MONTH
Sample Service :
Samples offered for quality evaluation
Delivery Time :
3‑7 Working Days
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
CHINA
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
CRANE
Production Capacity :
Full production lines, support large project orders
MOQ :
1PCS
Design Service :
Offer lighting, optical & structural design for projects
Description

This high‑power linear‑bar LED pixel point light is sized 75*29*13mm. Rated power is 1.5W for single‑color & RGB and 1.8W for RGBW. The extended light‑emitting surface delivers strong linear pixel output for large‑size dynamic media‑facade projects with DC24V and 5‑wire DMX512 signal.


Compatible aluminum channel L1000W*36.5*H30mm plus snap clips guarantee reliable continuous installation on outer building walls. Longer 75‑mm luminous segment ensures clear visual effect even for far viewing distance on high‑rise structures.

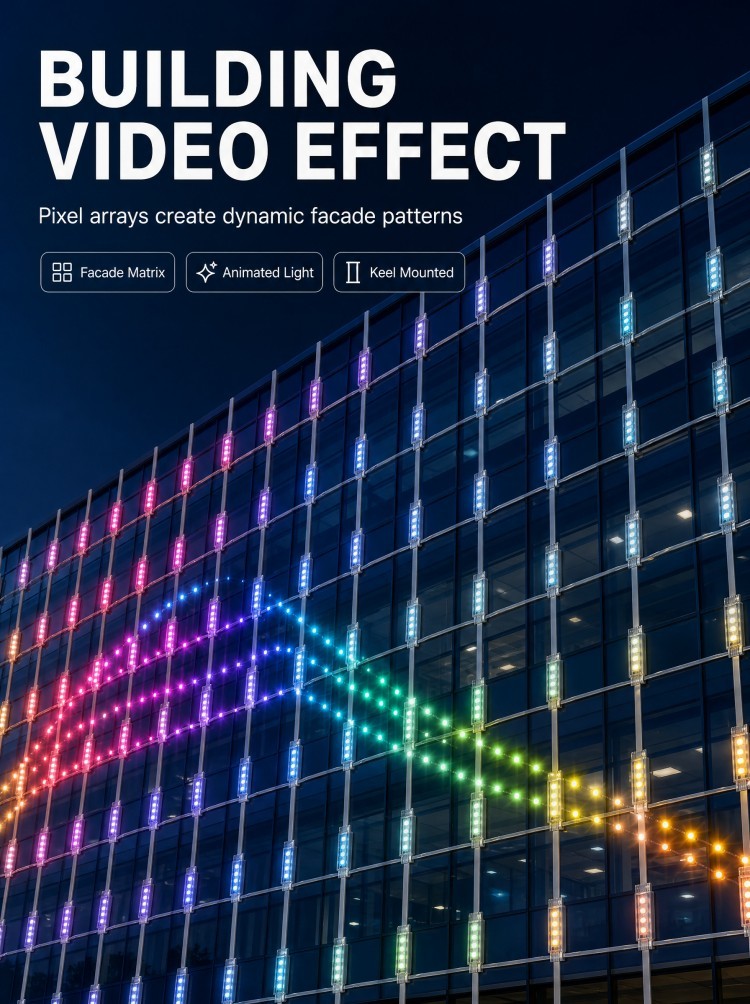

Multiple color configurations support static linear wash as well as full‑motion media display. Ideal for commercial media walls, landmark facades, and bridge outline lighting requiring bright gap‑free linear pixel segments.


Product Specification

Voltage DC 24V IP Rating IP65
Power 1.5W / 1.8W Dimensions L75*W29*H13mm
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC
LED Brand & Quantity 6 PCS LED Luminous Flux 125LM
Control Mode DMX512 / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-CH6-M1-C1
 L75*W29*H13mm DC24V 1.5W Monochrome ON/OFF
CDL-CH6-M1-D3
 L75*W29*H13mm DC24V 1.5W RGB DMX512
CDL-CH6-M1-D4
 L75*W29*H13mm DC24V 1.8W RGBW DMX512
