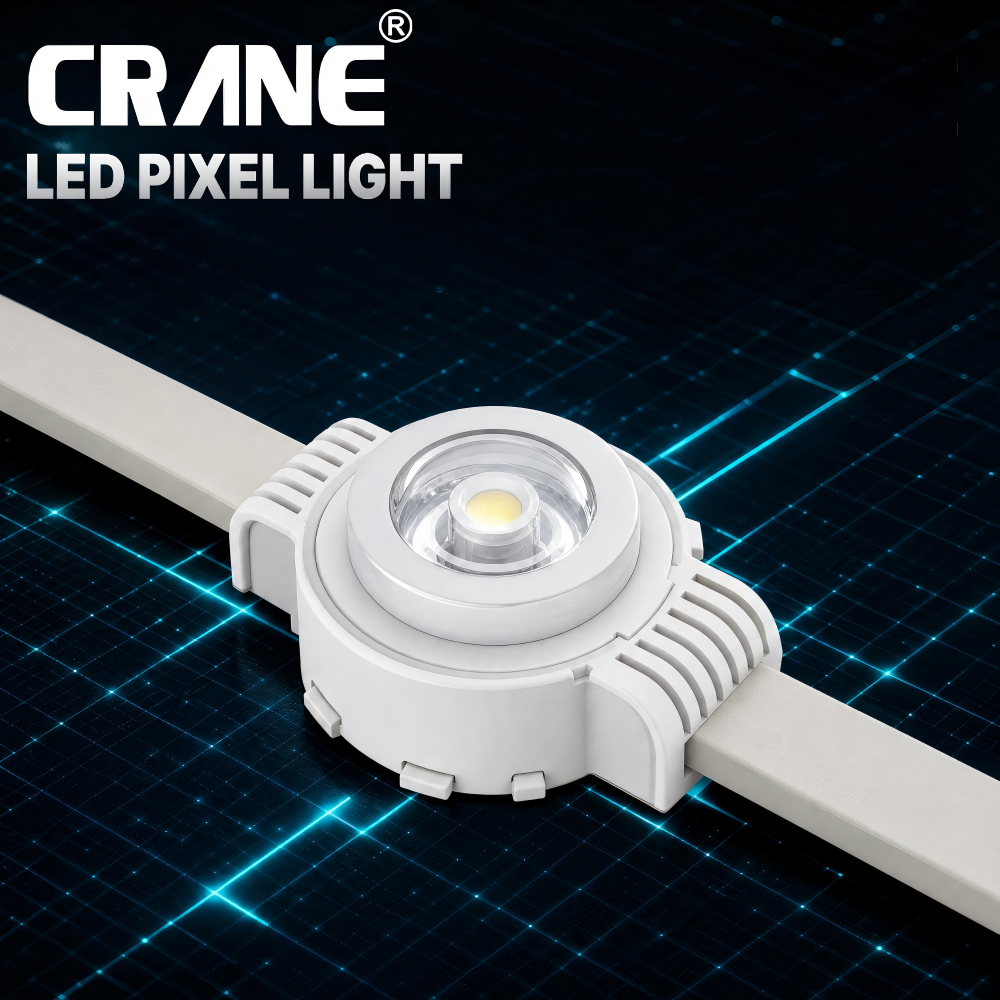

Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Sample Service :
Samples offered for quality evaluation
Supply Ability :
10000PCS / MONTH
Production Capacity :
Full production lines, support large project orders
Delivery Time :
3‑7 Working Days
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
CHINA
Warranty Period :
3‑5 years warranty under normal use
Brand Name :
CRANE
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
MOQ :
1PCS
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Description

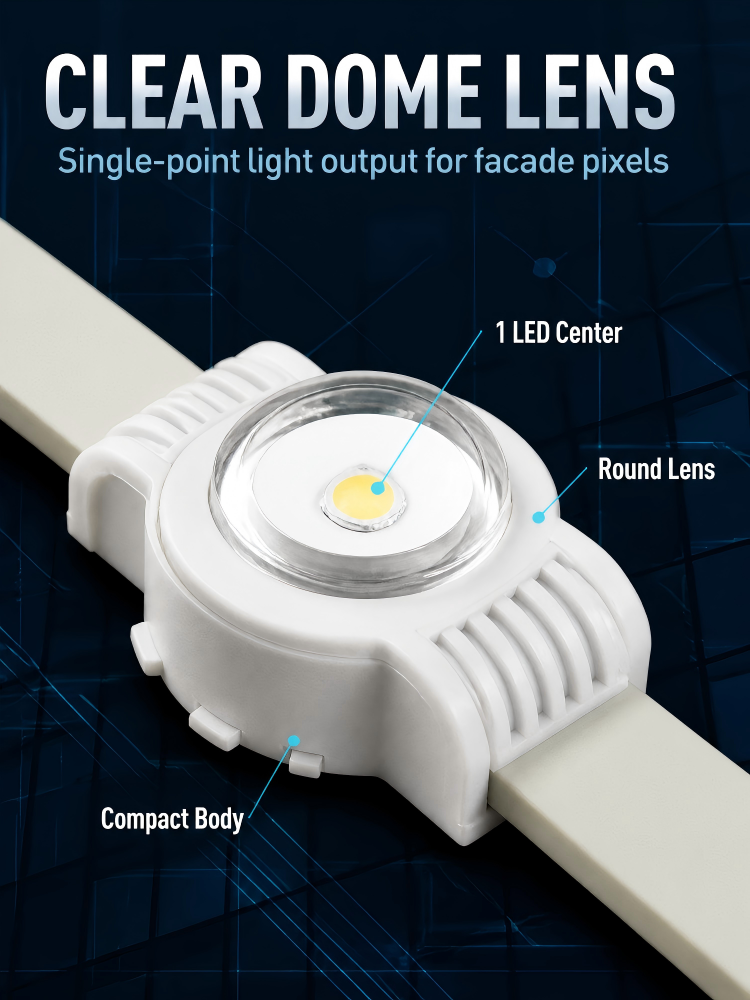

This mini‑size round LED pixel point light is only 30mm in diameter with 0.3W power rating, designed for high‑density dot‑matrix layout. It supports single‑color steady‑on, RGB 3‑in‑1 and RGBW 4‑in‑1 versions, delivering delicate color output for close‑range facade and fine outline projects.

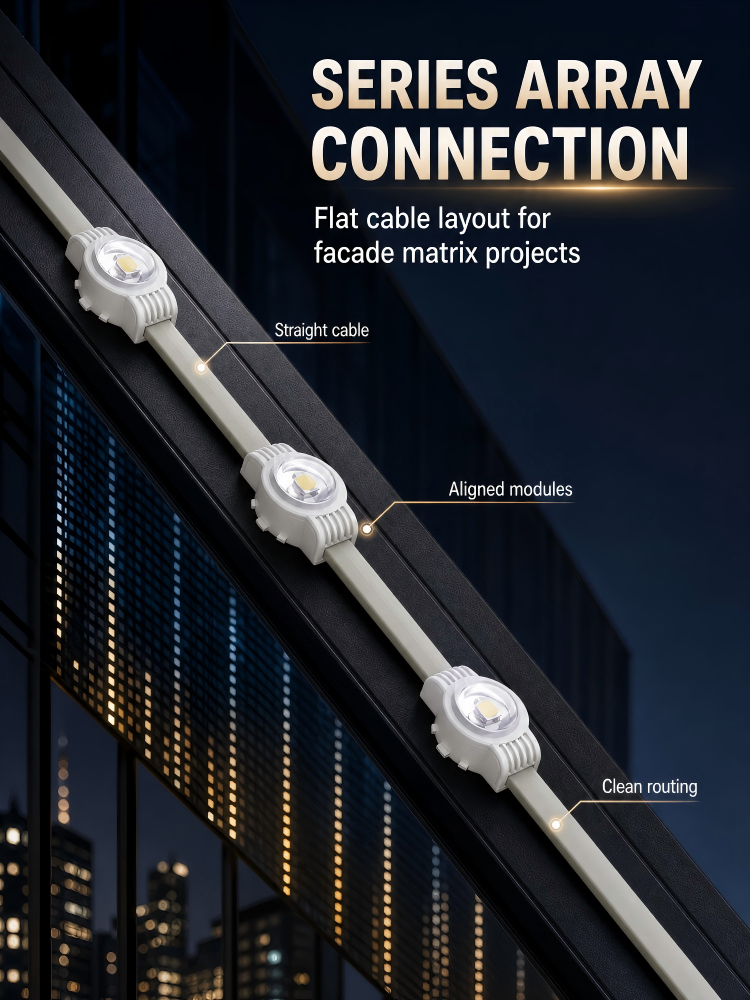

It works with dedicated aluminum channel L1000*W36.5*H30mm and matching snap clips for fast linear installation along building edges, window frames and sign borders. Low‑voltage DC5V input guarantees safe operation for densely‑arranged lamp arrays.


Adopting SPI TTL signal protocol, this unit fits small‑scale media screens and architectural contour lighting that requires compact pixel pitch. The small round housing keeps a low‑profile appearance in daytime and outputs precise dot lighting at night.


Product Specification

Voltage DC5V IP Rating IP65

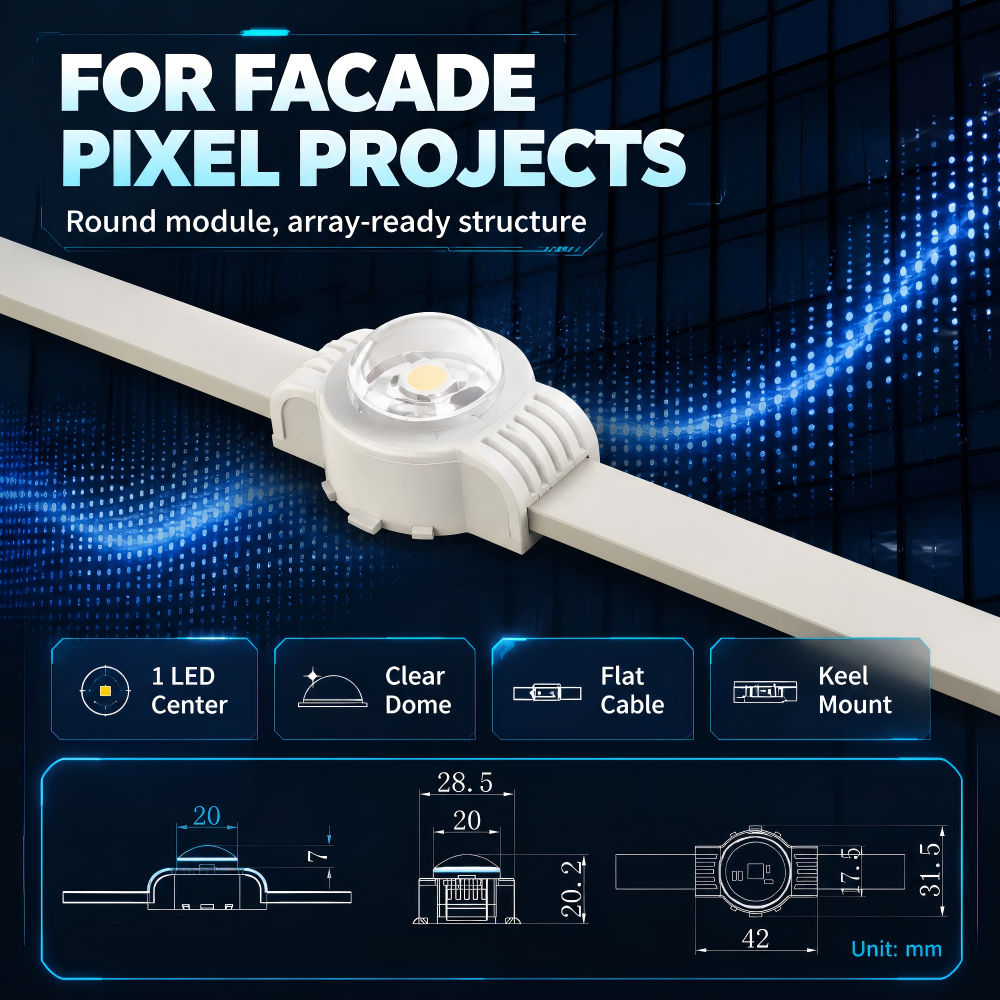

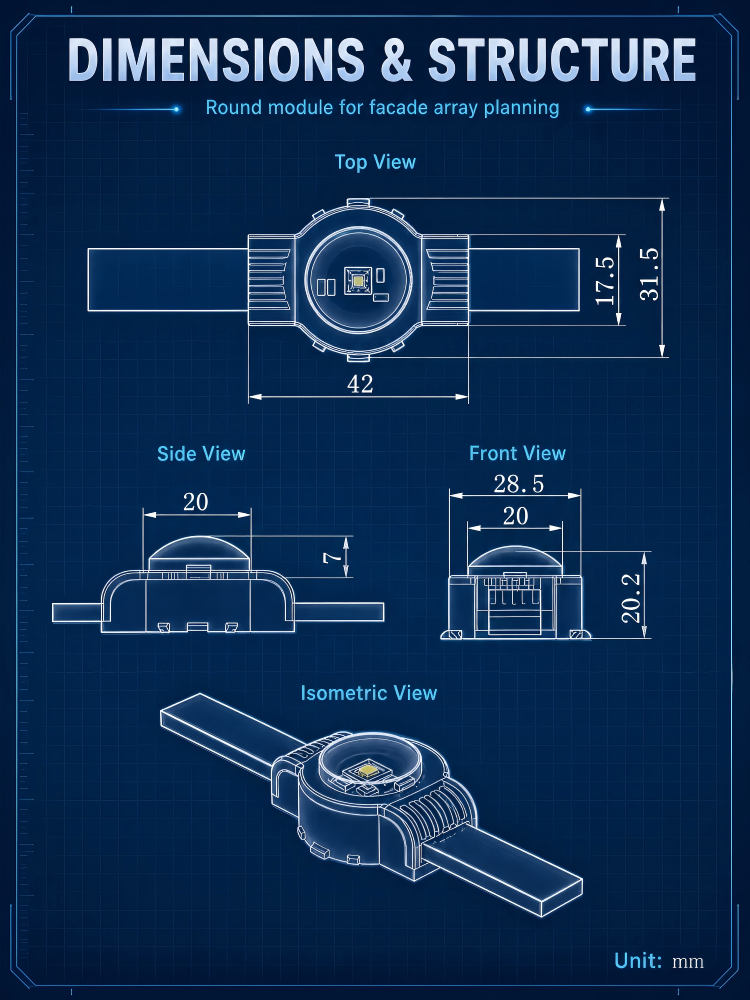

Power 0.3W Dimensions Φ30MM
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC
LED Brand & Quantity 1 PCS LED Luminous Flux 25LM
Control Mode SPI (TTL) / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-YY1-M1-C1
 Φ30MM DC5V 0.3W Monochrome ON/OFF
CDL-YY1-M1-T3
 Φ30MM DC5V 0.3W RGB SPI (TTL)
CDL-YY1-M1-T4
 Φ30MM DC5V 0.3W RGBW SPI (TTL)


Round LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline DecorRound LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline DecorRound LED Pixel Point Light 0.3W DC5V RGB RGBW With Aluminum Channel For Facade Outline Decor
