Specifications
Certification :
CE/ROHS/EMC/FCC/LVD
Warranty Period :
3‑5 years warranty under normal use
Supply Ability :
50000 Pieces Per Month
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Delivery Time :
3‑7 working days
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Place of Origin :
China
Design Service :
Offer lighting, optical & structural design for projects
Brand Name :
CRANE
Production Capacity :
Full production lines, support large project orders
MOQ :
1 Piece
Sample Service :
Samples offered for quality evaluation
Description

1. Our DMX512 addressable LED point lights adopt high-quality SMD5050 RGBW chips, delivering bright and even dot lighting with smooth color gradient and chasing dynamic effects.

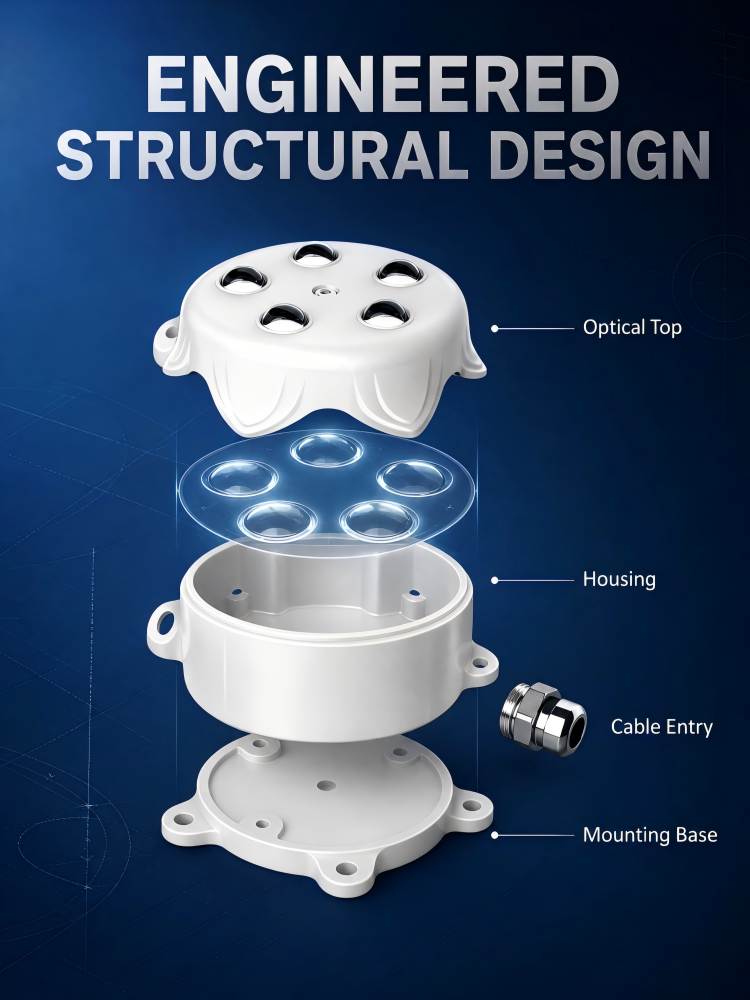

2. Built with UV-resistant PC lens and solid base, the lamp features IP65~IP68 waterproof rating, perfectly stable for long-term outdoor use against rain, dust and sunlight aging.

3. It supports DMX512 & SPI dual signal control, each pixel can be individually programmed to make media wall, animation display and building outline lighting effects.

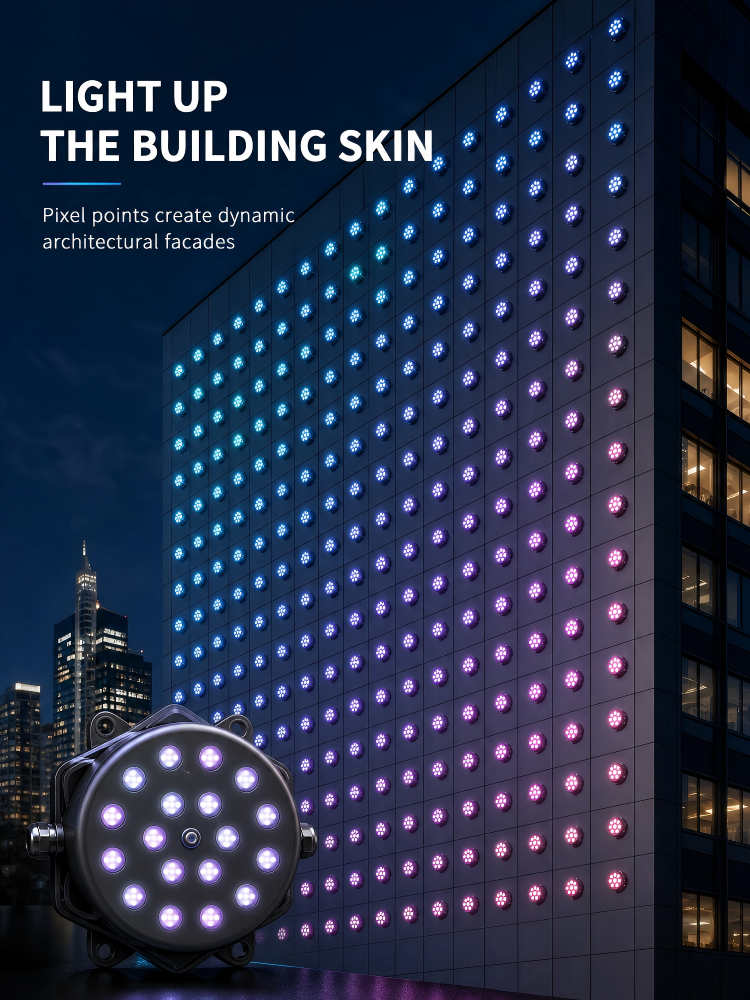

4. Low voltage DC12V/24V power supply ensures safe outdoor installation, widely used for curtain wall, bridge, amusement park, advertising sign and commercial facade projects.

5. We support OEM custom pixel spacing, logo printing and engineering bulk orders, all products come with long lifespan LED chips and reliable multi-year warranty.

Key attributes

Voltage DC24V
IP Rating IP67
Power

1.5W / 3W / 6W
Housing Material Extruded Aluminum Profile, Grey
Light Color 1800K-6500K / RGB / RGBW

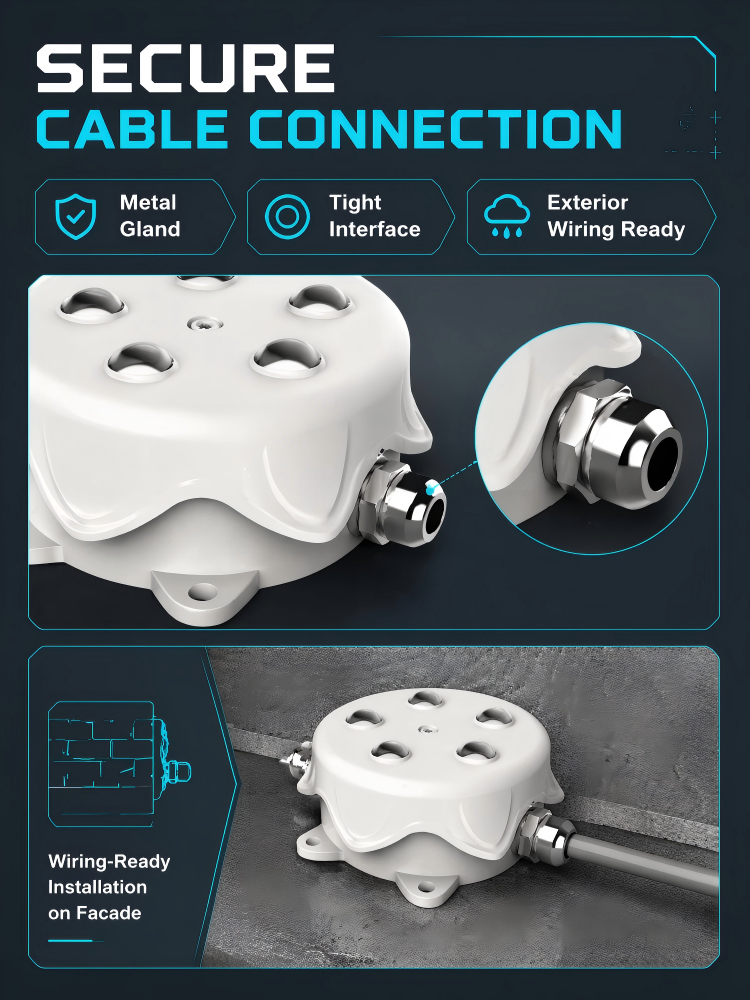

Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
Beam Angle 120°
Cover Silk‑screen Aperture Tempered Glass
LED Brand & Quantity 5pcs / 12pcs / 18pcsOSRAM LEDs
Luminous Efficacy 100lm/W
Control Mode ON/OFF / DMX512
CRI Ra90
Segment Control 1‑segment
Dimensions Φ123*H34MM

Product Description

Model No. Size Voltage Power Light Source Effect / Control Mode
CML-ML5 Φ73*H34MM DC24V 1.5W Monochrome Constant On
CML-ML5R Φ73*H34MM DC24V 1.5W Monochrome Constant On
CML-ML5G Φ73*H34MM DC24V 1.5W RGB 3‑in‑1 DMX512
CML-ML12 Φ93*H34MM DC24V 3W RGBW 4‑in‑1 DMX512
CML-ML12R Φ93*H34MM DC24V 3W Monochrome Constant On
CML-ML12G Φ93*H34MM DC24V 3W Monochrome Constant On
CML-ML18 Φ123*H34MM DC24V 6W RGB 3‑in‑1 DMX512
CML-ML18R Φ123*H34MM DC24V 6W RGBW 4‑in‑1 DMX512
CML-ML18G Φ123*H34MM DC24V 6W Monochrome Constant On
