Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Supply Ability :
10000PCS / MONTH
Sample Service :
Samples offered for quality evaluation
Delivery Time :
3‑7 Working Days
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
CHINA
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
CRANE
Design Service :
Offer lighting, optical & structural design for projects
MOQ :
1PCS
Production Capacity :
Full production lines, support large project orders
Description

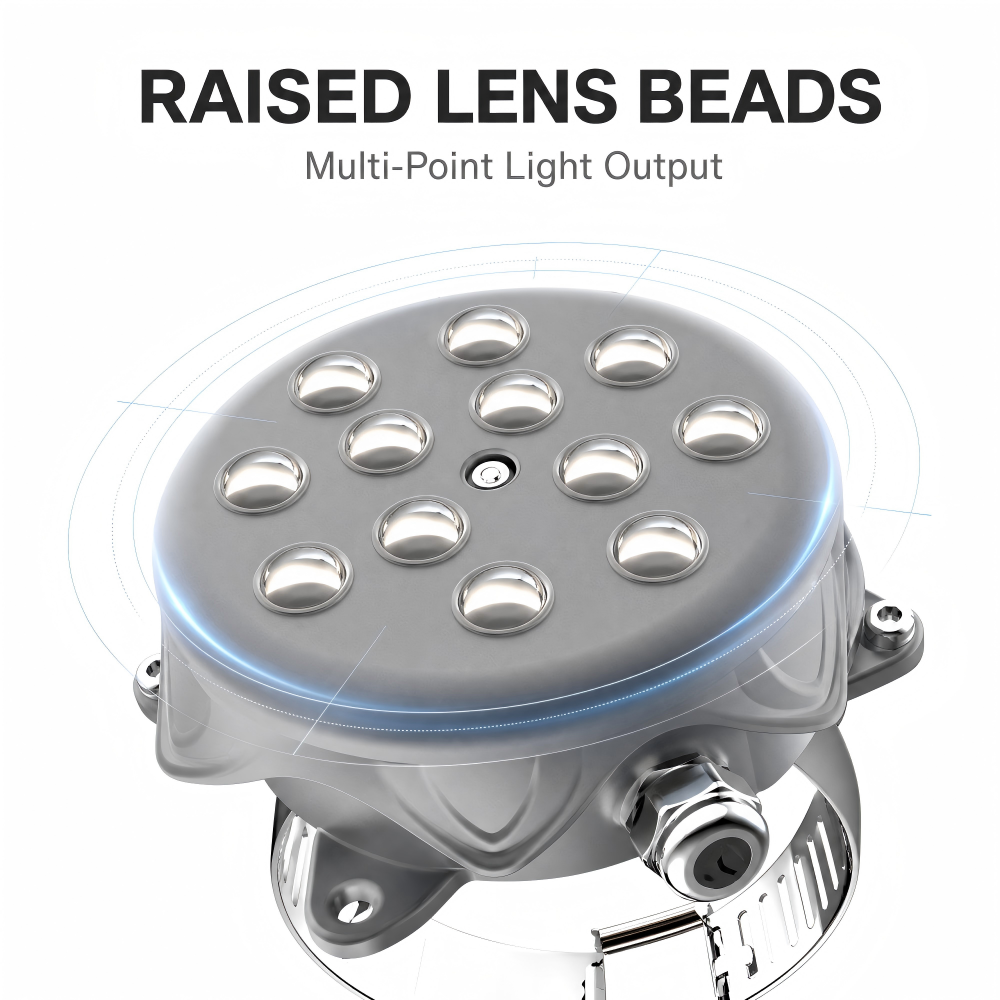

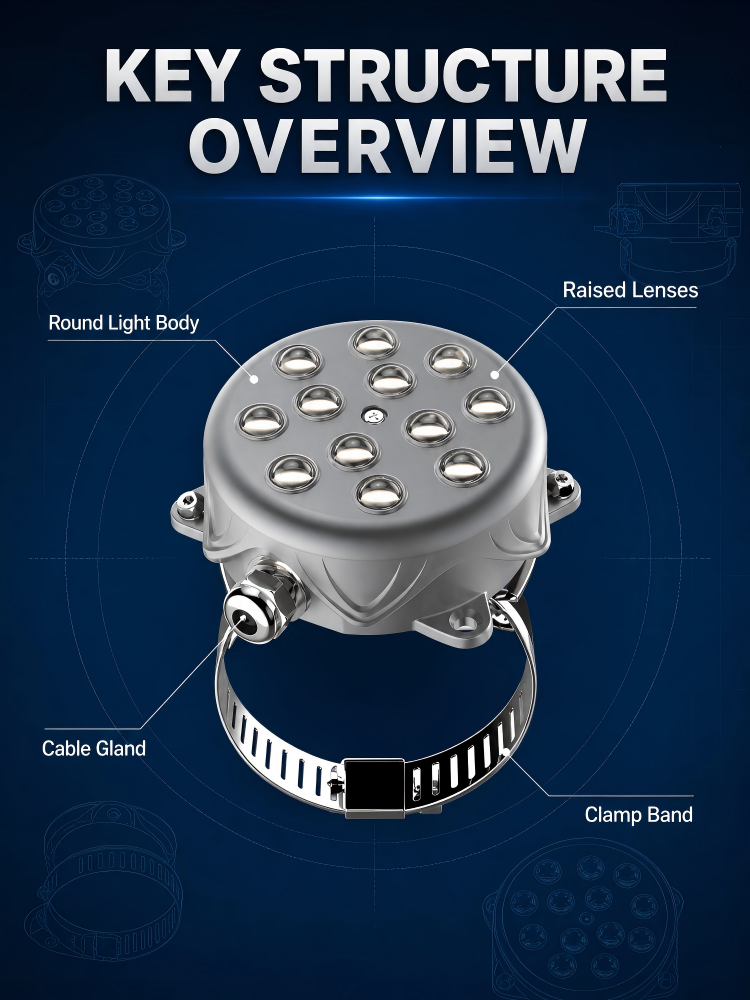

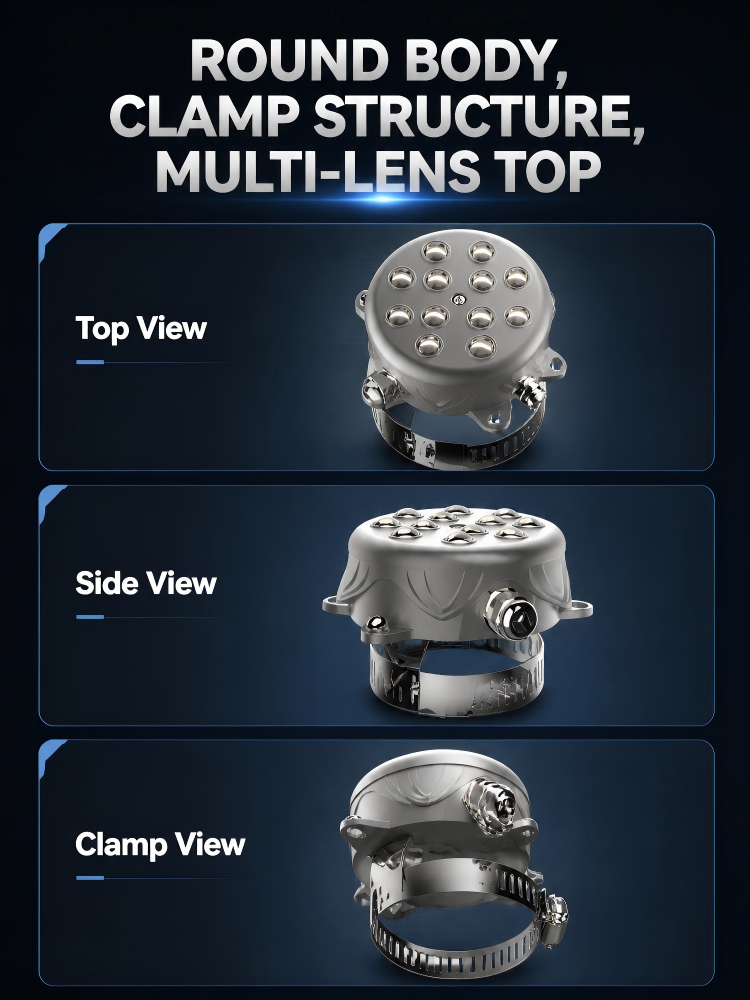

This Mo‑Lian II LED pixel point light adopts stainless‑steel band‑clamp mounting structure, engineered specifically for bridge stay cables cylindrical poles and round pipe structures. It avoids drilling damage on original building components and delivers the same 3W 12‑LED 120‑degree wide‑angle lighting performance as standard Mo‑Lian II model.


Grey die‑cast aluminum housing with full IP65 waterproof rating sustains harsh outdoor conditions ranging from‑20℃ to 45℃. Anti‑UV and anti‑corrosion properties guarantee over 20000 hours LED lifespan, lowering long‑term maintenance workload for municipal and bridge lighting contractors.


Multiple control options are available including single‑color steady on DMX512 addressable RGB RGBW and TTL signal. Rich dynamic color changes support media facade animation cable outline lighting and static decorative effects for large‑scale night‑scape projects.

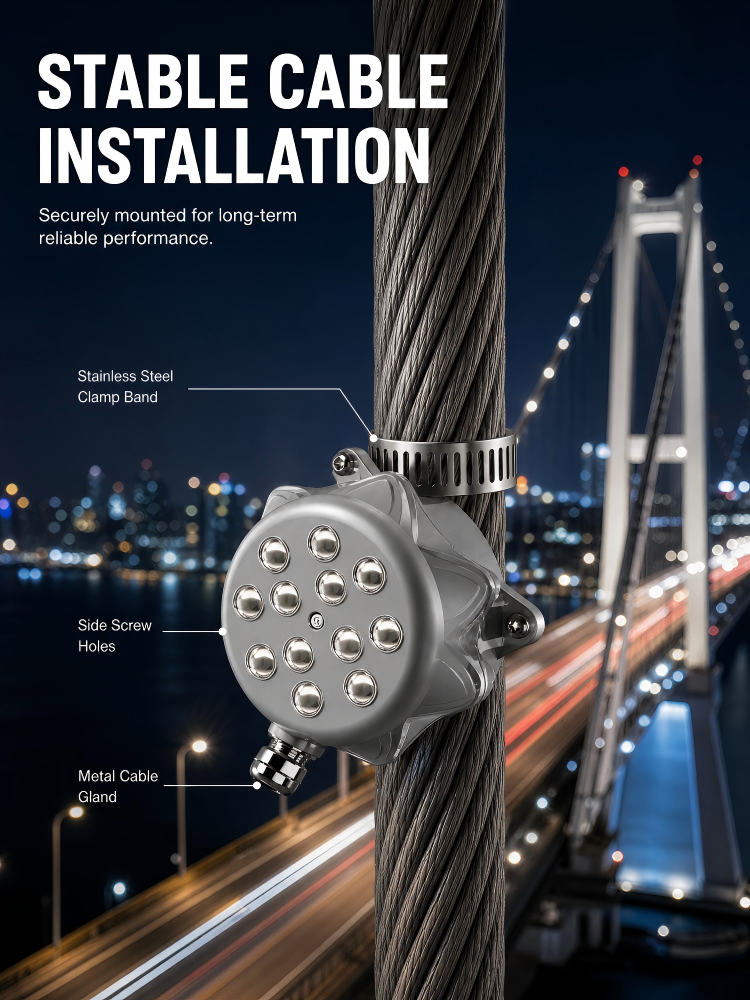

Adjustable stainless‑steel band clamp fits various diameter round cables and poles. It is widely used for stay‑cable decoration of cable‑stayed bridges bridge railing lighting tower outline marking lamp‑post media effect and retrofitting projects where wall drilling is prohibited.


Product Specification

Voltage DC24V IP Rating IP65
Power 3W Dimensions Φ93*H34MM
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color Dark Grey Cover Aluminum + PC
LED Brand & Quantity 12 PCS LEDs Luminous Flux 240LM
Control Mode DMX512 / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CML-ML12-M1-C1
 Φ93*H34mm DC24V 3W Monochrome ON/OFF
CML-ML12-M1-D4
 Φ93*H34mm DC24V 3W RGBW DMX512
CML-ML12-M1-D3
 Φ93*H34mm DC24V 3W RGB DMX512
CML-ML12-M1-T3
 Φ93*H34mm DC24V 3W RGB TTL Signal
