DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Production Capacity :
Full production lines, support large project orders
Supply Ability :
10000PCS / MONTH
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Delivery Time :
3‑7 Working Days
Sample Service :
Samples offered for quality evaluation
Place of Origin :
CHINA
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
CRANE
Design Service :
Offer lighting, optical & structural design for projects
MOQ :
1PCS
Warranty Period :
3‑5 years warranty under normal use
Description

This high‑brightness round LED pixel point light adopts a 44 mm diameter housing. Power consumption is 1.5W for single‑color & RGB and 1.8W for RGBW, providing strong luminous performance for long‑distance viewing on large‑scale building facades. DC24V input and 5‑wire DMX512 support complex media‑screen animation programming.


Compatible aluminum channel is L1000*W50*H35mm with matching snap clips for heavy‑duty installation. Enlarged housing structure improves heat dissipation and mechanical durability for high‑rise landmarks and super‑size media‑facade engineering.


Multiple color versions, including single‑color, RGB and RGBW, are optional for static wash effect and full‑motion video display. 44‑mm pixel spots remain clearly visible from street level, suitable for city landmark lighting and commercial complex media walls.


Product Specification

Voltage DC 24V IP Rating IP65
Power 1.5W / 1.8W Dimensions Φ44MM
Light Color 1800-6500K/R/G/B/W/RGB/RGBW Ambient Temperature 50 / -20 ℃
Enclosure Color White Cover PC

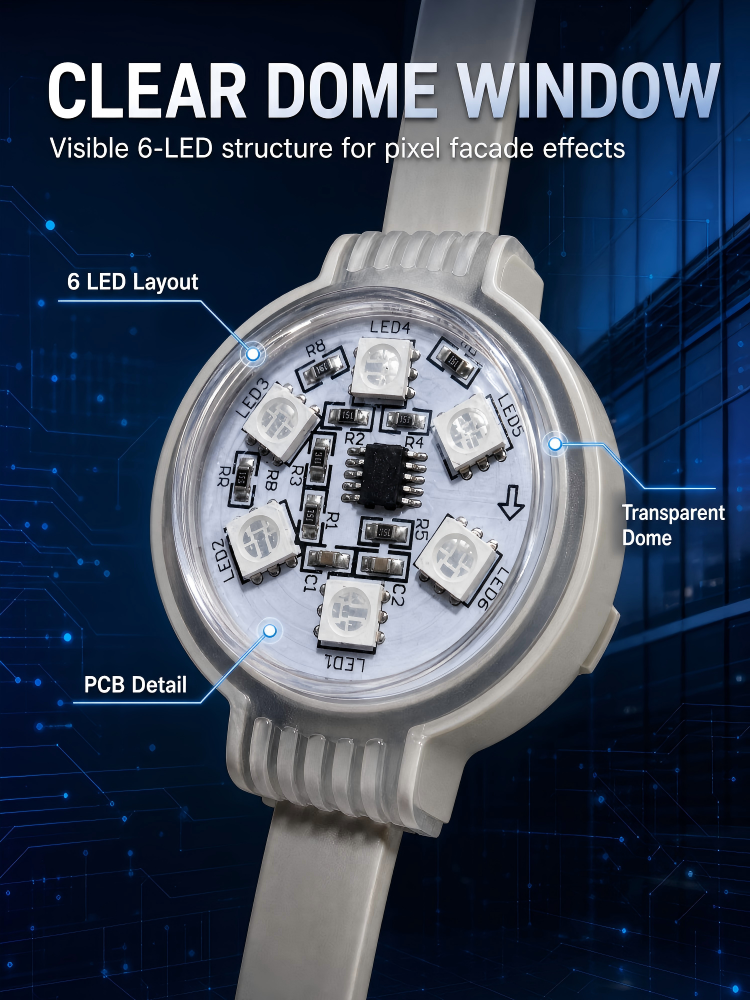

LED Brand & Quantity 6 PCS LEDs Luminous Flux 120LM
Control Mode DMX512 / ON/OFF CRI Ra80


Available Models

Model No. Size Voltage Power Light Source Control Mode
CDL-YY6-M1-C1
 Φ44MM DC24V 1.5W Monochrome ON/OFF
CDL-YY6-M1-D3
 Φ44MM DC24V 1.5W RGB DMX512
CDL-YY6-M1-D4
 Φ44MM DC24V 1.8W RGBW DMX512


DMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen ProjectDMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen ProjectDMX512 Addressable Round Pixel Point LED Light 1.5W DC24V RGB RGBW For Large Media Screen Project
