Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Production Capacity :
Full production lines, support large project orders
Supply Ability :
15000 Pieces Per Month
Sample Service :
Samples offered for quality evaluation
Delivery Time :
3‑7 working days
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
China
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
Crane
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Description
  • This series of round LED spotlights covers 9W and 12W power grades, supporting DC24V low‑voltage and AC220V power input. It provides steady single‑color constant lighting, plus DMX512 controllable RGB and RGBW dynamic color‑changing for diverse landscape lighting projects.

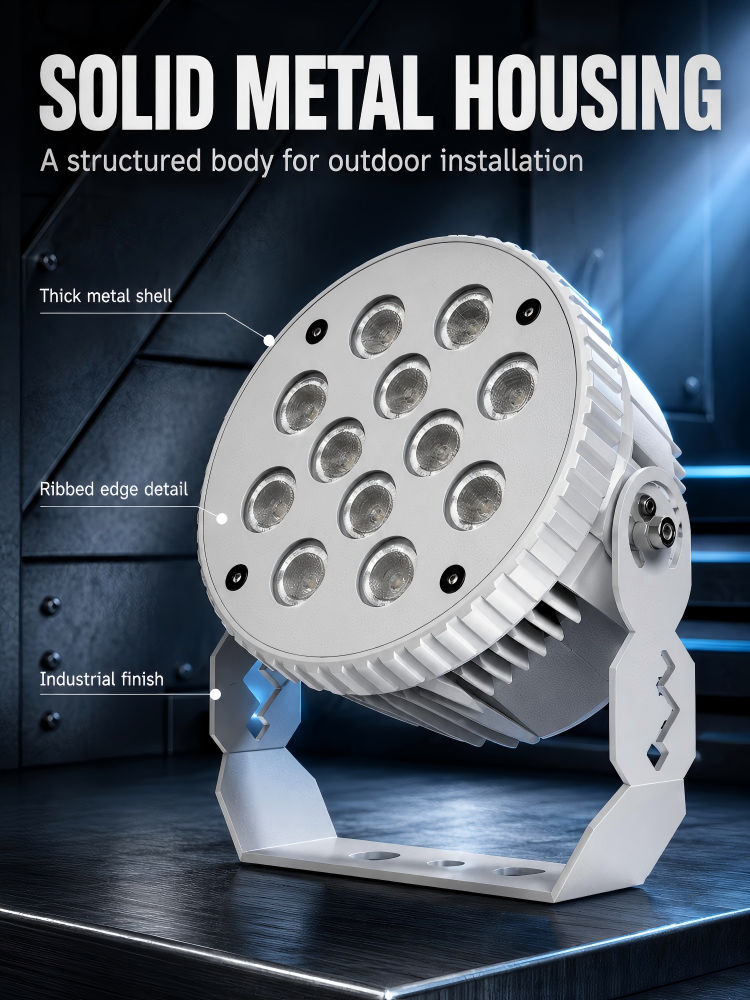

    Crafted from high‑strength die‑cast aluminum with dimension Φ121*H80, the fixture adopts fin‑type heat dissipation structure together with built‑in anti‑glare hood, effectively lowering light spillover and accelerating heat evacuation for long‑term outdoor operation.

    Multi‑angle adjustable metal mounting bracket allows flexible beam orientation for tree crown, sculpture and building facade accent lighting. Advanced sealing design defends against rain, moisture and UV degradation in various outdoor surroundings.

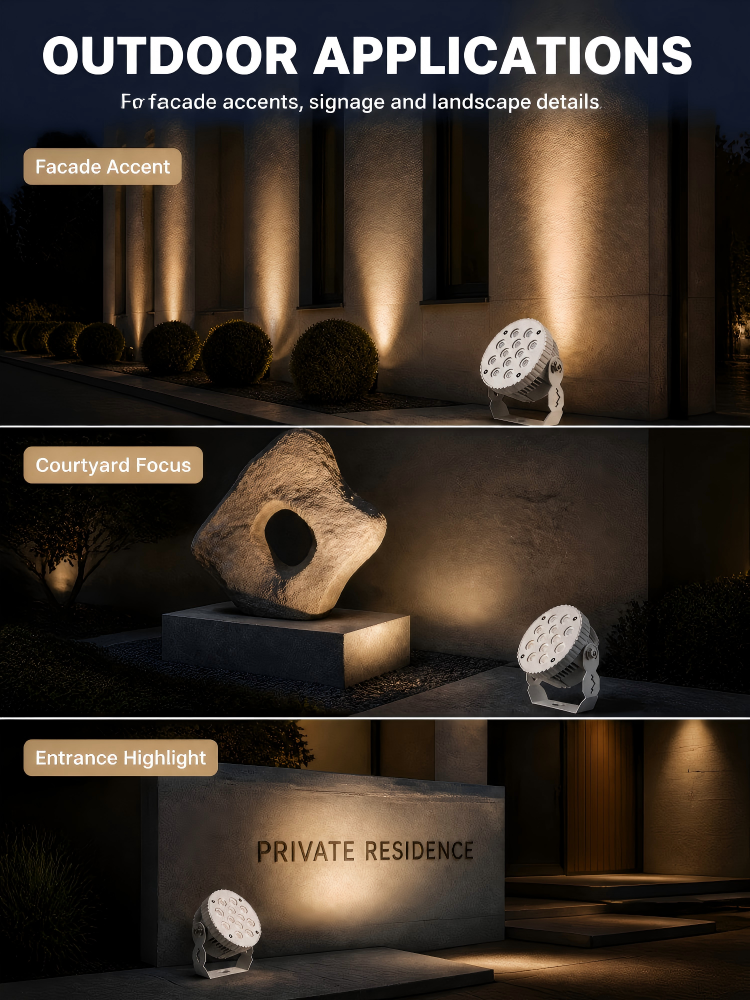

    Designed for municipal parks, scenic spots, resort gardens and commercial plaza lighting renovation. Multiple power and light source options satisfy both static practical illumination and colorful dynamic lighting tender project requirements.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    9W / 12W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 12pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions Φ121*H80


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-ZGZ9-M1-C1 Φ121*H80 DC24V 9W Single Color ON/OFF
    CTH-ZGZ9-M1-C1 Φ121*H80 AC220V 9W Single Color ON/OFF
    CTL-ZGZ12-M1-C1 Φ121*H80 DC24V 12W Single Color ON/OFF
    CTH-ZGZ12-M1-C1 Φ121*H80 AC220V 12W Single Color ON/OFF
    CTL-ZGZ12-M1-D3 Φ121*H80 DC24V 12*1.5W RGB DMX512
    CTL-ZGZ12-M1-D4 Φ121*H80 DC24V 12*2W RGBW DMX512
