Specifications
Sample Service :
Samples offered for quality evaluation
Certification :
CE/RoHS/FCC/LVD/EMC
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
15000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Place of Origin :
China
Production Capacity :
Full production lines, support large project orders
Brand Name :
Crane
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1
Description

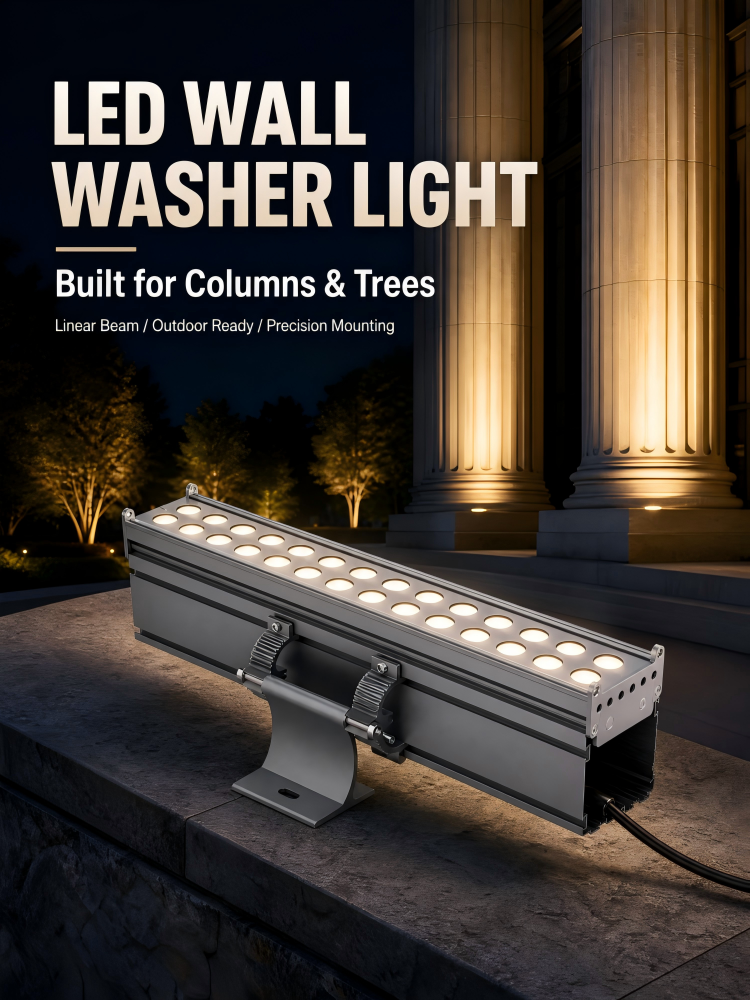

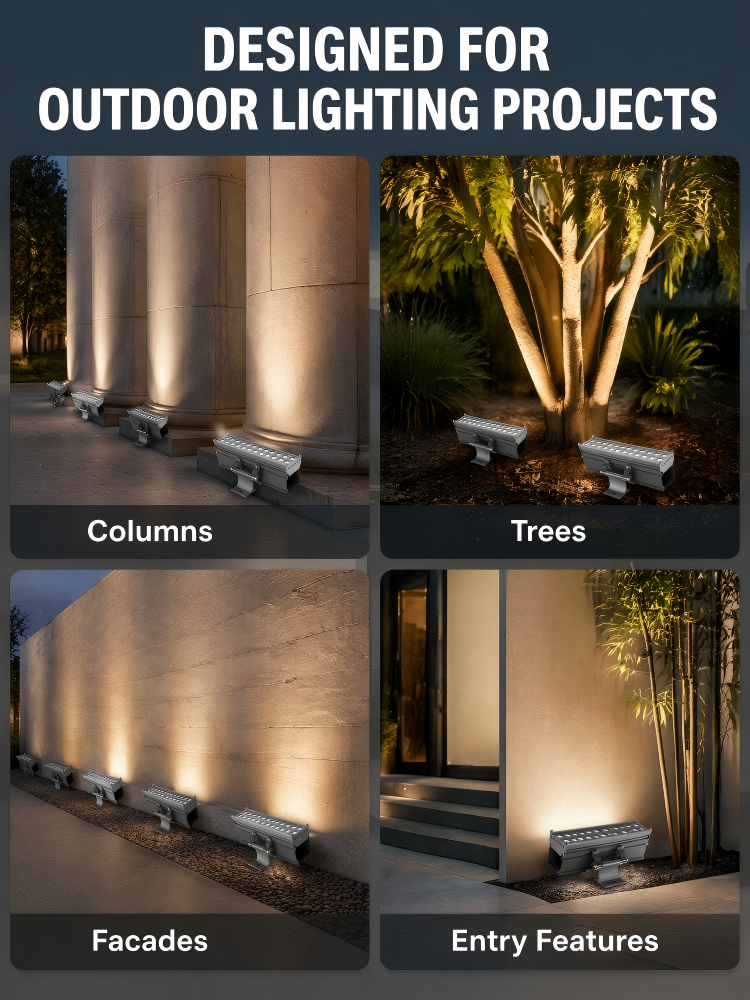

  • This linear LED flood light is available in 12W and 24W power grades, with dual‑size housing options and support for DC24V and AC220V power input. It delivers stable single‑color constant lighting, specially engineered for building facade contour lighting, heritage architecture and commercial exterior renovation projects.

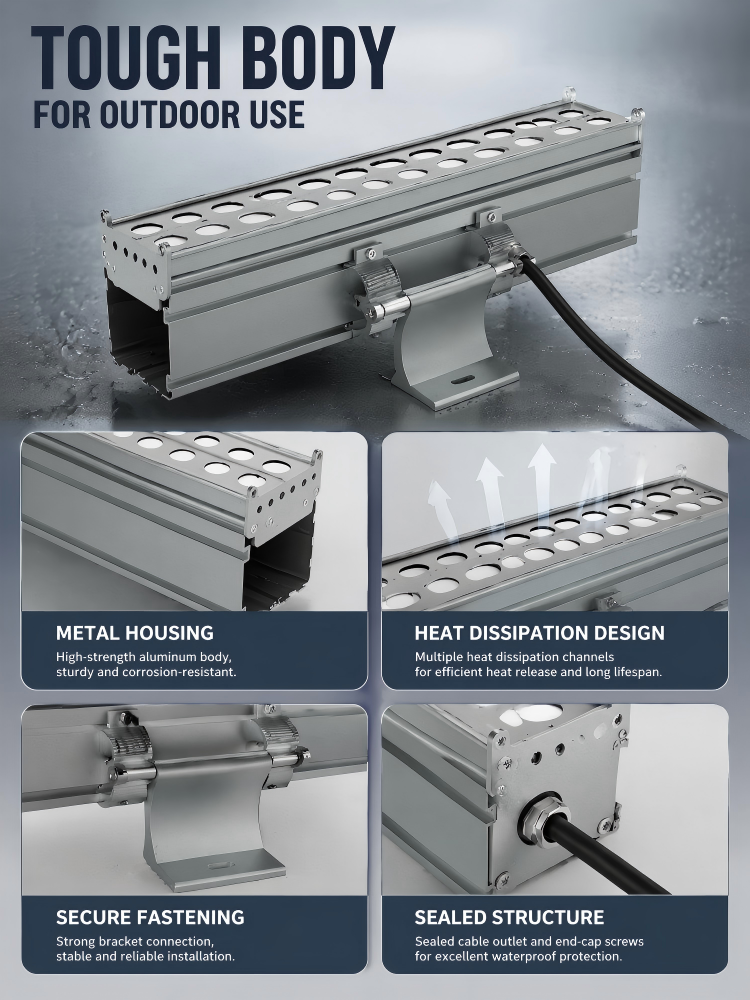

    Integrated extruded aluminum alloy housing brings excellent heat dissipation performance for long‑time continuous operation. Reliable sealing construction adapts to outdoor exposed installation, defending against rainwater, dust and UV aging for stable year‑round exterior performance.

    Equipped with heavy‑duty adjustable mounting bracket, it supports flexible angle calibration to cast precise strip light onto window frames and wall edges. Compact slim profile keeps low visual impact without spoiling the original architectural appearance.

    Two compact dimension variants satisfy different window‑size requirements. Simple installation structure cuts field working hours, making it a practical lighting solution for municipal facade projects and large‑volume landscape tender orders.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    12W / 24W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 12/15/18pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions L339*W80*H133 / L179*W80*H133


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-DZS24-M1-C1 L339*W80*H133 DC24V 24W Single Color ON/OFF
    CTH-DZS24-M1-C1 L339*W80*H133 AC220V 24W Single Color ON/OFF
    CTL-DZS12-M1-C1 L179*W80*H133 DC24V 12W Single Color ON/OFF
    CTH-DZS12-M1-C1 L179*W80*H133 AC220V 12W Single Color ON/OFF
