Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Production Capacity :
Full production lines, support large project orders
Supply Ability :
15000 Pieces Per Month
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Delivery Time :
3‑7 working days
Sample Service :
Samples offered for quality evaluation
Place of Origin :
China
Design Service :
Offer lighting, optical & structural design for projects
Brand Name :
Crane
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

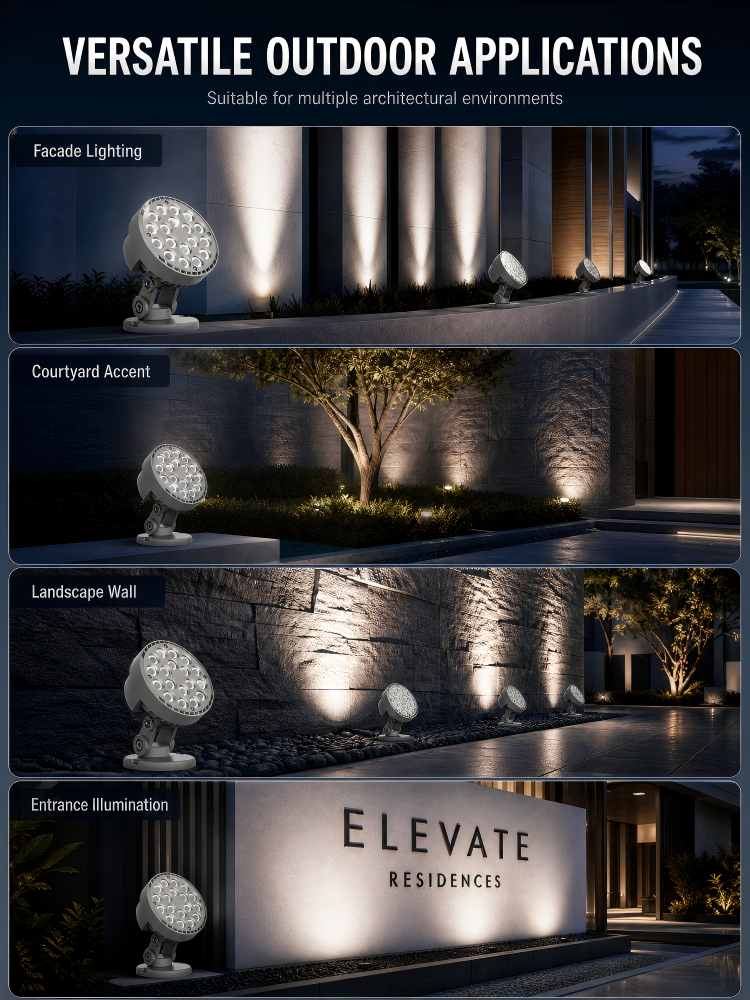

  • This compact mini round wall light features a petite Φ148*H149mm streamlined body, offered in 12W and 18W low-power specifications. It supports DC24V safety low voltage and AC220V universal mains voltage, adopting monochrome static lighting and DMX512 programmable RGB/RGBW dynamic modes, ideal for building edge outlining, corridor decoration and small landscape ambient lighting projects.

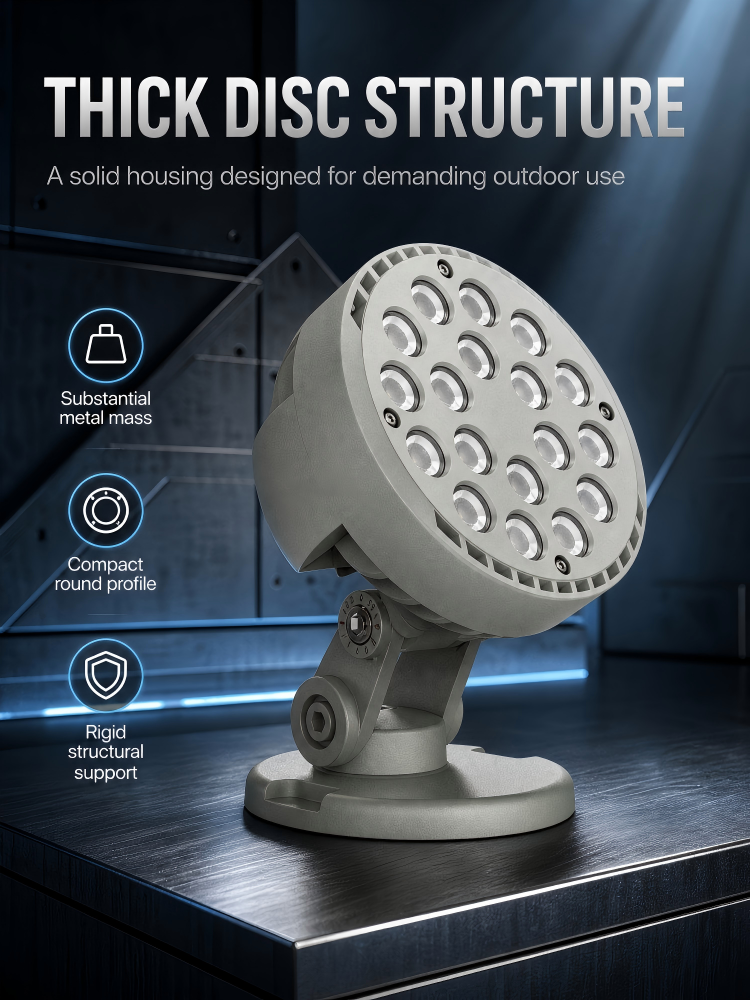

    The lamp adopts high-grade mini die-cast aluminum housing with compact integrated heat dissipation structure, ensuring efficient heat release during long-term operation without light fading. Precision overall sealing achieves excellent waterproof and dustproof performance, resisting outdoor UV aging and humidity changes to deliver stable long-lasting outdoor lighting performance.

    It provides flexible multi-light-source configurations to meet refined lighting design needs. Standard monochrome light source delivers soft and uniform constant illumination for basic decorative lighting. Upgraded RGB and RGBW light sources support rich color rendering and precise DMX512 programming for vivid dynamic night scene effects.

    Mini circular minimalist appearance offers strong architectural compatibility for various lightweight decoration projects. Ultra-compact modular structure enables quick installation and effortless daily maintenance, effectively reducing project labor and material costs. Stable bulk supply and professional OEM customization are available for global engineering clients and lighting distributors.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    12W 18W 24W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 12/18pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions Φ148*H149


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-WYZ12-M1-C1 Φ148*H149 DC24V 12W Single Color ON/OFF
    CTH-WYZ12-M1-C1 Φ148*H149 AC220V 12W Single Color ON/OFF
    CTL-WYZ18-M1-C1 Φ148*H149 DC24V 18W Single Color ON/OFF
    CTH-WYZ18-M1-C1 Φ148*H149 AC220V 18W Single Color ON/OFF
    CTL-WYZ12-M1-D3 Φ148*H149 DC24V 12*1.5W RGB DMX512
    CTL-WYZ12-M1-D4 Φ148*H149 DC24V 12*2W RGBW DMX512
    CTL-WYZ18-M1-D3 Φ148*H149 DC24V 18*1.5W RGB DMX512
    CTL-WYZ18-M1-D4 Φ148*H149 DC24V 18*2W RGBW DMX512
