High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
High Power DMX512 Led Flood Light Outdoor IP66 Waterproof 120w 144w RGBW for High Building Landscape Lighting
Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Sample Service :
Samples offered for quality evaluation
Supply Ability :
15000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
China
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
Crane
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1
Production Capacity :
Full production lines, support large project orders
Description
  • This upgraded dual-row flood light covers two mainstream body sizes L244*W330*H186mm and L488*W330*H186mm, with complete power grades of 60W, 72W, 120W and 144W. Supporting DC24V safety low voltage and AC220V mains voltage, it offers static monochrome steady lighting and DMX512 intelligent RGB/RGBW dynamic modes, covering small-area accent lighting and large-scale building floodlight illumination.

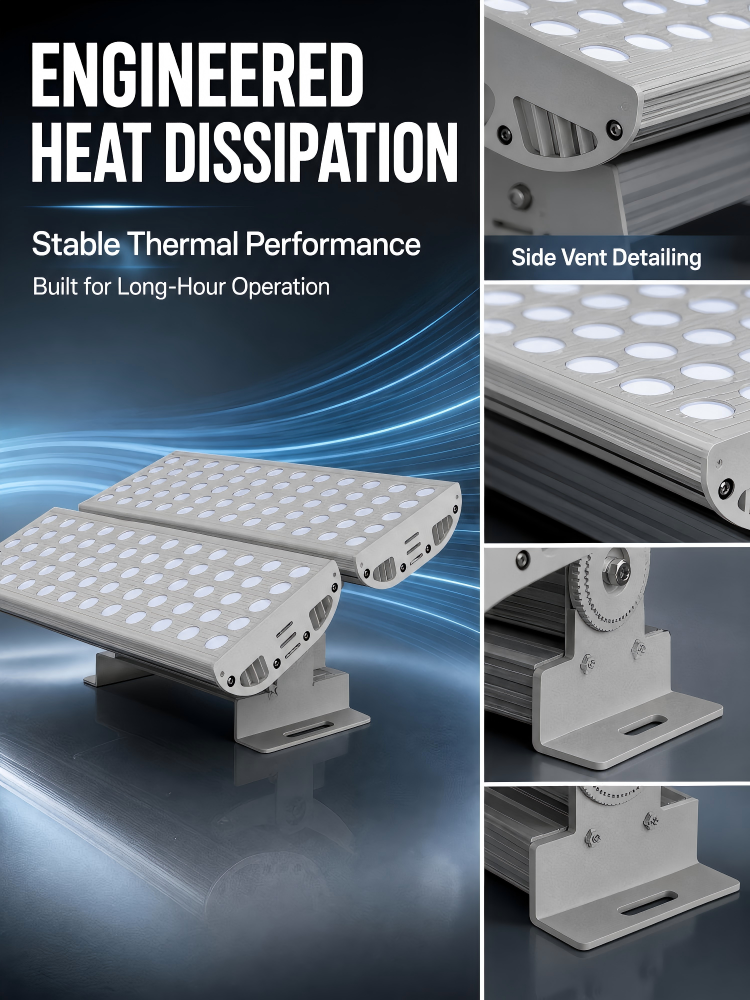

    Adopting reinforced double-row die-cast aluminum structure with widened heat dissipation fins, the lamp delivers rapid heat convection under long-time high-power operation and effectively suppresses luminous decay and light loss. Multi-layer integrated sealing technology ensures stable waterproof and dustproof performance, adapting to strong ultraviolet radiation, rain erosion and extreme temperature changes for year-round reliable outdoor operation.

    The full series is equipped with hierarchical light source configurations to match different project budgets and lighting demands. Standard monochrome version provides high-uniform steady light for conventional static wall washing and outline lighting. RGB three-in-one and RGBW four-in-one modules realize rich color gradients and dynamic switching under standard DMX512 system control for high-end nightscape and cultural tourism lighting upgrades.

    Unified double-row modular structure improves overall structural rigidity and wind resistance for harsh outdoor environments. Flexible adjustable bracket allows precise beam angle positioning to fit multi-scene lighting requirements. Standardized assembly greatly simplifies on-site installation and later maintenance, lowering overall project cost. Stable bulk supply and professional OEM & ODM customization are available for global engineering contractors and lighting wholesale clients.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    60W / 72W / 120W / 144W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 60/72/120/144pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions L488*W330*186 / L244*W330*186


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-TWZ60-M2-C1 L488*W330*186 DC24V 120W Single Color ON/OFF
    CTH-TWZ60-M2-C1 L488*W330*186 AC220V 120W Single Color ON/OFF
    CTL-TWZ72-M2-C1 L488*W330*186 DC24V 144W Single Color ON/OFF
    CTH-TWZ72-M2-C1 L488*W330*186 AC220V 144W Single Color ON/OFF
    CTL-TWZ60-M2-D3 L488*W330*186 DC24V 120*1.5W RGB DMX512
    CTL-TWZ60-M2-D4 L488*W330*186 DC24V 120*2W RGBW DMX512
    CTL-TWZ72-M2-D3 L488*W330*186 DC24V 144*1.5W RGB DMX512
    CTL-TWZ72-M2-D4 L488*W330*186 DC24V 144*2W RGBW DMX512
    CTL-TWZ30-M2-C1 L244*W330*186 DC24V 60W Single Color ON/OFF
    CTH-TWZ30-M2-C1 L244*W330*186 AC220V 60W Single Color ON/OFF
    CTL-TWZ36-M2-C1 L244*W330*186 DC24V 72W Single Color ON/OFF
    CTH-TWZ36-M2-C1 L244*W330*186 AC220V 72W Single Color ON/OFF
    CTL-TWZ30-M2-D3 L244*W330*186 DC24V 60*1.5W RGB DMX512
    CTL-TWZ30-M2-D4 L244*W330*186 DC24V 60*2W RGBW DMX512
    CTL-TWZ36-M2-D3 L244*W330*186 DC24V 72*1.5W RGB DMX512
    CTL-TWZ36-M2-D4 L244*W330*186 DC24V 72*2W RGBW DMX512
