Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Supply Ability :
15000 Pieces Per Month
Production Capacity :
Full production lines, support large project orders
Delivery Time :
3‑7 working days
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
China
Design Service :
Offer lighting, optical & structural design for projects
Brand Name :
Crane
Sample Service :
Samples offered for quality evaluation
MOQ :
1
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Description

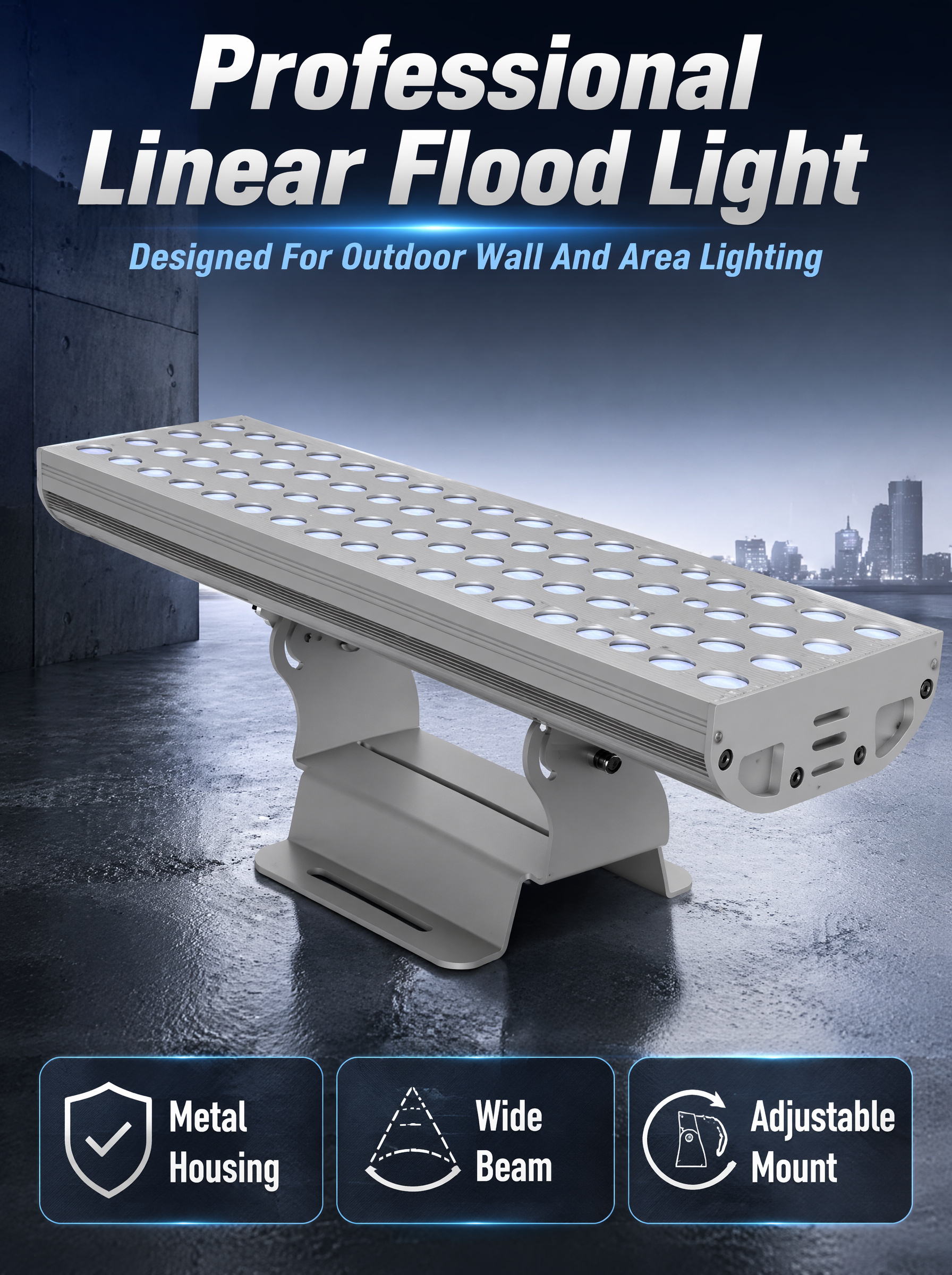

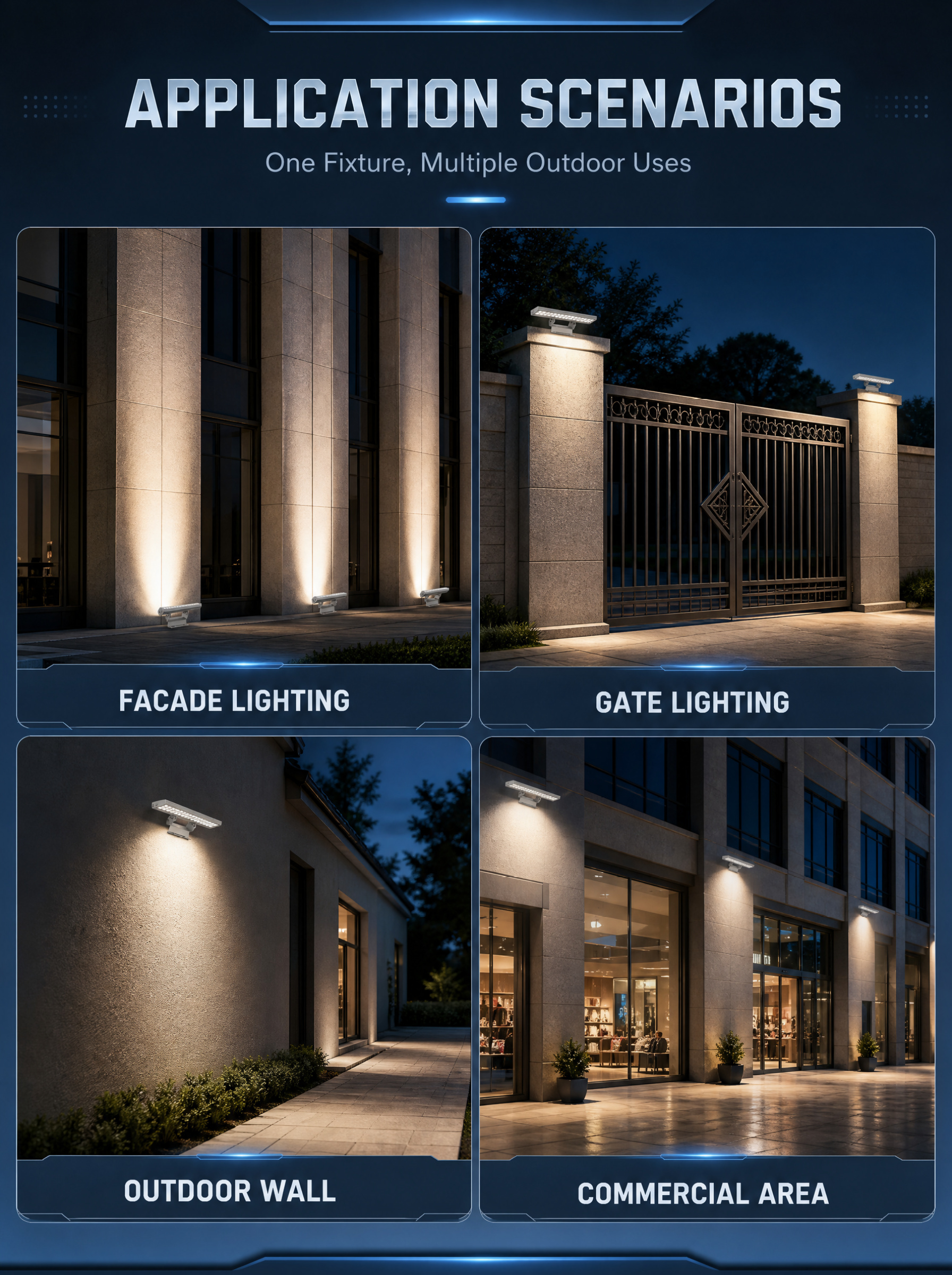

  • This single-head flood light features a streamlined independent body sized L488*W155*H186mm, available in 60W and 72W high-power specifications. It supports DC24V safety low voltage and AC220V mains voltage, equipped with monochrome constant lighting and DMX512-controlled RGB/RGBW dynamic modes, perfectly suited for single-point building wall washing, architectural accent lighting and medium-scale landscape nightscape projects.

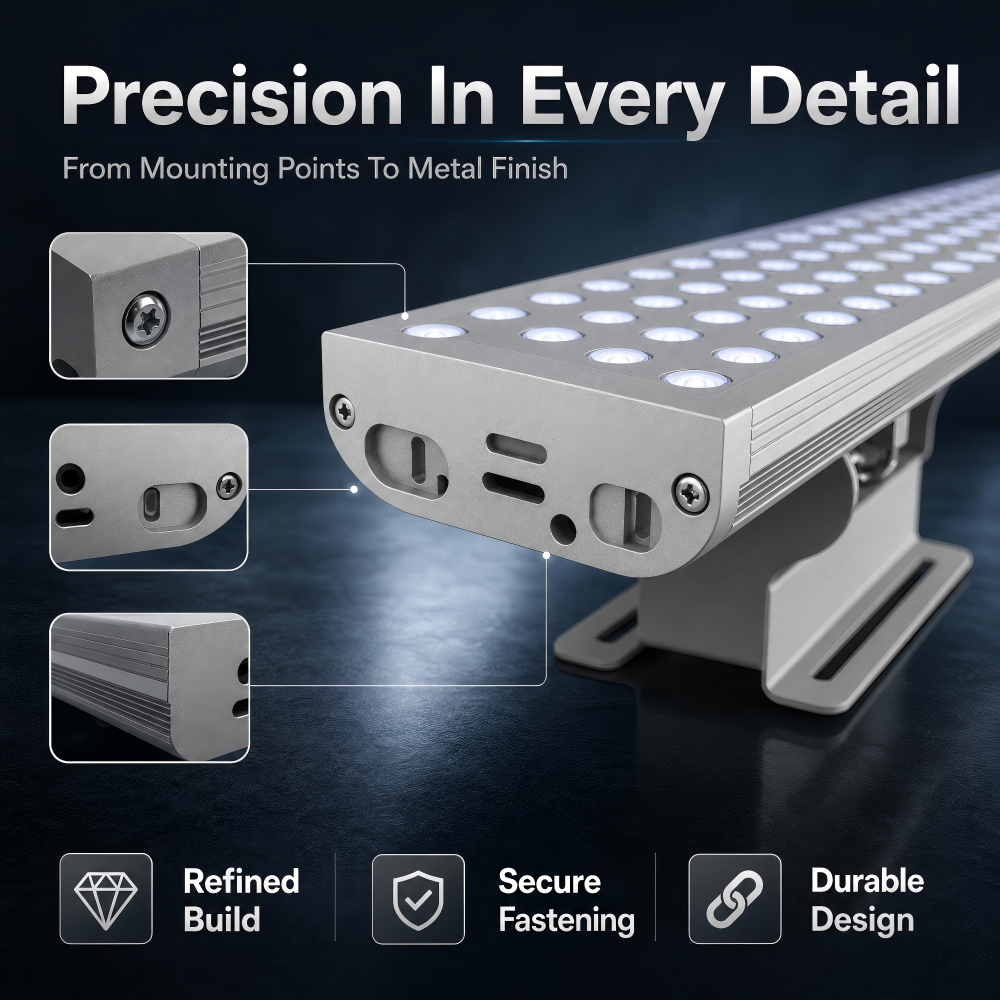

    Adopting integrated die-cast aluminum monocoque structure with professional fin-type heat dissipation design, the lamp rapidly releases internal heat during long-term high-power operation and effectively prevents brightness attenuation. Precise overall sealing ensures excellent waterproof and dustproof performance, resisting outdoor UV aging and temperature changes to maintain stable all-weather outdoor operation.
    The series provides complete light source configurations to meet diverse engineering design needs. Standard monochrome LEDs deliver uniform and flicker-free steady illumination for conventional static lighting. RGB three-in-one and RGBW four-in-one light sources achieve rich color conversion, supporting DMX512 system programming for gradient, dynamic flashing and customized night scene effects.
    Compact single-body structure features flexible installation and strong scene adaptability for scattered and partitioned lighting layouts. Standard modular design simplifies on-site assembly and daily component replacement, greatly reducing project construction and maintenance costs. We provide stable bulk shipment and flexible OEM & ODM customization for global landscape contractors and lighting wholesale partners.
  • Product Specifications
  • Voltage DC24V / AC220V IP Rating IP65 / IP66
    Power

    60W / 72W / 90W / 120W

    		 Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45° Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 60/72pcs OSRAM LEDs Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512 CRI Ra80 / Ra90
    Segment Control 1‑segment Dimensions L488*W155*186

  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-TWZ60-M1-C1 L488*W155*186 DC24V 60W Single Color ON/OFF
    CTH-TWZ60-M1-C1 L488*W155*186 AC220V 60W Single Color ON/OFF
    CTL-TWZ72-M1-C1 L488*W155*186 DC24V 72W Single Color ON/OFF
    CTH-TWZ72-M1-C1 L488*W155*186 AC220V 72W Single Color ON/OFF
    CTL-TWZ60-M1-D3 L488*W155*186 DC24V 60*1.5W RGB DMX512
    CTL-TWZ60-M1-D4 L488*W155*186 DC24V 60*2W RGBW DMX512
    CTL-TWZ72-M1-D3 L488*W155*186 DC24V 72*1.5W RGB DMX512
    CTL-TWZ72-M1-D4 L488*W155*186 DC24V 72*2W RGBW DMX512
