Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Sample Service :
Samples offered for quality evaluation
Supply Ability :
15000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
China
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
Crane
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1
Production Capacity :
Full production lines, support large project orders
Description

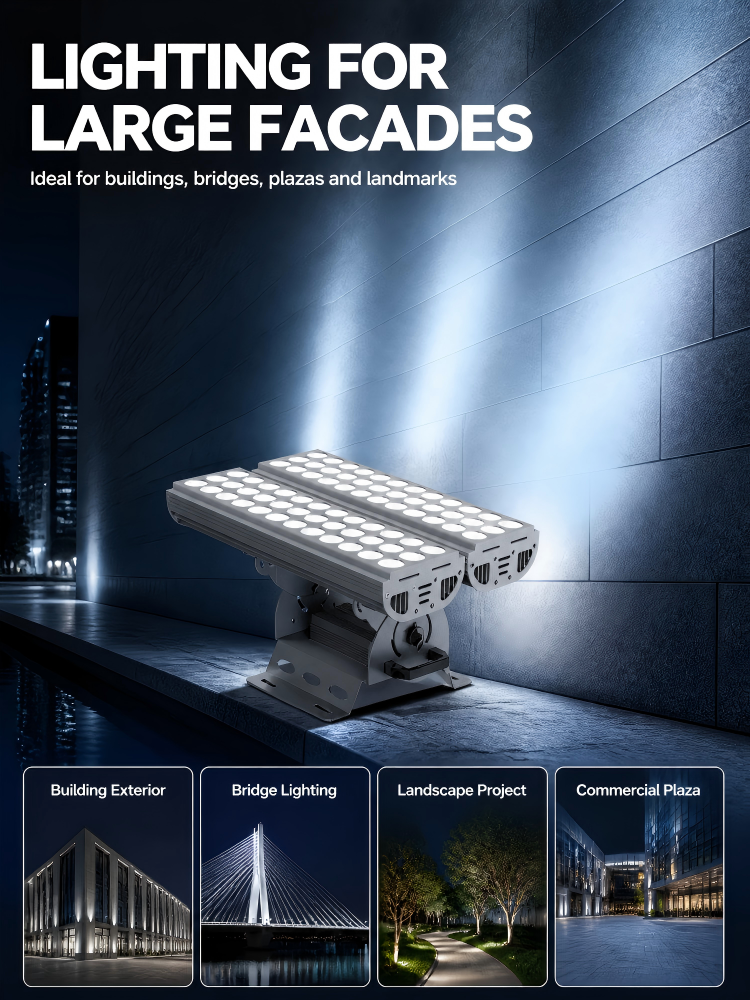

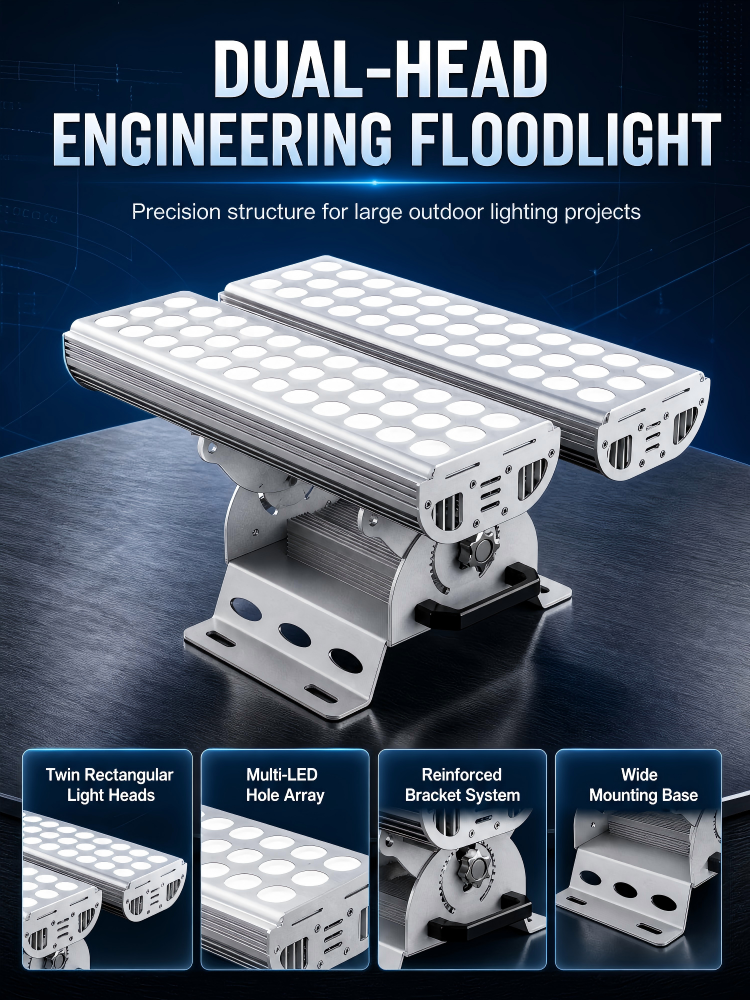

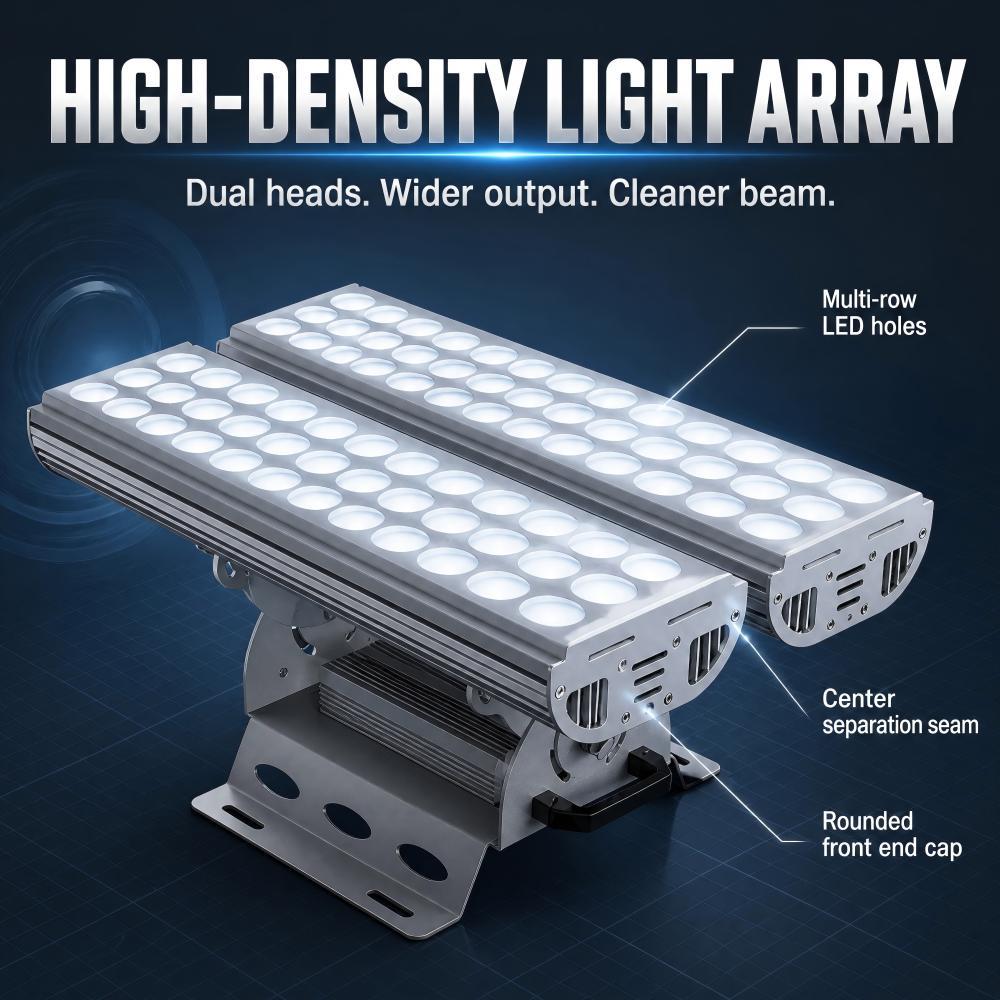

  • This dual-module 3-degree narrow beam spotlight comes in two specifications: L605*W430*H300mm with 72pcs chips. It supports DC24V safety low voltage and AC220V mains voltage, applicable to distant landmark highlighting, tall building vertical outlining and scenic focal point lighting for large landscape projects.

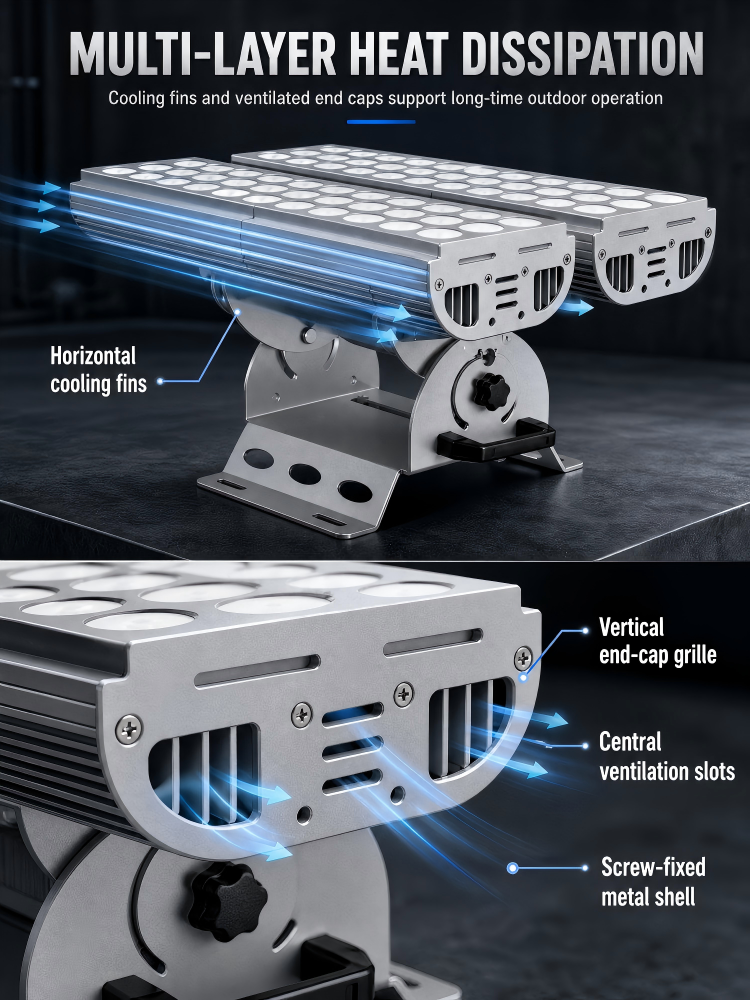

    Adopting double-group die-cast aluminum split structure with enlarged fin heat dissipation area, it rapidly exhausts heat under long-hour high-power operation to avoid brightness attenuation. Precision sealing realizes reliable outdoor waterproof and dustproof performance, resisting UV corrosion and drastic temperature changes for stable year-round outdoor operation.

    It supplies diversified light source collocations to satisfy varied project demands. monochrome version delivers concentrated steady narrow beam light; RGB three-in-one and RGBW four-in-one modules present rich layered colors. Fully compatible with DMX512 system, it achieves programmable color transition and dynamic landmark nightscape effects.

    Professional 3° optical lens centralizes light beam for ultra-long projection distance without stray light waste. Adjustable dual bracket enables flexible irradiation angle calibration. Modular design simplifies installation and maintenance to cut engineering costs. Stable bulk supply and OEM & ODM customization are offered for global lighting contractors and wholesale partners.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    216W / 432W / 576W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 3°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 72pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions L605*W4300*H300MM


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-BYZ36J-M2-C1 L605*W4300*H300MM DC24V 72*3W Single Color ON/OFF
    CTH-BYZ36J-M2-C1 L605*W4300*H300MM AC220V 72*3W Single Color ON/OFF
    CTL-BYZ36J-M2-D3 L605*W4300*H300MM DC24V 72*6W RGB DMX512
    CTL-BYZ36J-M2-D4 L605*W4300*H300MM DC24V 72*8W RGBW DMX512
