Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Design Service :
Offer lighting, optical & structural design for projects
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
Crane
Supply Ability :
15000 Pieces Per Month
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

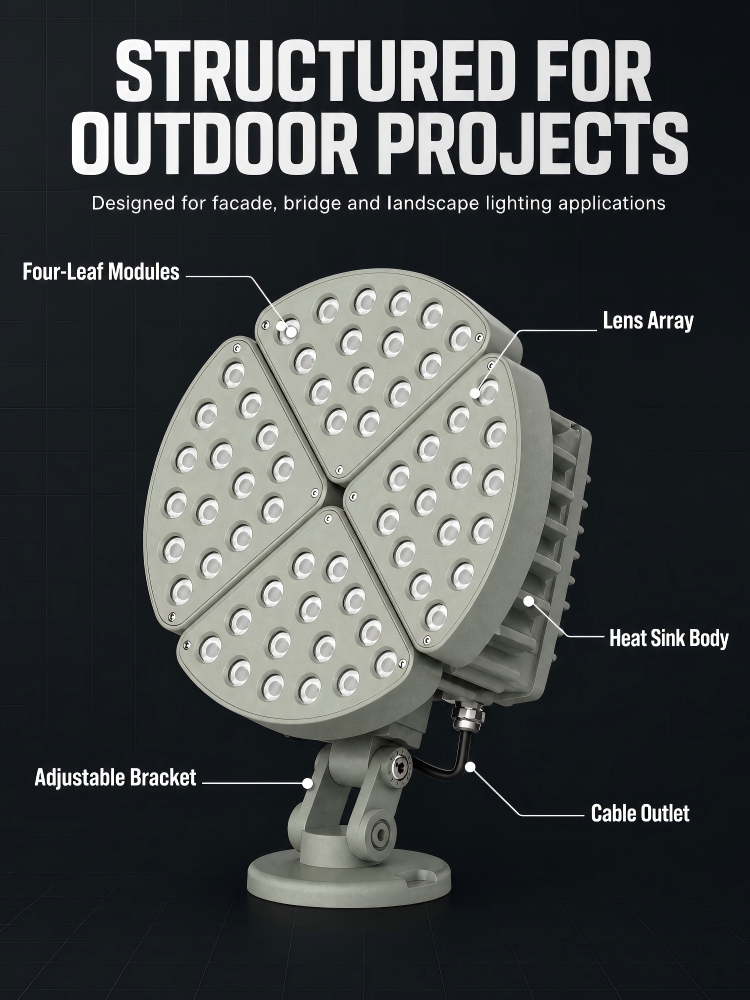

  • This landscape light features a classic circular housing with unified Φ318*H388 dimension, providing 48W, 60W and 72W high-power output options. Dual voltage solutions of DC24V low voltage safety type and AC220V mains voltage type are available, supporting static monochrome constant lighting and DMX512 intelligent dynamic lighting for large building facades, square landscapes and municipal night scene projects.

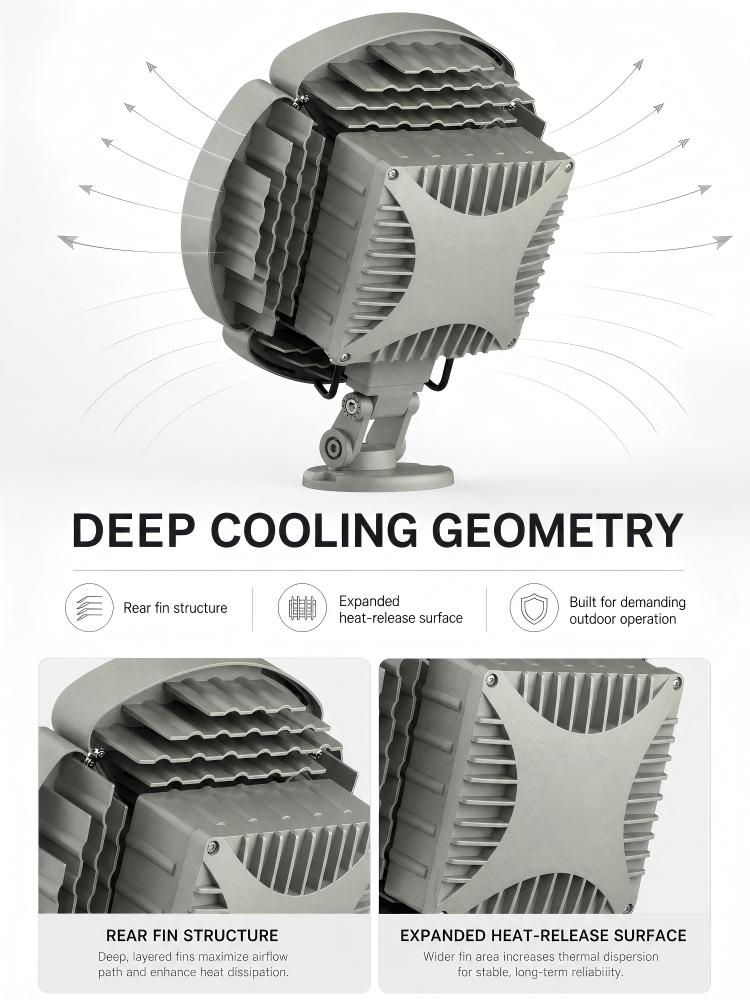

    Designed with integral high-strength die-cast aluminum structure, the lamp adopts an optimized vertical heat dissipation cavity to rapidly reduce operating temperature and avoid luminous decay. With professional outdoor sealing technology, it achieves excellent waterproof and dustproof capacity, resisting long-term UV corrosion and extreme weather changes for stable all-weather outdoor operation.

    It equips with multi-grade professional light source configurations to meet high-standard lighting demands. The monochrome version delivers ultra-uniform steady light for large-area static lighting. RGB three-in-one and RGBW four-in-one light sources present richer color gamut, realizing programmable color transition and dynamic flowing effects via standard DMX512 control system.

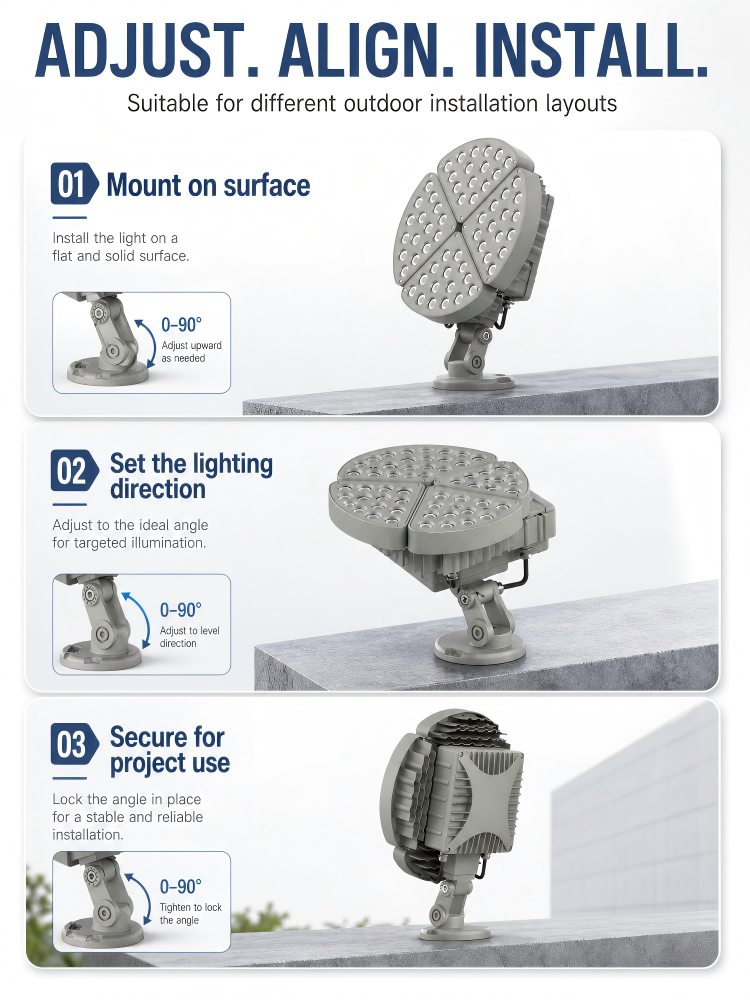

    The elegant round outline offers high visual compatibility with various architectural styles. Standard modular structure simplifies on-site installation and daily maintenance, greatly saving engineering time and cost. We provide sufficient bulk supply capacity and flexible OEM & ODM customization services for global professional landscape contractors and lighting wholesalers.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power 48W / 60W / 72W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 48/60/72pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions Φ318*H388


    Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-AGZ18-M4-C1 Φ318*H388 DC24V 72W Single Color ON/OFF
    CTH-AGZ18-M4-C1 Φ318*H388 AC220V 72W Single Color ON/OFF
    CTL-AGZ15-M4-C1 Φ318*H388 DC24V 60W Single Color ON/OFF
    CTH-AGZ15-M4-C1 Φ318*H388 AC220V 60W Single Color ON/OFF
    CTL-AGZ12-M4-C1 Φ318*H388 DC24V 48W Single Color ON/OFF
    CTH-AGZ12-M4-C1 Φ318*H388 AC220V 48W Single Color ON/OFF
    CTL-AGZ18-M4-D3 Φ318*H388 DC24V 72*1.5W RGB DMX512
    CTL-AGZ18-M4-D4 Φ318*H388 DC24V 72*2W RGBW DMX512
    CTL-AGZ15-M4-D3 Φ318*H388 DC24V 60*1.5W RGB DMX512
    CTL-AGZ15-M4-D4 Φ318*H388 DC24V 60*2W RGBW DMX512
    CTL-AGZ12-M4-D3 Φ318*H388 DC24V 48*1.5W RGB DMX512
    CTL-AGZ12-M4-D4 Φ318*H388 DC24V 48*2W RGBW DMX512
