Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Supply Ability :
15000 Pieces Per Month
Design Service :
Offer lighting, optical & structural design for projects
Delivery Time :
3‑7 working days
Warranty Period :
3‑5 years warranty under normal use
Place of Origin :
China
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
Crane
Sample Service :
Samples offered for quality evaluation
MOQ :
1
Production Capacity :
Full production lines, support large project orders
Description

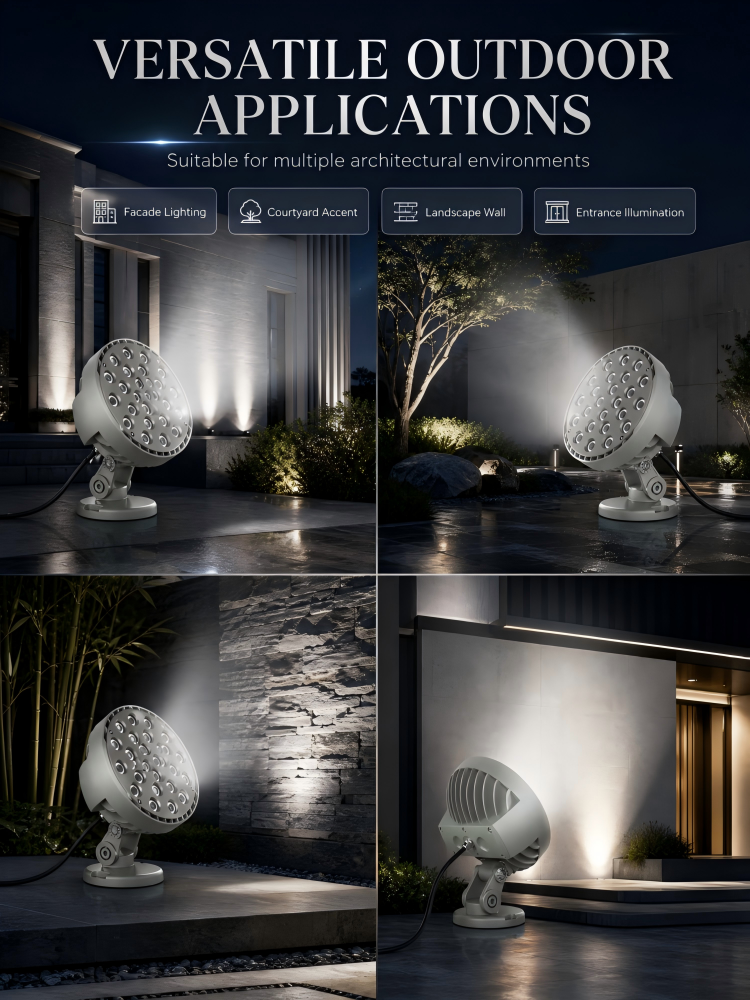

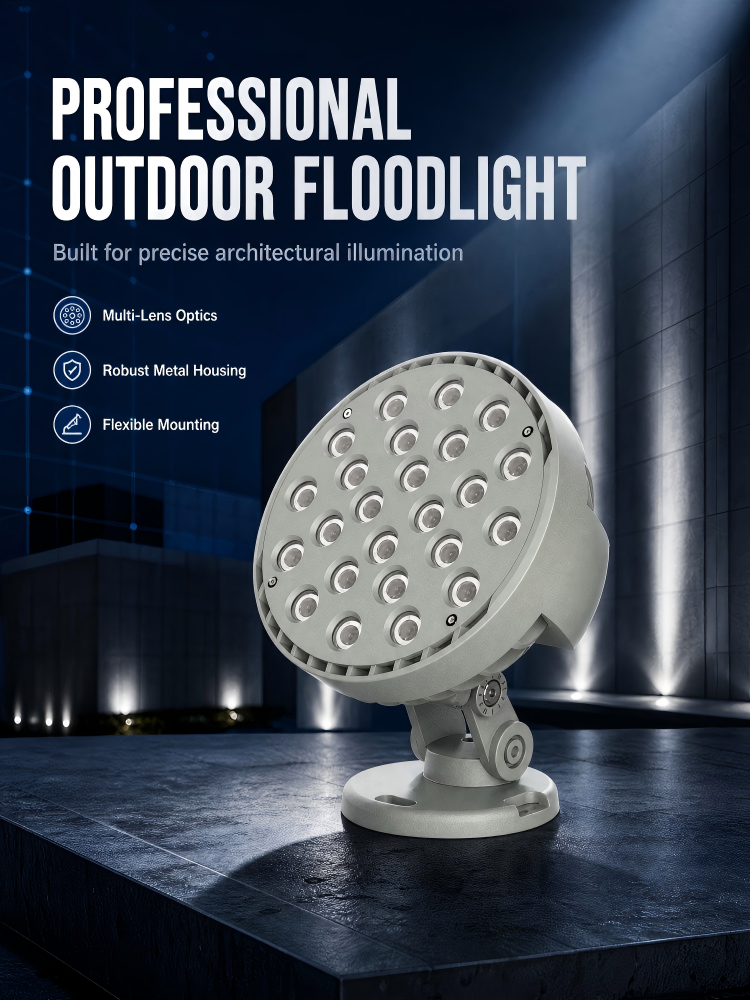

  • Our WYZ LED flood light features fixed size Φ196*H160mm, equipped with 24W and 36W mainstream power options to adapt most outdoor wall lighting needs. Two power modes including DC24V safety voltage and AC220V commercial voltage are optional, including basic constant monochrome lighting and DMX512 programmable full-color modes, suitable for commercial plazas, apartment buildings and park wall decorative illumination.

    Adopting durable die-cast aluminum casing plus annular heat dissipation design, the lamp ensures efficient heat dissipation during long-hour operation and avoids brightness decline. Standard outdoor sealing process brings qualified waterproof and dustproof performance, capable of coping with various outdoor climates and lowering product failure rate for long-term use.

    Complete light source combinations lower customers’ overall matching cost. Basic Single color model meets conventional static lighting requirements; RGB three-in-one and RGBW four-in-one models realize abundant dynamic color effects via DMX512 control system, satisfying diverse commercial night scene upgrading demands with cost-effective collocation.

    Universal round appearance possesses strong scene adaptability and reduces design matching difficulty for projects. Modular production simplifies field installation and maintenance work to save labor costs. We have sufficient inventory for bulk orders and accept OEM parameter adjustment services for global lighting wholesalers and commercial project purchasers.

  • Product Specifications

  • Voltage DC24V / AC220V
    		IP Rating IP65 / IP66
    Power

    24W 36W 48W
    		Housing Material Extruded Aluminum Profile, Grey
    Light Color 2000-6500K / RGB / RGBW
    		Cable & Connector Rubber Round Cable / SK18 5‑core Solid Pin Connector
    Beam Angle 10° / 15° / 20° / 25° / 30° / 45°
    		Cover Silk‑screen Aperture Tempered Glass
    LED Brand & Quantity 24/36pcs OSRAM LEDs
    		Luminous Efficacy 80lm/W
    Control Mode ON/OFF / DMX512
    		CRI Ra80 / Ra90
    Segment Control 1‑segment
    		Dimensions Φ196*H160


  • Available Models

    Model No. Size Voltage Power Light Source Effect / Control Mode
    CTL-WYZ24-M1-C1 Φ196*H160 DC24V 24W Single Color ON/OFF
    CTH-WYZ24-M1-C1 Φ196*H160 AC220V 24W Single Color ON/OFF
    CTL-WYZ36-M1-C1 Φ196*H160 DC24V 36W Single Color ON/OFF
    CTH-WYZ36-M1-C1 Φ196*H160 AC220V 36W Single Color ON/OFF
    CTL-WYZ24-M1-D3 Φ196*H160 DC24V 24*1.5W RGB DMX512
    CTL-WYZ24-M1-D4 Φ196*H160 DC24V 24*2W RGBW DMX512
    CTL-WYZ36-M1-D3 Φ196*H160 DC24V 36*1.5W RGB DMX512
    CTL-WYZ36-M1-D4 Φ196*H160 DC24V 36*2W RGBW DMX512
