1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Specifications
material :
SUS304, SUS304L, SUS316L
voltage :
220V/380V, Customized
core components :
Motor, PLC
Homogenizing Speed :
0-3000 R/Min
Motor Type :
DC Motor
warranty :
1 Year
video outgoing-inspection :
Provided
machinery test report :
Provided
Electric Cabinet :
Bottons or Touch Screen (Optional)
material processed :
Chemicals, Food
Capacity :
1000 L, 50-10000L
Mixer Speed :
0-63rpm
Supply Ability :
10000 set
product type :
self care/ home care
key selling points :
Automatic
MOQ :
1
Price :
$3,000-4,000
range of spindle speed(r.p.m) :
0 - 63 r.p.m
Type :
Fixed Type
Place of Origin :
Guangzhou
Operating type :
Continuous Operating
Core Components :
Motor, PLC, Engine
Brand Name :
COSMATI
Application Area :
Chemical
weight (kg) :
850
Mixing Drum Shape :
Drum
additional capabilities :
Granulating,Drying,COATING,Mixing
Power (kW) :
11kw(14.75hp)
Delivery Time :
7 work days
Payment Terms :
TT
Layout Type :
Verticle
Packaging Details :
wooden cases
mixer type :
Agitator,Homogenizer
Configuration :
Vertical
dimension(l*w*h) :
Customized
Description

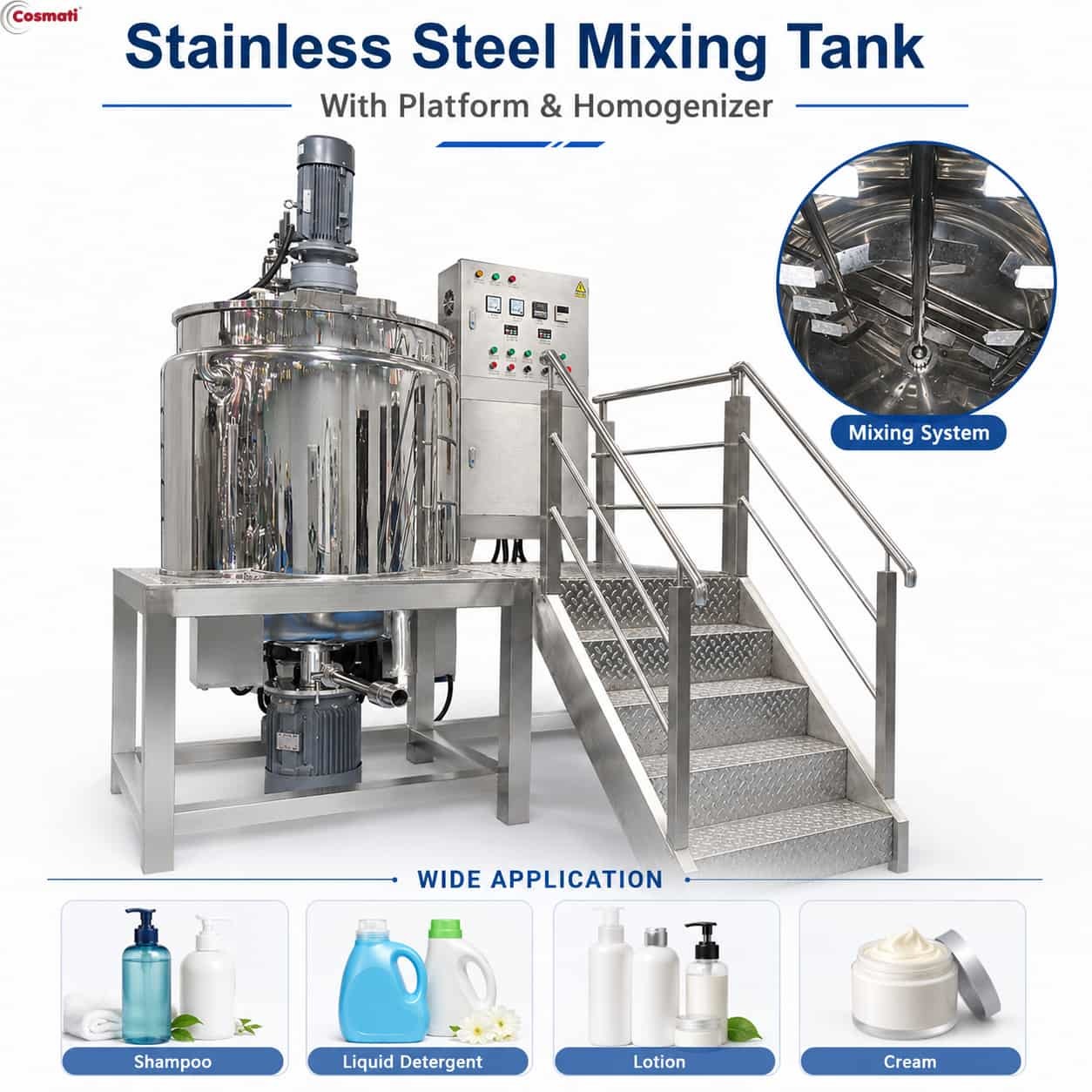

1000L Mixing Tank with Agitator Mayonnaise Tomato Sauce Heated Boiler Blender Homogenizer Mixing Equipment

Introduction

The 1000L Stainless Steel Homogenizing Mixing Tank is designed for efficient mixing, heating, dispersing and homogenizing of liquid and semi-viscous materials.

The machine combines a low-speed mixing system and a high-speed homogenizer in one processing tank. The mixing paddle works with a PTFE wall scraper to continuously move material from the tank wall, improving mixing uniformity and heat transfer. The high-shear homogenizer provides powerful dispersion and homogenization at speeds up to 3000 rpm.

Product-contact parts are made of SS316L stainless steel, providing good corrosion resistance and easy cleaning. The machine adopts a vertical fixed structure with an operating platform, making it suitable for medium and large batch production.

The standard model is 1000L, while capacities from 50L to 10000L can be customized according to production requirements.

It can be configured for mayonnaise, tomato sauce, sauces, shampoo, liquid detergent, lotion, cream and other food or daily chemical products according to the required processing standard.

Key Features

  1. 1000L standard capacity supports medium and large batch production.
  2. Customized capacities from 50L to 10000L are available.
  3. SS316L stainless steel product-contact parts provide corrosion resistance and easy cleaning.
  4. Low-speed agitator provides stable and uniform material circulation.
  5. PTFE wall scraper reduces material buildup on the inner tank wall.
  6. High-shear homogenizer provides efficient dispersing and homogenizing.
  7. Homogenizing speed reaches up to 3000 rpm.
  8. Delta inverter provides adjustable speed control.
  9. Integrated heating system supports temperature-required production processes.
  10. Vertical fixed structure provides stable operation during production.
  11. Operating platform and stairs make inspection and operation more convenient.
  12. Push-button control or optional touch screen control is available.

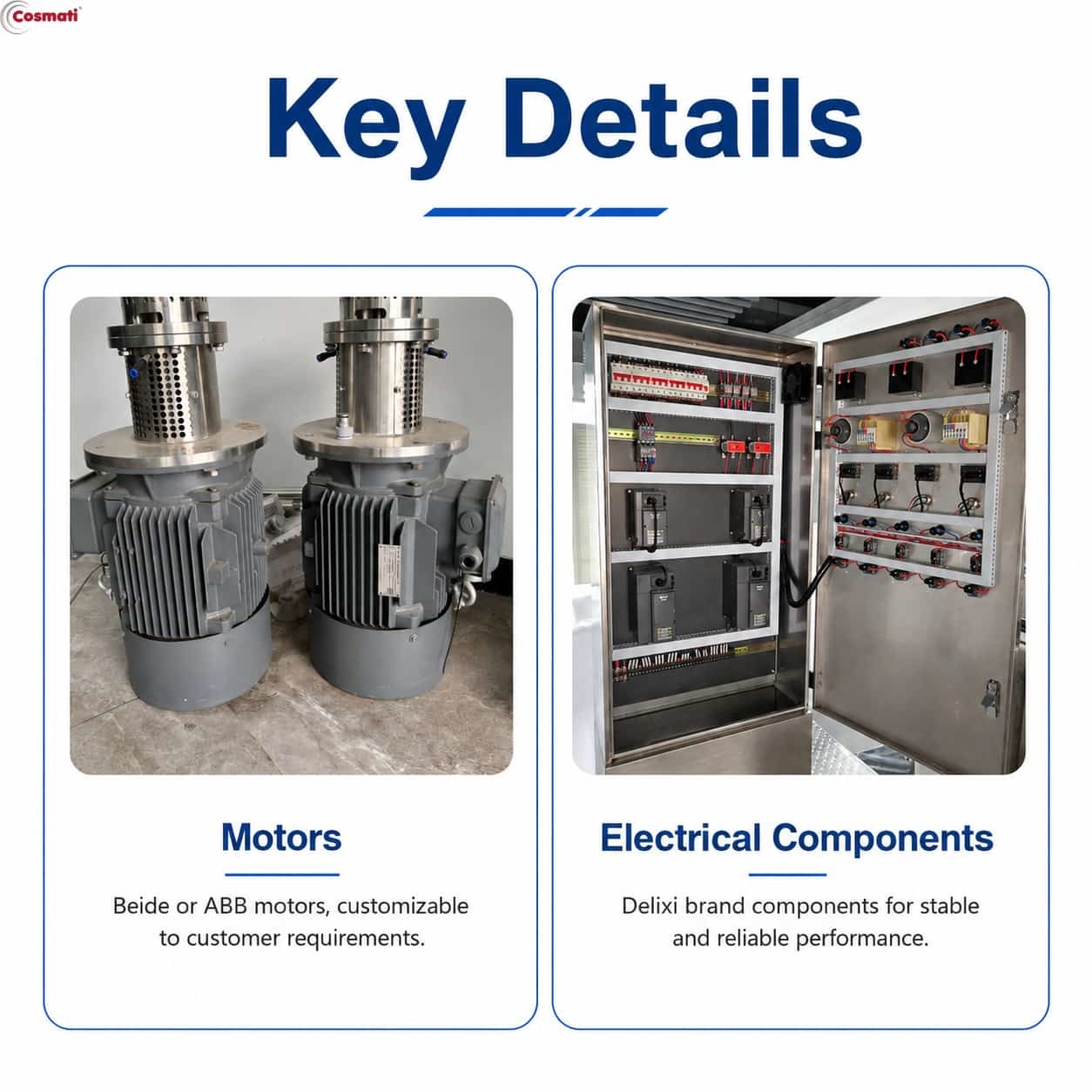

  13. ABB Beide or explosion-proof motors can be configured according to customer requirements.
Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm



1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
As a professional cosmetic machinery manufacturer with 17-year experience, we can provide you with excellent production line(from producing to packing):

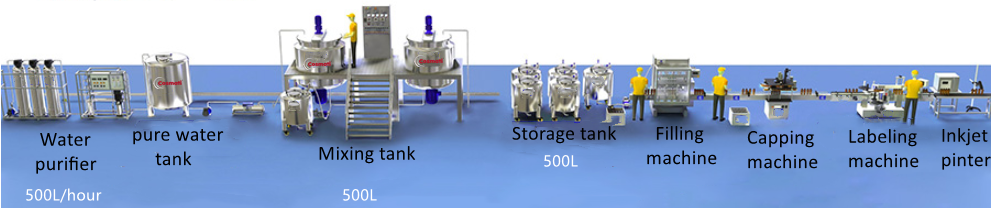

Raw water tank-Water Treatment-Pure water tank-Liquid detergent mixer-Filling machine-Capping machine-Labeling machine-Inkjet printer
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Below is a semi-automatic detergent production line, it is suitable for starter in this field.
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Water Treatment Equipment
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Mixer
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender

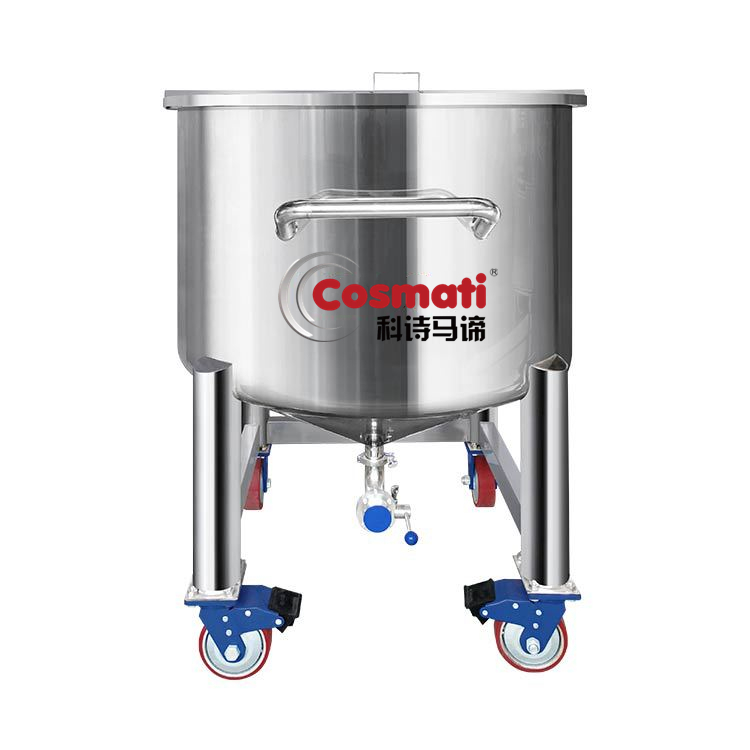

Movable Storage Tank
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Semi-Automatic Filling Machine
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Table Type Capping Machine
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Semi-Automatic Labeling Machine
Factory profile
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Engineer case
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Trade show participation
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender
Packaging & shipping specifications
1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender

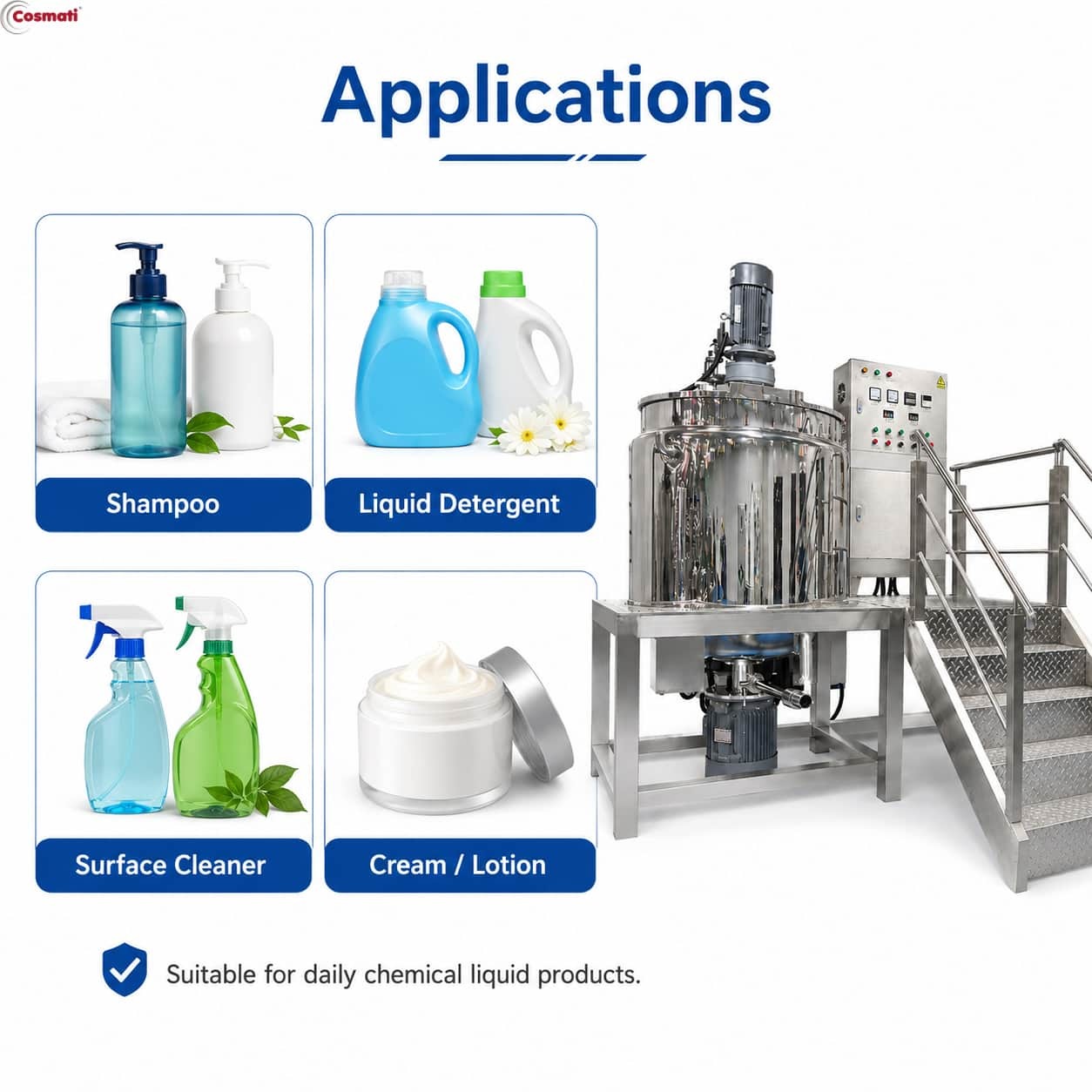

Application

1000L Stainless Steel Homogenizing Mixing Tank Mayonnaise Tomato Sauce Blender

FAQ

1. What products can this 1000L mixing tank process?

The machine can be configured for mayonnaise, tomato sauce, ketchup, sauces, shampoo, detergent, liquid soap, lotion, cream and other liquid or semi-viscous products.

2. Is the machine suitable for mayonnaise and tomato sauce?

Yes. The mixing and homogenizing combination can be configured for mayonnaise, tomato sauce and similar products. The exact mixer, homogenizer and sanitary configuration should be selected according to the product viscosity and formulation.

3. What is the standard tank capacity?

The standard model shown is 1000L.

Customized capacities from 50L to 10000L are also available.

4. Which parts are made from SS316L?

According to the equipment configuration, product-contact parts are made from SS316L stainless steel.

The exact material configuration can be confirmed before production according to customer requirements.

5. What is the mixer speed?

The mixer operates at approximately 0–63 rpm according to the shown machine configuration.

Speed can be adjusted using an inverter.
