Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Specifications
material :
SUS304, SUS316
dimension(l*w*h) :
Referring
Capacity :
100 L, 50L-20000L(Can be customized)
Jacket :
3 Layers 2 Jackets
Supply Ability :
10000 set
additional capabilities :
Milling
key selling points :
High Productivity
core components :
Motor, Gear, Gearbox, Bearing, Other
video outgoing-inspection :
Provided
Homogenizer :
0-3000rpm with inverter
MOQ :
1
material processed :
Chemicals, shampoo
Configuration :
Mobile
Stirrer type :
Paddling Stirring
product type :
Cosmetic
machinery test report :
Provided
range of spindle speed(r.p.m) :
0 - 60 r.p.m
Brand Name :
Cosmati
Price :
€2,654.59-3,539.45
Heating methord :
electricity
Delivery Time :
7 work days
weight (kg) :
280
Barrel Volume :
100L
voltage :
220V/380V
warranty :
1 Year
Keyword :
100L shampoo mixing machine
mixer type :
Agitator
Product name :
100L Mixing Tank Heated Mixer
Packaging Details :
wooden cases
Place of Origin :
Guangdong, China
Power (kW) :
9.5 kW
Application :
Liquid, Toilet Soap, Hand Sanitizer, Shampoo
Material :
Stainless Steel 304 / SUS316L
Payment Terms :
TT
Description
50L 100L 200L Shampoo Liquid Soap Heating Double Jacketed Mixing Tank With Explosion-proof Motor

Introduction

The Double Jacket Stainless Steel Mixing Tank is designed for batch mixing, blending and temperature-controlled processing of liquid and semi-viscous products.

The top-mounted agitator operates at an adjustable speed of 0–60 rpm, providing steady circulation without excessive high-speed shearing. This makes the tank suitable for products such as shampoo, liquid soap, shower gel, body wash and liquid detergent.

The double-jacket structure allows the production process to be combined with heating or cooling according to formulation requirements. The machine is equipped with an electrical control panel for convenient mixing and temperature adjustment, while the bottom sanitary outlet helps simplify product discharge after processing.

Its compact mobile frame is especially suitable for flexible small and medium batch production where different formulations are produced in the same workshop.

Features

  1. Double-jacket tank design supports temperature-controlled mixing processes.
  2. Adjustable agitation speed of 0–60 rpm provides stable blending for liquid and semi-viscous formulations.
  3. Low-speed agitation is suitable for products where excessive foaming or aggressive high-shear mixing is not required.
  4. SUS304 or SUS316 stainless steel options are available according to formulation requirements.
  5. Electrical control panel integrates mixing and temperature-related operation for easier process control.
  6. Bottom sanitary outlet allows convenient transfer and discharge of finished material.
  7. Mobile frame with caster wheels makes the tank easier to reposition between different production areas.
  8. 100L reference capacity is suitable for flexible batch production, while larger capacities can be customized according to production needs.

Details

Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm

Mixing motor
Adopts ABB explosion-proof motor, motor is optional. Mixing speed is 0-60rpm with a inverter

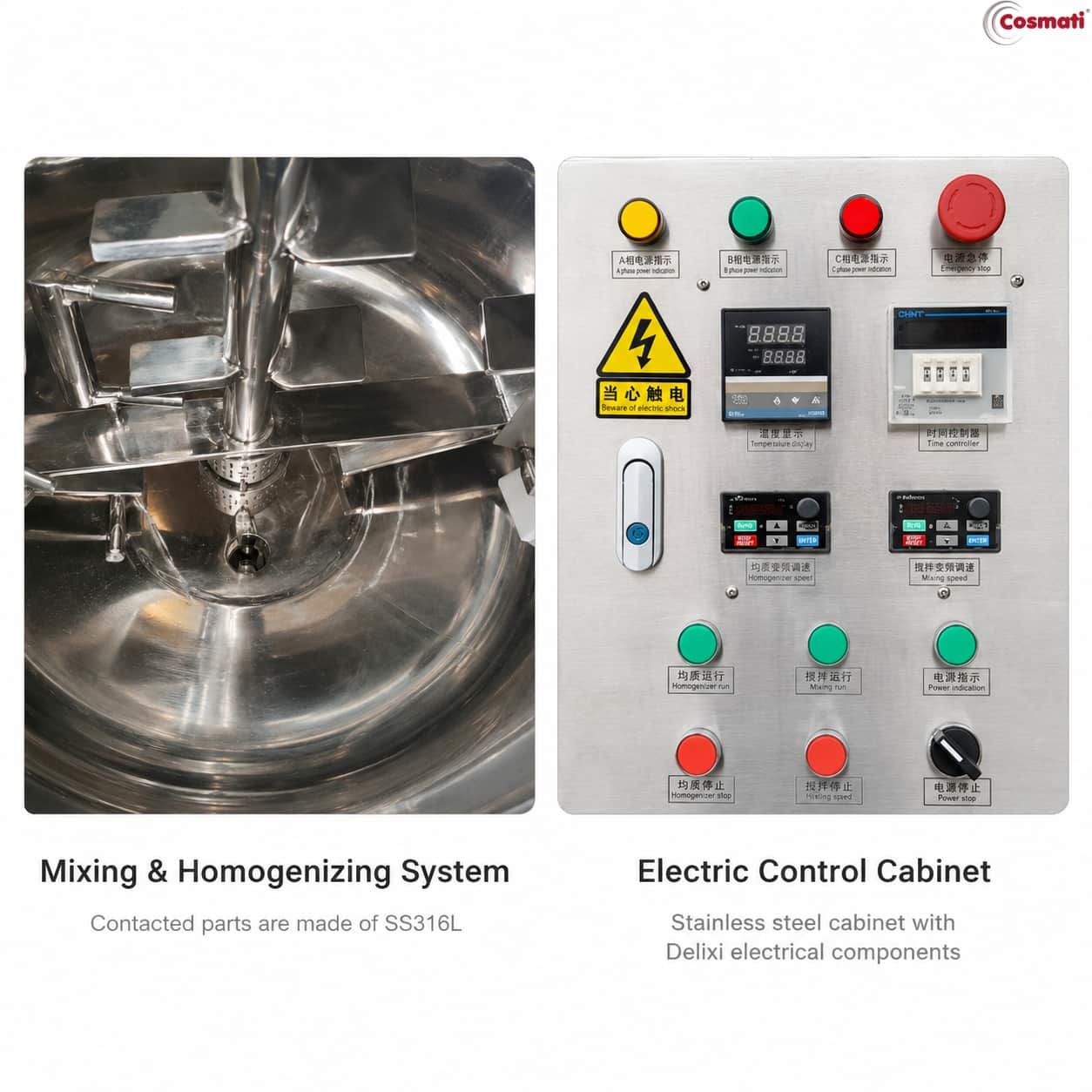

Electric control cabinet
The electrical appliance adopts Delixi brand, and the shell material is stainless steel
Electric heater
Adopts electric heating method, tap water cooling
Mixing & Homogenizing system
Contacted parts are made of SS316L

As a professional cosmetic machinery manufacturer with 18-year experience, we can provide you with excellent production line(from producing to packing):
Raw water tank-Water Treatment-Pure water tank-Liquid detergent mixer-Filling machine-Capping machine-Labeling machine-Inkjet printer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Below is a semi-automatic detergent production line, it is suitable for starter in this field.
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Water Treatment Equipment
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Movable Storage Tank
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Semi-Automatic Filling Machine
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Table Type Capping Machine
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Semi-Automatic Labeling Machine

Factory profile
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer


Engineer case
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer

Trade show participation
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer
Packaging & shipping specifications
Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer

Application

Stainless Steel Double Jacket Mixing Tank 50L 100L 200L Shampoo Liquid Soap Mixer

FAQ

Q1: What products are most suitable for this mixing tank?
A: It is mainly suitable for shampoo, liquid soap, shower gel, body wash, detergent and other low-to-medium viscosity liquid products.

Q2: What is the standard capacity of this model?
A: The machine shown uses a 100L reference configuration. Other capacities can be customized according to batch size.

Q3: Why does this machine use a low-speed agitator?
A: The 0–60 rpm agitator provides steady circulation and blending without excessive shear, making it suitable for many shampoo, detergent and liquid soap formulations.

Q4: Can this machine reduce foaming during mixing?
A: Compared with high-speed dispersing equipment, low-speed agitation can help avoid unnecessary air incorporation in many foaming formulations. Actual foam behavior still depends on the recipe and operating speed.

Q5: Does the machine support heating?
A: The double-jacket structure can be configured for heating according to the required production process.
