Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Specifications
material :
SUS304, SUS304L, SUS316L
voltage :
220V/380V, Customized
core components :
Motor, PLC
Homogenizing Speed :
0-3000 R/Min
Motor Type :
AC Motor
warranty :
1 Year
video outgoing-inspection :
Provided
material processed :
Chemicals, Food
Capacity :
100 L, 50-10000L
Mixer Speed :
0-60rpm
Packaging Details :
wooden cases
machinery test report :
Provided
Electric Cabinet :
Bottons or Touch Screen (Optional)
range of spindle speed(r.p.m) :
0 - 60 r.p.m
Type :
Fixed Type
Delivery Time :
7 work days
Application Area :
Chemical
Payment Terms :
TT
Brand Name :
COSMATI
Operating type :
Continuous Operating
Core Components :
Motor, PLC, Engine
Supply Ability :
10000 set
Place of Origin :
Guangzhou
product type :
self care/ home care
key selling points :
Automatic
weight (kg) :
280
Mixing Drum Shape :
Drum
MOQ :
1
additional capabilities :
Granulating,Drying,COATING,Mixing
Power (kW) :
6.3 kW(8.45hp)
Price :
$2,500-4,200
Layout Type :
Verticle
mixer type :
Agitator,Homogenizer
Configuration :
Mobile
dimension(l*w*h) :
Customized
Description
High Shear Homogenizing Tank Industrial Chemical Cosmetic Reactor Liquid Jacketed Mixer Detergent Heated Mixing Tank

Product Introduction

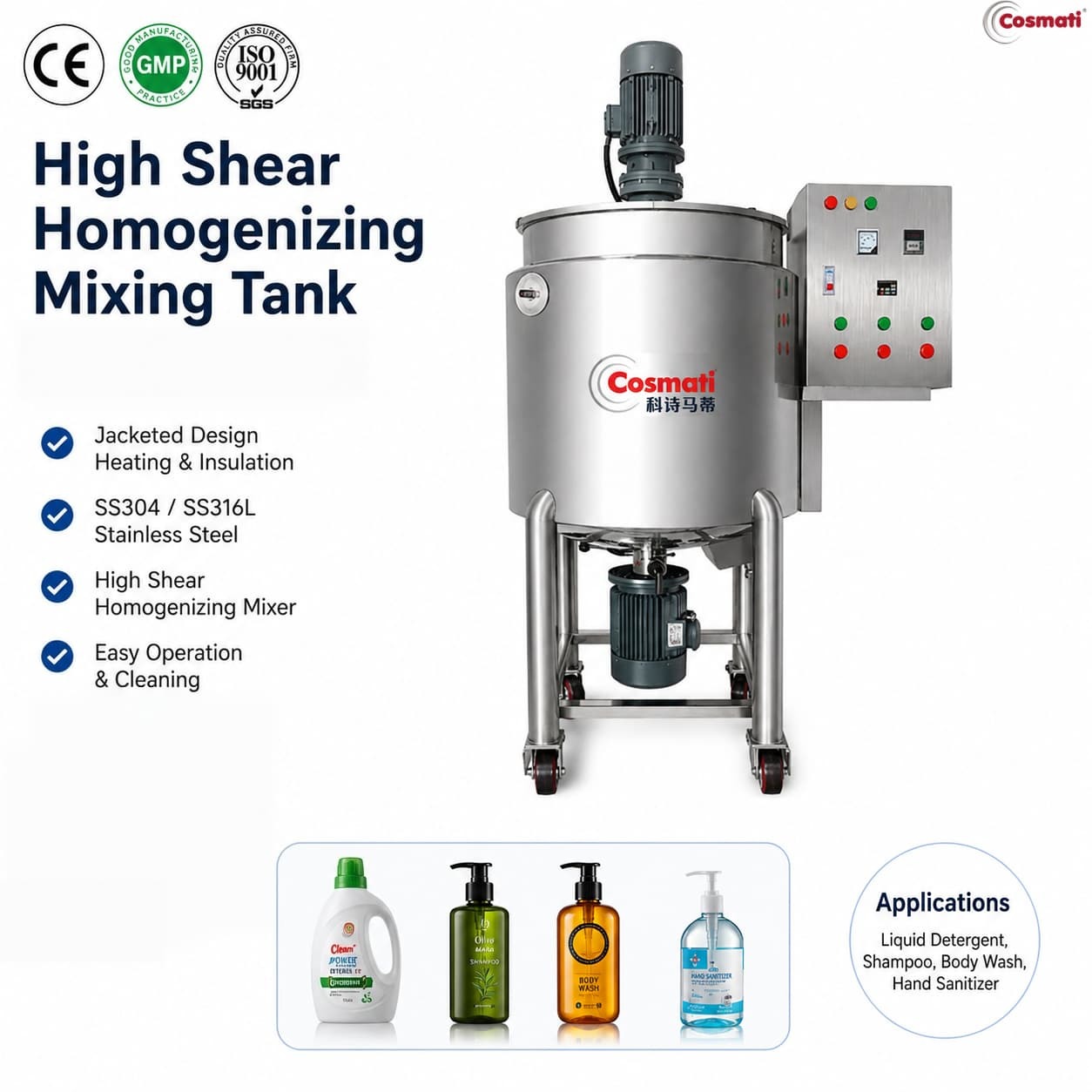

The 100L Stainless Steel Mixing and Homogenizing Tank is designed for batch mixing, blending, heating and homogenizing of liquid and medium-viscosity cosmetic and daily chemical products.

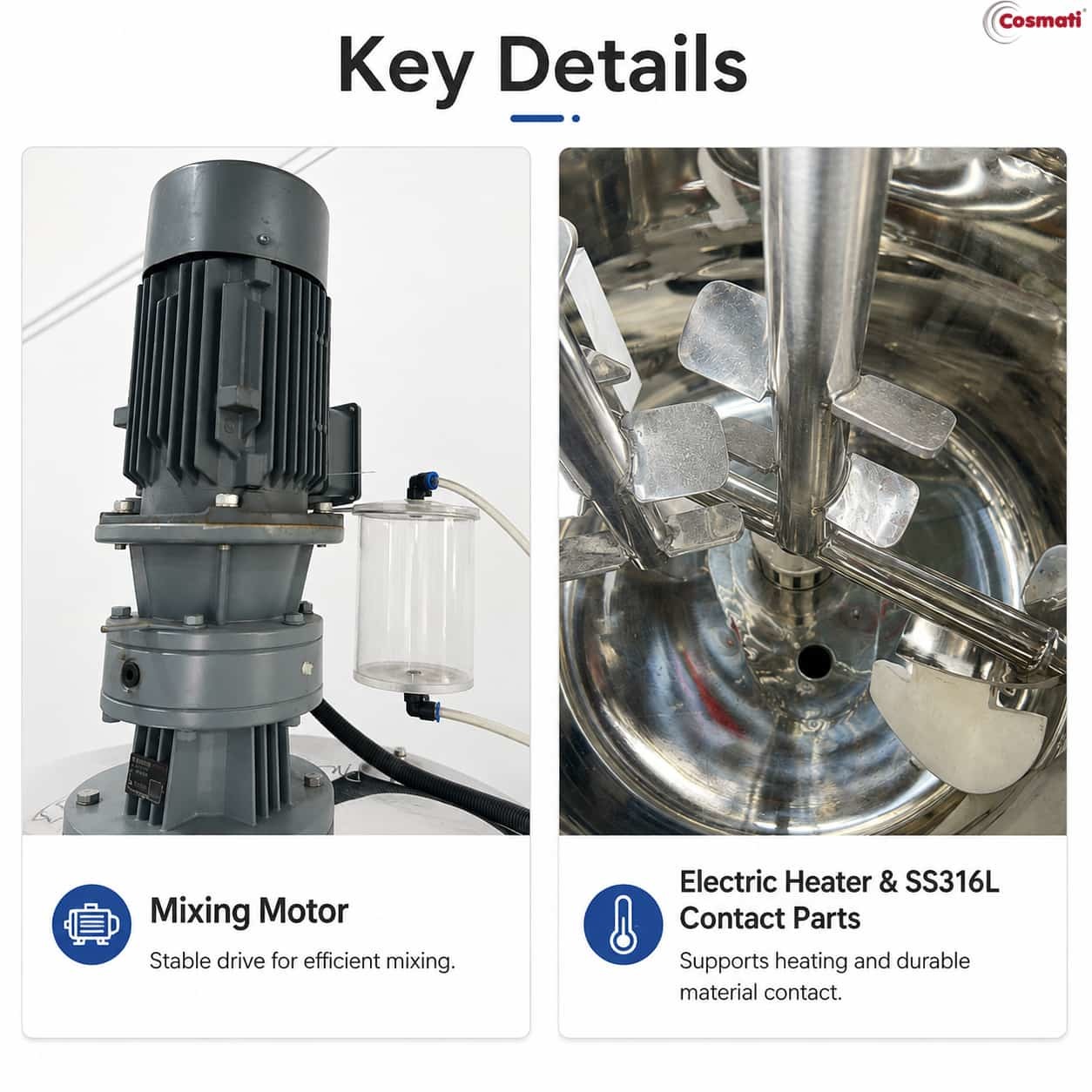

The machine combines a top-mounted low-speed agitator with a bottom high-speed homogenizer. The main agitator provides continuous material circulation and uniform mixing, while the bottom homogenizer provides stronger shear for dispersion and homogenization when required.

The tank is equipped with a jacketed structure for electric heating and water cooling according to the production process. Mixing speed can be adjusted by inverter, and the homogenizing system can operate at speeds up to approximately 3000 rpm depending on configuration.

The current machine is mounted on caster wheels, making it suitable for flexible small-to-medium batch production and convenient movement inside the workshop.

Features

  1. Low-speed top agitator provides stable and uniform bulk mixing.
  2. Bottom high-speed homogenizer supports stronger dispersion and homogenizing.
  3. Mixing speed is adjustable from approximately 0–60 rpm.
  4. Homogenizing speed can reach approximately 0–3000 rpm.
  5. Jacketed tank supports electric heating for temperature-controlled processing.
  6. Tap-water cooling can be used according to production requirements.
  7. SS316L product-contact parts are available according to the current specification.
  8. Independent electrical control cabinet provides convenient operation and parameter adjustment.
  9. Button control is standard, while touch-screen control can be selected as an option.
  10. Bottom outlet provides convenient product discharge and connection to downstream equipment.
  11. Mobile caster design allows easier movement and repositioning inside the workshop.

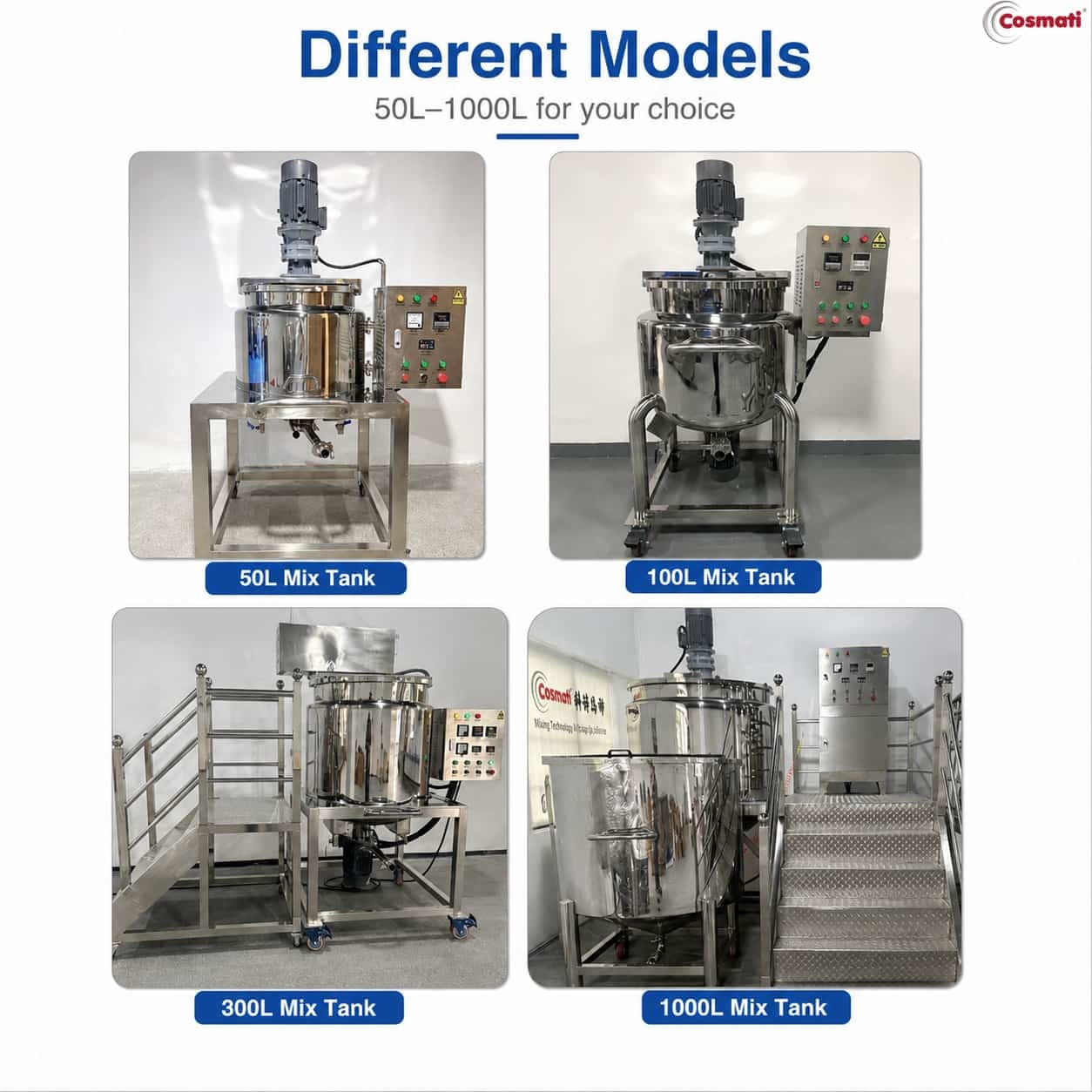

Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm


As a professional cosmetic machinery manufacturer with 16-year experience, we can provide you with excellent production line(from producing to packing):
Raw water tank-Water Treatment-Pure water tank-Liquid detergent mixer-Filling machine-Capping machine-Labeling machine-Inkjet printer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Below is a semi-automatic detergent production line, it is suitable for starter in this field.
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Water Treatment Equipment
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Movable Storage Tank
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Semi-Automatic Filling Machine
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Table Type Capping Machine
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Semi-Automatic Labeling Machine
Factory profile
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Engineer case
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Trade show participation
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Packaging & shipping specifications
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer
Application
Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer

FAQ

Q1: What products can this 100L mixing tank process?

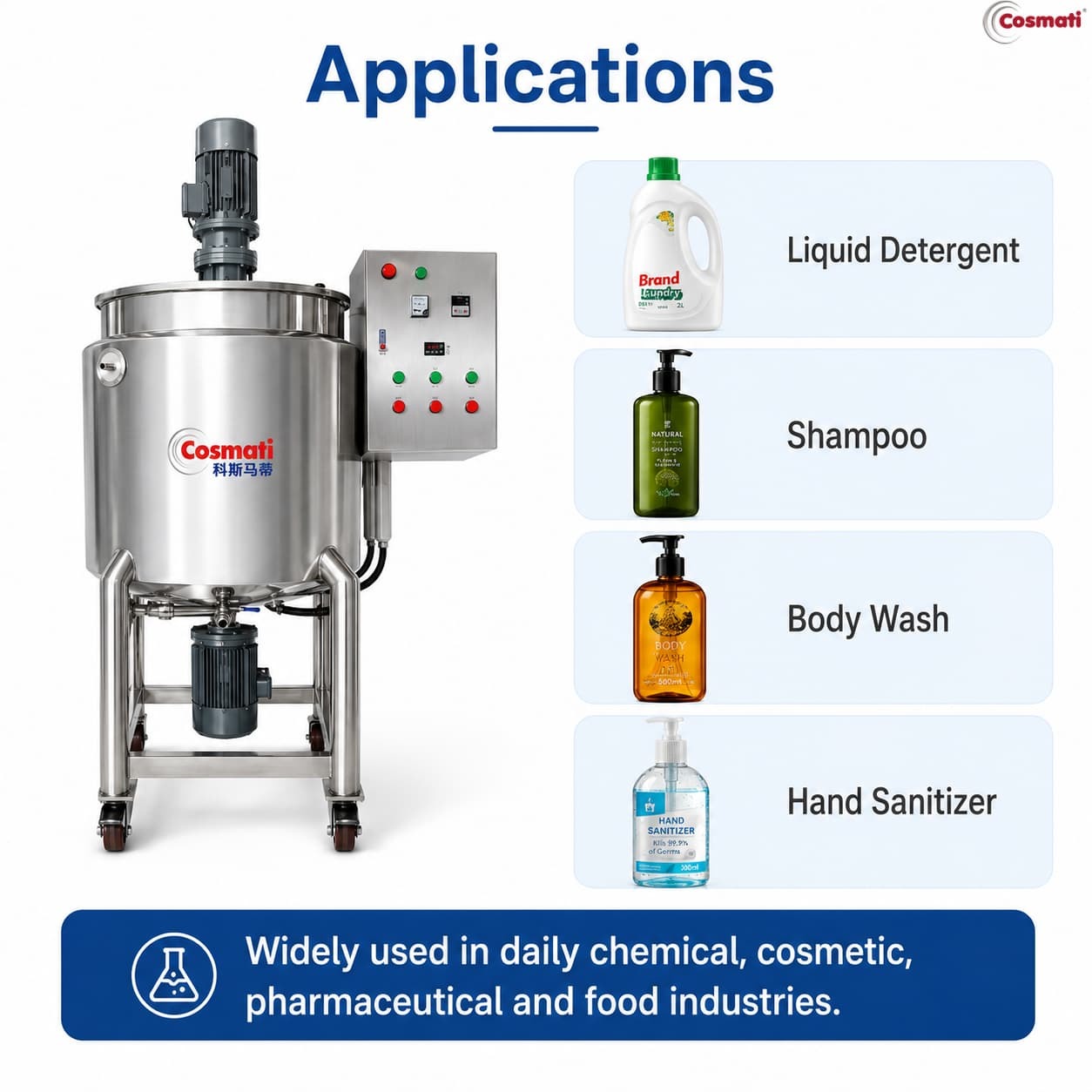

A: It is mainly suitable for shampoo, liquid soap, liquid detergent, shower gel, hand wash, hand sanitizer and other liquid or medium-viscosity cosmetic and daily chemical products.

Q2: Does the machine have both mixing and homogenizing functions?
A: Yes. It combines a top-mounted low-speed agitator with a bottom high-speed homogenizer.

Q3: What is the difference between the mixer and homogenizer?
A: The main mixer provides bulk circulation and uniform blending, while the homogenizer provides higher shear for stronger dispersion and improved product uniformity.

Q4: What is the mixing speed?
A: The reference mixing speed is approximately 0–60 rpm and can be adjusted according to the product.

Q5: What is the homogenizing speed?
A: The homogenizing system can operate up to approximately 3000 rpm depending on configuration.
