Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Specifications
material :
SUS304, SUS316L
voltage :
380 V, 220 V, 400 V
core components :
Gearbox
Material :
SUS304/316L
Motor Type :
AC Motor
warranty :
1 Year
video outgoing-inspection :
Provided
Place of Origin :
Guangdong, China
machinery test report :
Provided
Size :
Customer's demand
additional capabilities :
Heating
Power (kW) :
9
Product name :
Homogenizer mixer Shampoo Mixing Equipment
mixer type :
Agitator
Configuration :
Vertical
dimension(l*w*h) :
refer to drawing
Keyword 02 :
mixing tank for shampoo
Brand Name :
COSMATI
Type :
mixer machines
Application :
Chemical liquid cosmetics
weight (kg) :
285
Key words :
Tank with Mixer
Certification :
CE
Price :
$1,600-2,200
material processed :
Chemicals, Food, Cosmetics, Paint, ink
Capacity :
100 L
Advantage :
Long Servide Life
Delivery Time :
7 work days
Supply Ability :
10000 set
MOQ :
1
product type :
Cosmetic
key selling points :
High Safety Level
Payment Terms :
TT
Packaging Details :
wooden cases
range of spindle speed(r.p.m) :
0 - 60
Power for heating :
3/6/9/18/27
Description
50L 100L 500L 1000L Stainless Steel Liquid Chemical Mixing Tank Sealed Perfume Storage Tank with Mixer Shampoo Mixing Equipment

Introduction

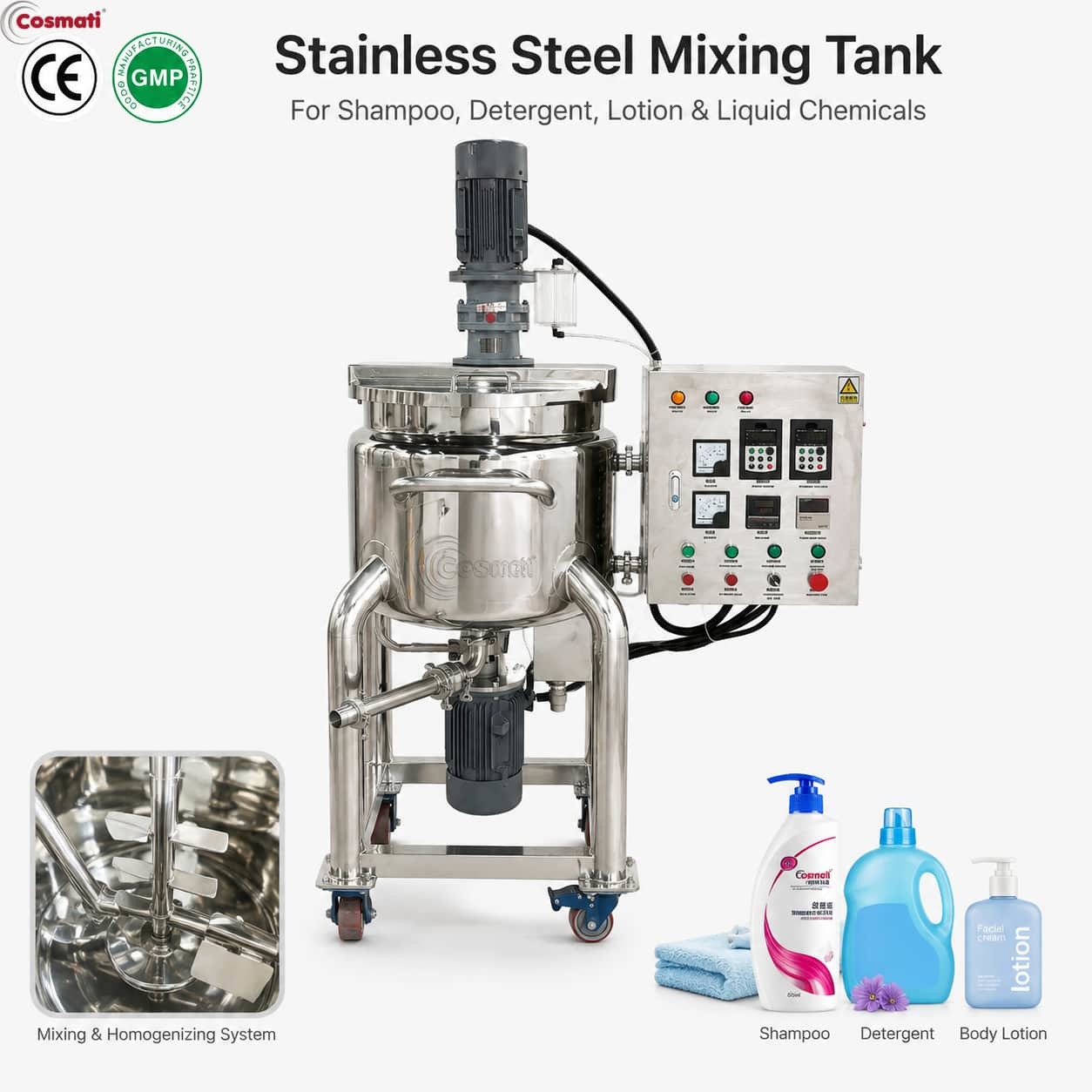

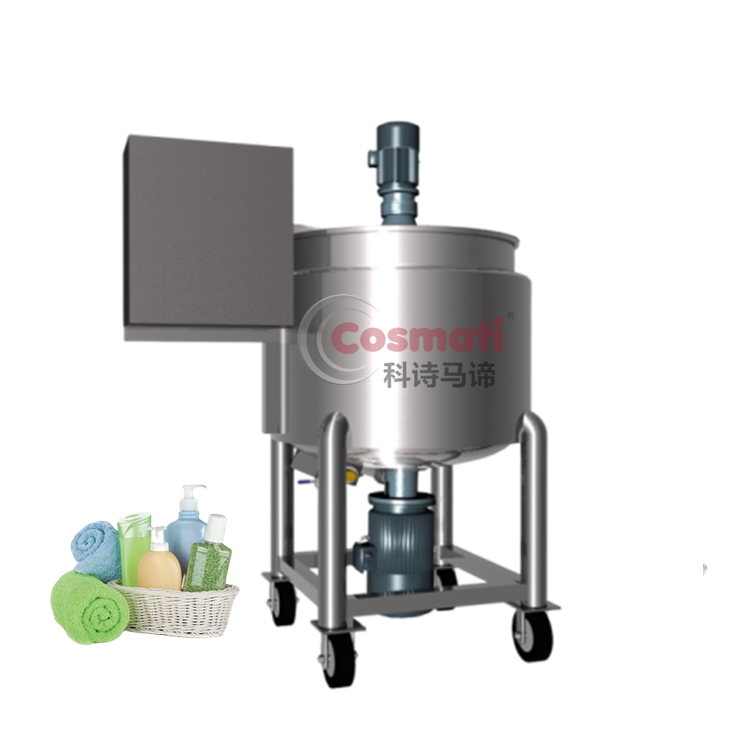

The Stainless Steel Mixing and Homogenizing Tank is designed for mixing, blending, heating and homogenizing liquid and semi-viscous products used in cosmetic and daily chemical production.

The current 100L configuration combines a top-mounted agitator with an additional homogenizing system for more uniform material processing. The low-speed agitator provides continuous circulation and blending, while the high-speed homogenizing system can be used when stronger dispersion and emulsification are required.

The tank can be equipped with electric heating and tap-water cooling for temperature-controlled processing. Product-contact parts can be made of SS316L, while SUS304 and SUS316L stainless steel configurations are available according to production requirements.

Its compact vertical structure, enclosed tank design, electrical control cabinet and mobile frame make it suitable for flexible small-to-medium batch production.

Features

  1. Top-mounted agitator provides stable low-speed mixing and uniform material circulation.
  2. High-speed homogenizing system supports stronger dispersion and emulsification when required.
  3. Mixing speed is adjustable by inverter according to different product viscosities.

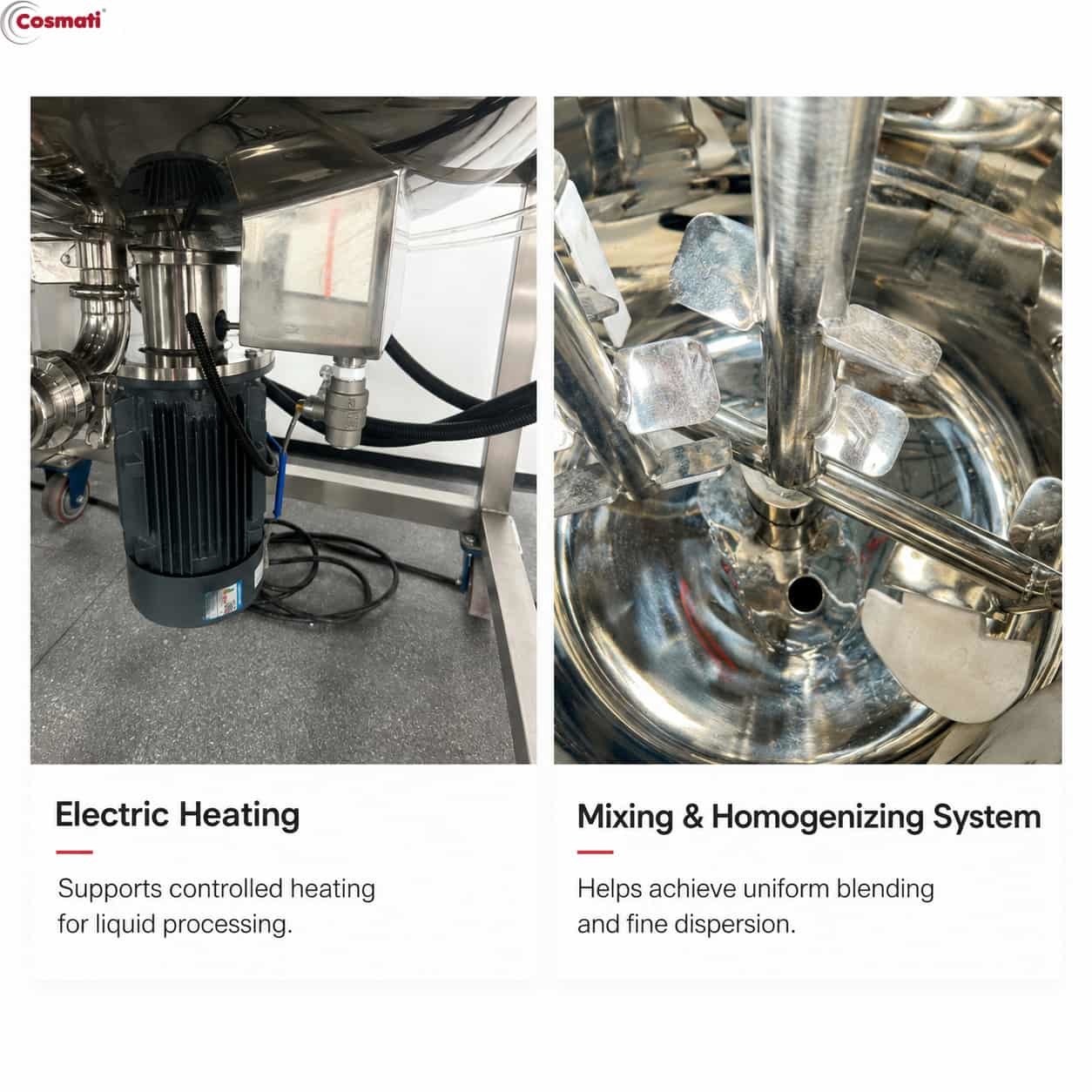

  4. Electric heating can be configured for processes requiring controlled material temperature.
  5. Tap-water cooling can be used after heating or during temperature-sensitive production.
  6. SS316L product-contact parts are available for improved hygiene and corrosion resistance.
  7. Stainless steel electrical cabinet provides centralized machine operation and parameter control.
  8. Enclosed tank structure helps reduce material exposure during processing.
  9. Bottom outlet provides convenient discharge and connection to downstream equipment.
  10. Different capacities and mixing configurations can be customized according to batch size and formulation.
Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm

Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

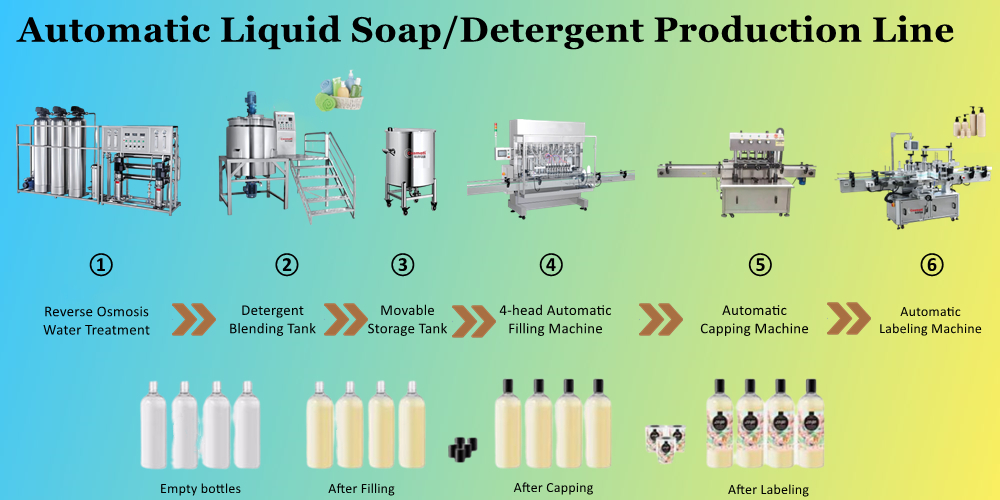

Below is a semi-automatic detergent production line, it is suitable for starter in this field.
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

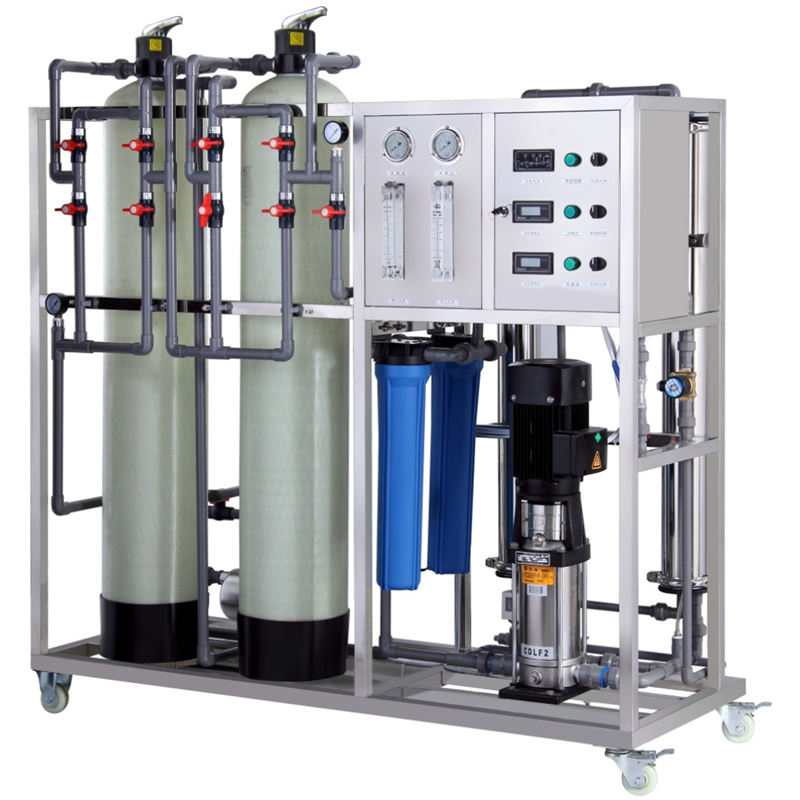

Water Treatment Equipment
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

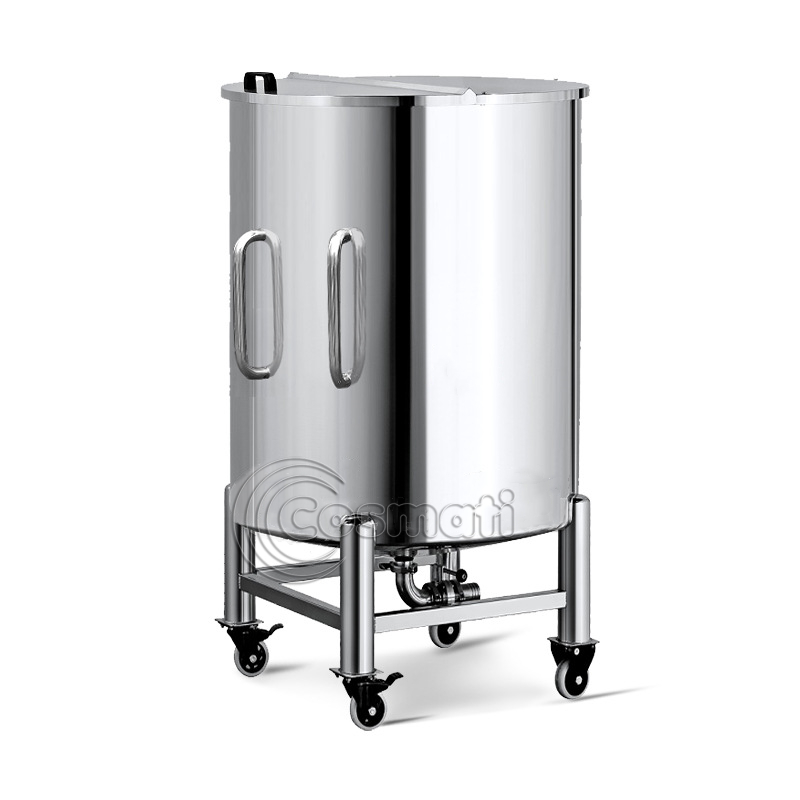

Movable Storage Tank
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

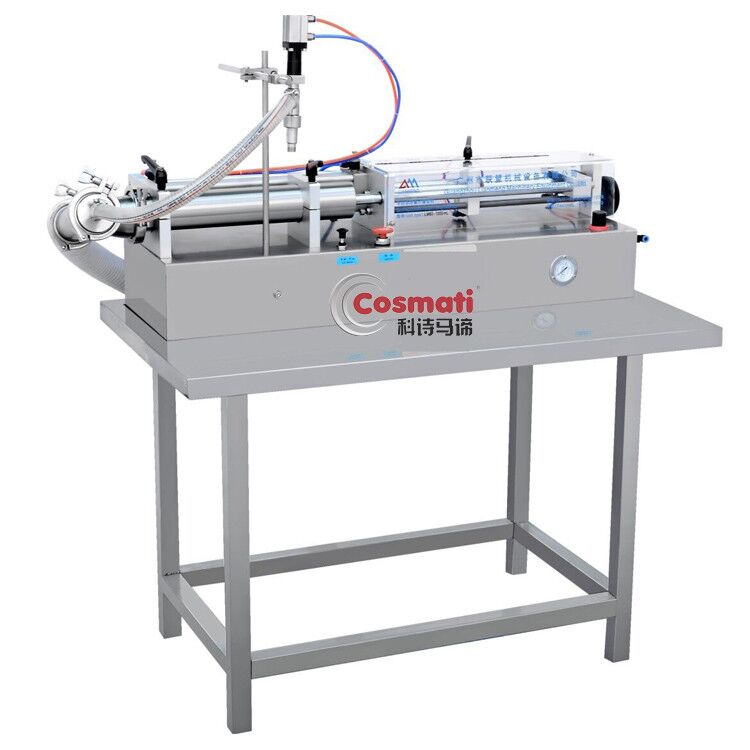

Semi-Automatic Filling Machine
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

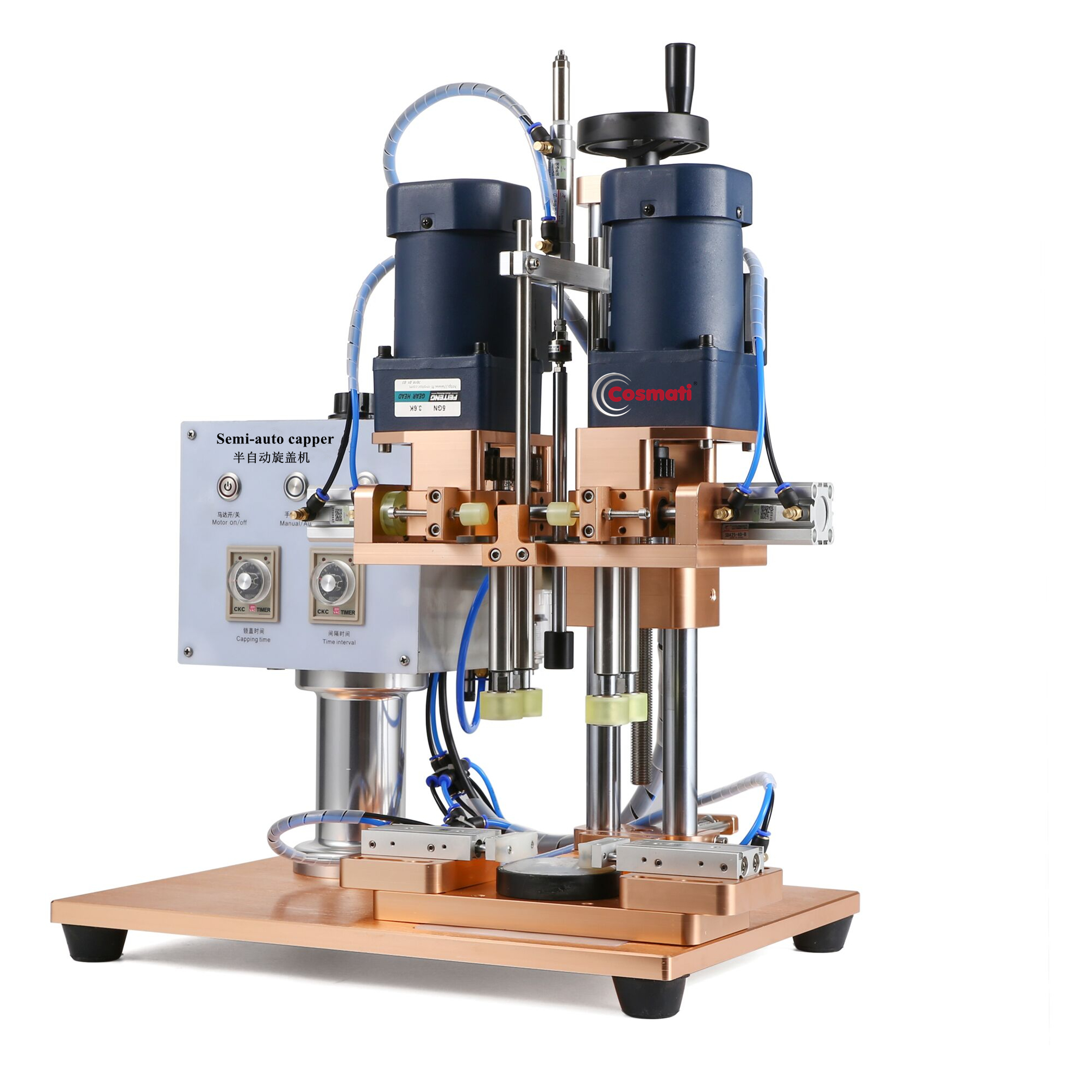

Table Type Capping Machine
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

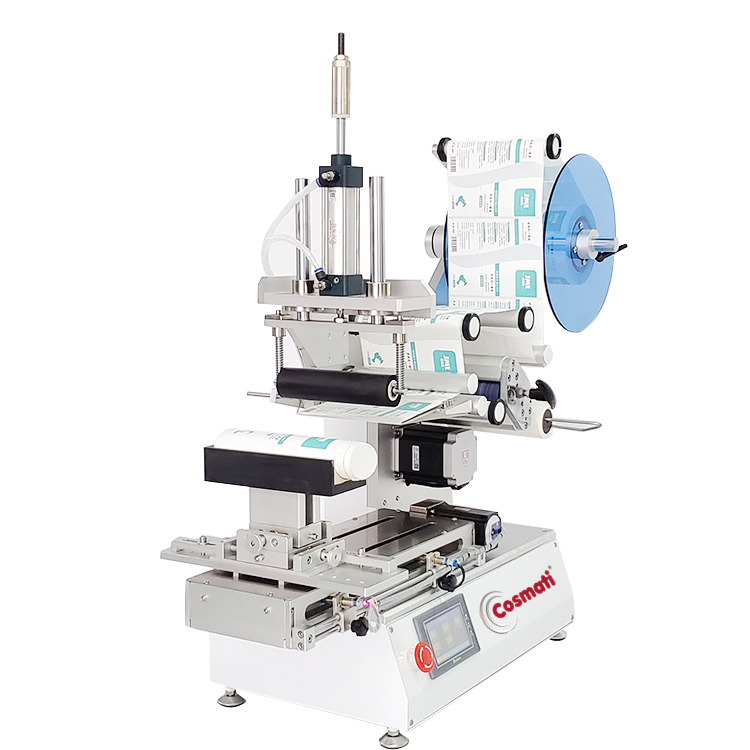

Semi-Automatic Labeling Machine
Factory profile
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer


Engineer case
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

Trade show participation
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer
Packaging & shipping specifications
Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

Application

Stainless Steel Mixing Tank 50L-1000L Shampoo Liquid Soap Homogenizer Mixer

FAQ

Q1: What products can this mixing tank process?
A: It is mainly suitable for shampoo, liquid soap, shower gel, body wash, detergent and other liquid or semi-viscous cosmetic and daily chemical products.

Q2: What is the capacity of the machine shown?
A: The current reference configuration is 100L. Other capacities such as 50L, 500L and 1000L can be customized.

Q3: Does this machine have both mixing and homogenizing functions?
A: Yes. The system can combine low-speed agitation with high-speed homogenizing for applications requiring both blending and stronger dispersion.

Q4: What is the difference between the agitator and homogenizer?
A: The agitator provides continuous bulk mixing and material circulation, while the homogenizer operates at higher speed to improve dispersion and product uniformity.

Q5: What is the mixing speed?
A: The reference low-speed mixing range is approximately 0–60 rpm and can be adjusted by inverter.
