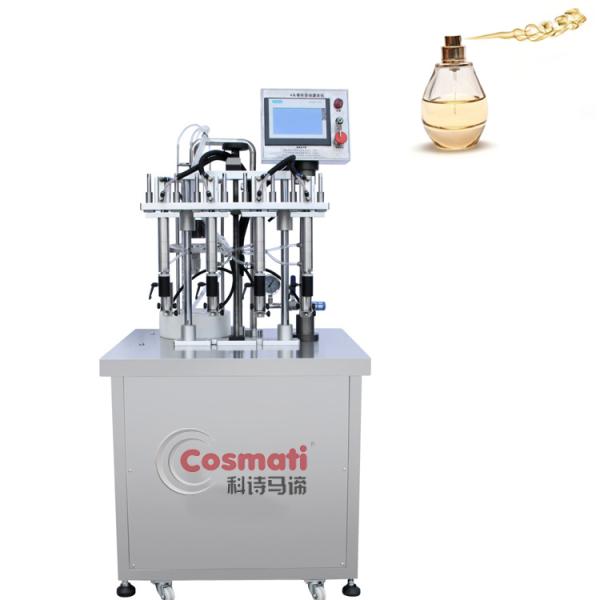

Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Specifications
Keywords: :
perfume bottle filling machine
Dimension(L*W*H): :
2830x1510x1400mm
Function: :
perfume Filling and capping machine
Voltage: :
220V
Core Components: :
Gear, Motor, Pump
Price :
1000-100000 USD
Supply Ability :
10000 set
Packaging Type: :
Bottles
Model Number :
CM-FM
Packaging Material: :
Glass bottles
Certification :
CE
Filling Material: :
Oil, Water, liquid,lotion,cream
Weight: :
300 KGS
Brand Name :
COSMATI
MOQ :
1 SET
Payment Terms :
TT
Products Name :
China Factory Supplied Top Quality Perfume Packing Machines Perfume filling Machine
Place of Origin :
GUANGZHOU,CHINA
Delivery Time :
7 work days
Machinery Capacity: :
2000
Packaging Details :
wooden cases
Description


Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle

Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle


Introduction
Safety and efficient four head rotary semi automatic bottle perfume filling machine, pneumatic perfume filler is used for filling floral water, perfume and other water-based materials. The machine adopts negative pressure ,suit for fill cologne,and fixed liquid surface type filling. Explosion-proof type products can be provided according to user requirements.

This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.
The machine is with 10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.
The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and labor tensity.
Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method
Equipment with casters,convenient to move
The contact part adopt 316L stainless steel,table with SS 304
Suitable for glass bottle and the plastic bottle which will not easy out of shape after vacuum.


Technical Parameters:
Production Capacity
20-40 bottles/min
Filling Volume
5-1000ml
Suitable bottle height
≤250mm
Suitable bottle diameter
≤90mm
Application of Bottle Diameter
≥5mm
Supply Voltage
3/N AC 380V/220V
Power Consumption
0.55KW 0.75KW ( explosion proof Noise 70dB(A)

Related Products:

Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle

After-Sales Service

Supply the following after-sale service:

1.Free training your technican in our workshop;

2.1 year wear parts are provided with machine;

3.Able to come on site for commissioning, visa cost, double journey airfare, food and

accommodation local transporation on site for coming engineer will be charge by

buyer;

4.Salary in charge for coming engineer is USD150/day;

5.Providing Cosmati via email and telephone for whole life of the machine.


Factory profile
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Engineer case
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Trade show participation
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle
Packaging & shipping specifications
Four Head Rotary Perfume Filling Machine for Cologne Floral Water Glass Bottle


FAQ

1. Is this machine designed specifically for perfume bottles?
Yes. This model is mainly designed for perfume, fragrance and other compatible liquid products packed in glass bottles.

2. Does the machine combine filling and capping?
Yes. The supplied configuration integrates bottle filling and capping/closing functions in one machine, reducing manual transfer between processes.

3. What type of bottle does this machine support?
The listed packaging material is glass bottles. Bottle holders and working stations can be customized according to bottle diameter, height and neck design.

4. How does the rotary system work?
Bottles are positioned on a rotary indexing table and transferred through different working stations, helping maintain stable bottle positioning during filling and closure processing.

5. Can the machine handle different perfume bottle shapes?
Yes. It can be adapted for round, square and special-shaped perfume bottles by changing or adjusting the positioning fixtures.
