Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Specifications
driven type :
Mechanical
key selling points :
High Productivity
After-sales Service Provided :
Video Technical Support, Field installation, commissioning and training, Online support
Production capacity :
30-60bottles/minute
dimension(l*w*h) :
2000*1000*1600 mm(78.74*39.37*62.99in)
machinery test report :
Provided
filling nozzle :
2, 1, 8, 6, 18, 4, 10
Supply Ability :
10000 set
core components :
Motor, Pressure Vessel, PLC, Gear, Other
Filling volume :
10-500ml, 50-1000ml
packaging type :
Bottles, Case, Tube, Jar
Weight (KG) :
150
Applicable bottle diameter :
15-100mm
packaging material :
Wood
Diemnsion :
L2000*W1000*H1600mm
Brand Name :
Cosmati
Keyword 02 :
cosmetic cream paste jar piston filler
Place of Origin :
Guangdong, China
Voltage :
220 V
video outgoing-inspection :
Provided
Price :
$3,500-3,800
automatic grade :
Automatic
Keyword 01 :
Servo rotor pump filling machine
warranty :
1 Year
filling accuracy :
≤±1%
MOQ :
1
application :
Food, Chemical
Filling Volume :
100mL, 200mL, 500 mL, 300mL, 400 mL, 1L
Packaging Details :
wooden cases
Payment Terms :
TT
filling material :
Milk, Water, Oil, Paste, Paint, Ketchup, Peanut Butter, Shampoo, Liquor, Yogurt
Product name :
single head automatic paste sauce filling machine cream jar filler
Control :
Servo motor+ PLC+ Touch Screen
Delivery Time :
7 work days
Applicable bottle height :
30-200mm
Filling accuracy :
±1%
Description

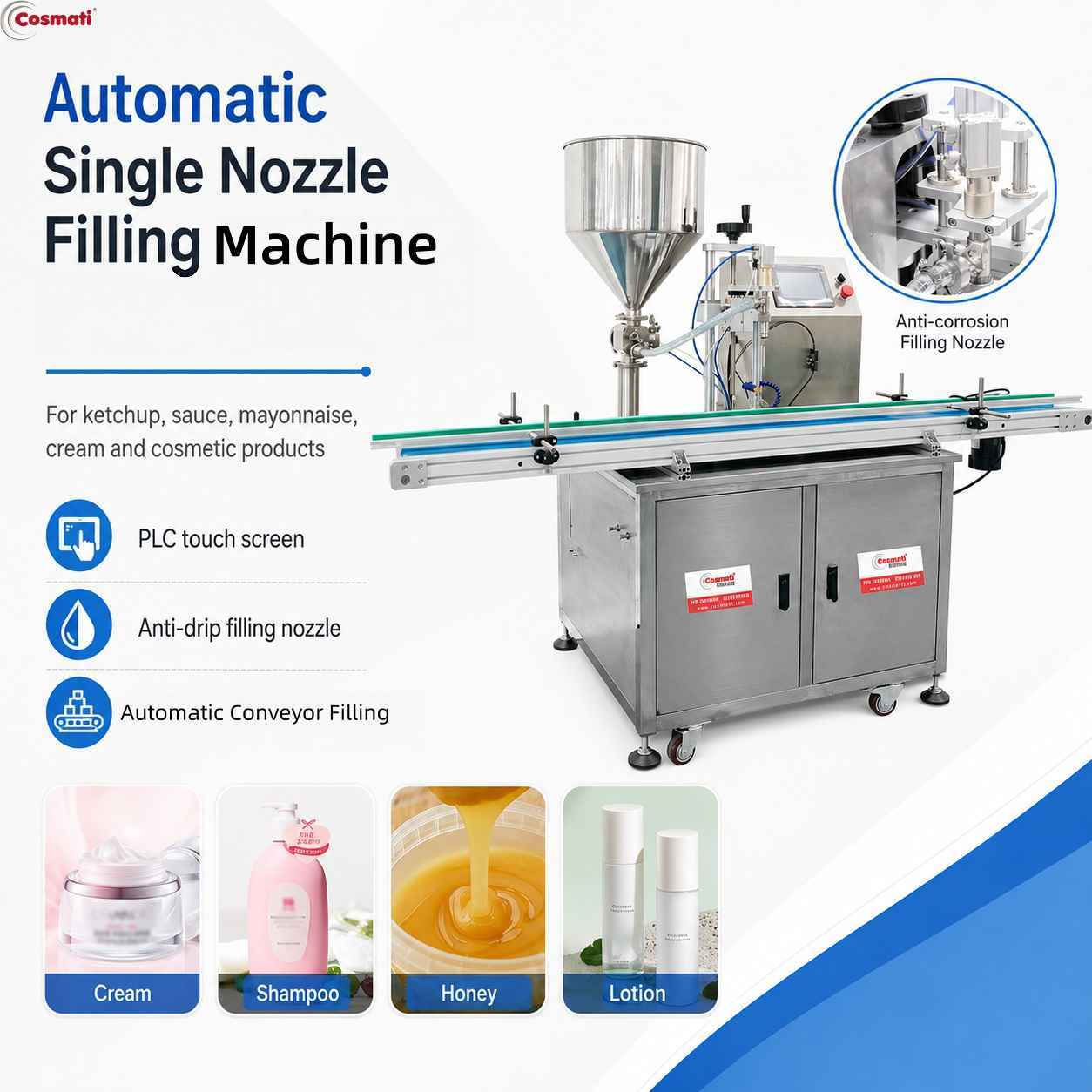

Automatic Single Nozzle Ketchup Sauce Mayonnaise Filling and Capping Machine Cosmetics High Viscosity Cream Piston Filler
Introduction
The automatic single head paste filling machine has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. It is the most ideal filling equipment for chemical, food, cosmetics and other industries.
It adopts PLC control and servo motor to ensure the filling accuracy, and its filling speed can be up to 60 bottles/min.

Features

1. Fast filling speed
2. One machine with multiple functions, a wide range of applications
3. PLC operation interface
4. Quantitative precision
5. Small footprint, easy to clean
6. Servo motor control, stable and trouble-free, long service life
7. Can be equipped with automatic feeding function
Technical Data
Voltage
Working pressure
Bottle height
Servo motor power
Filling accuracy
220V/50Hz
0.4-0.6Mpa
30-200mm
0.75KW
≤±1%
Total power
Bottle diameter
Filling range
Hopper volume
Contacted part
2.5KW
15-100mm
10-1000ml
40L
SS316L
Details

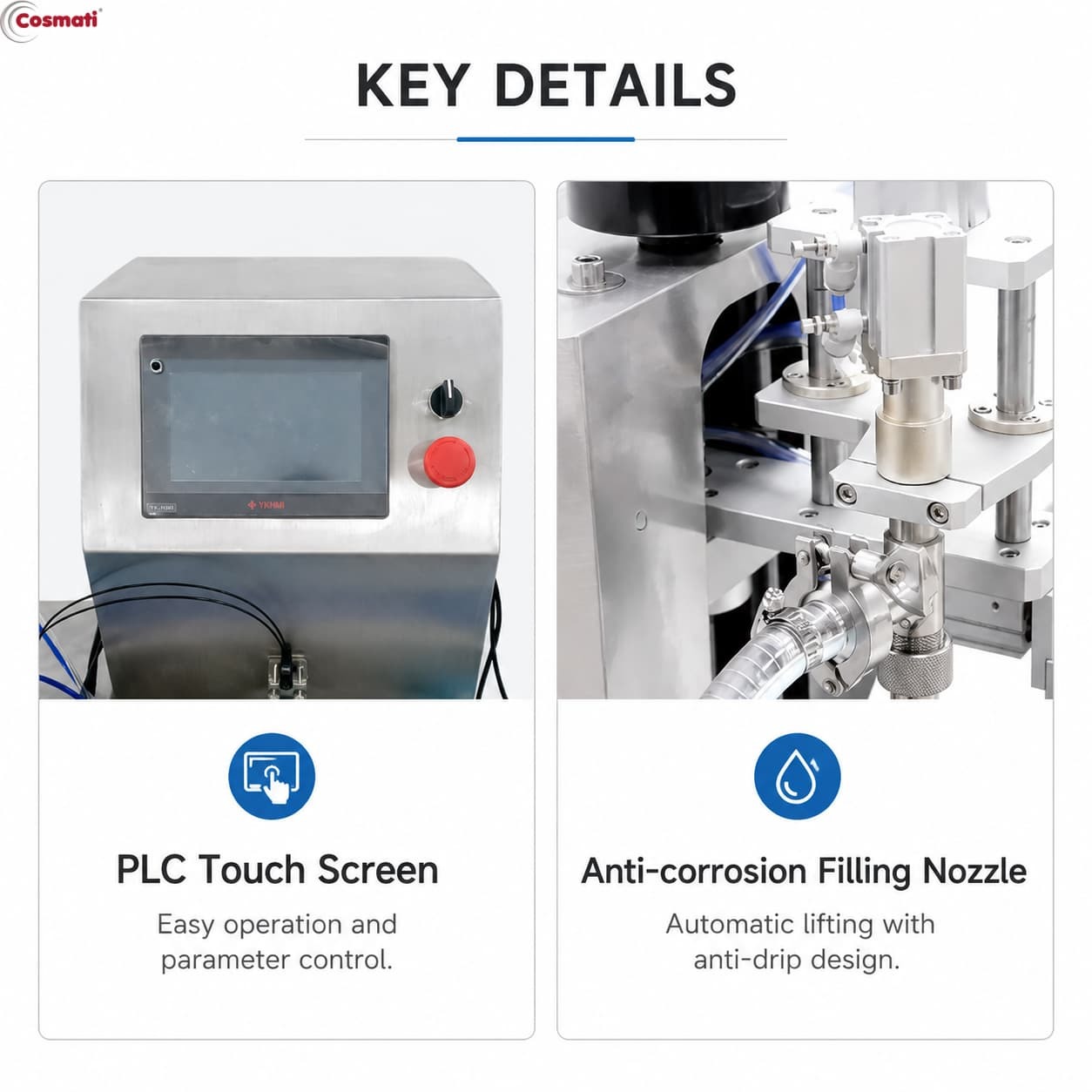

PLC Touch Screen
PLC touch screen adopts XINJIE, it's easy to operate and control the machine
Anti-corrosion Filling Nozzle
Anti-drip filling nozzle, it can lit automatically, made of SS316L, also it can be customized
Ultrasonic Induction Feeder
Liquid level sensing, when a certain liquid level is reached, it will automatically sense the feeder
Conveyor 1.8meters
Factory profile
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Engineer case
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Trade show participation
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler
Packaging & shipping specifications
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler

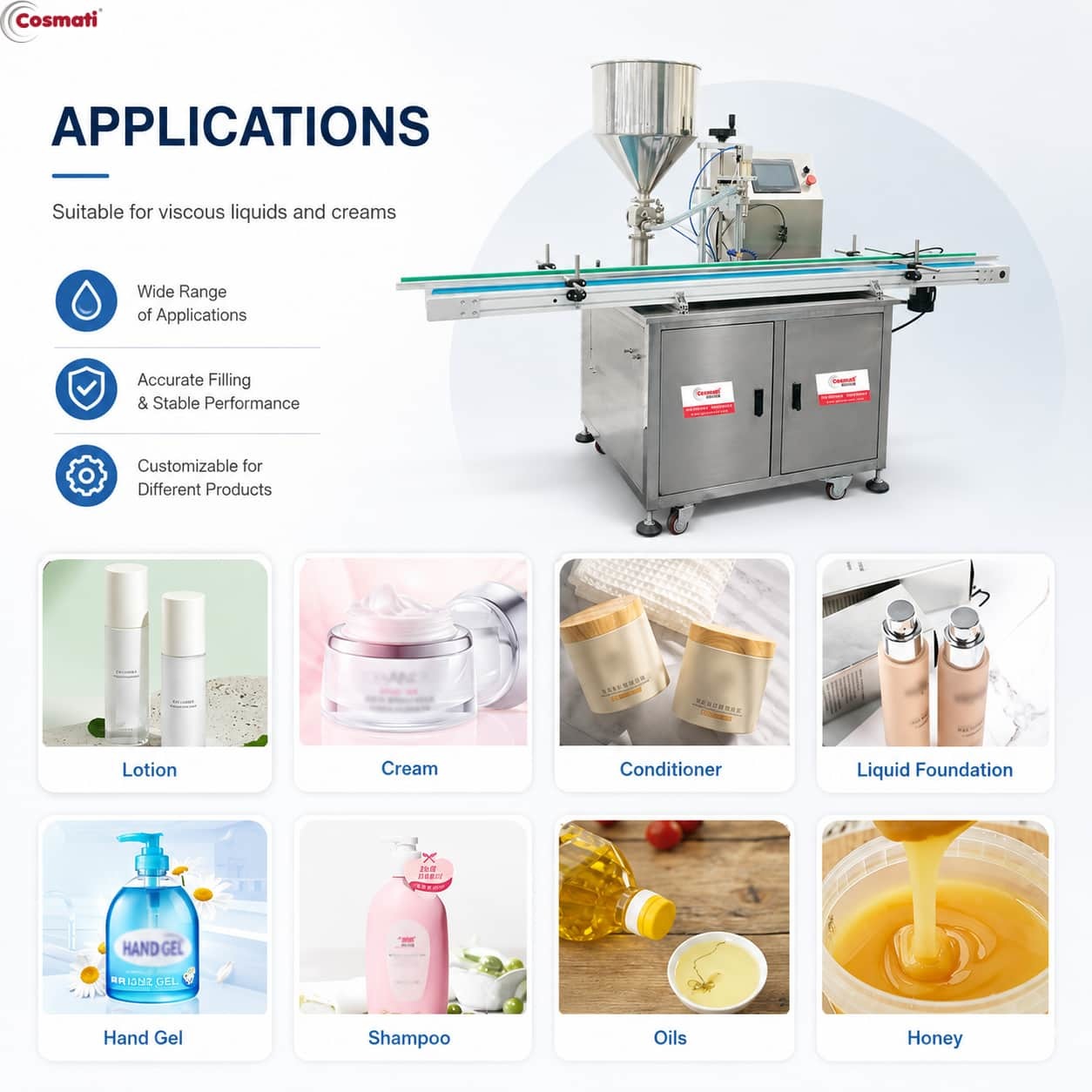

Application
Single Nozzle Piston Filling Machine High Viscosity Cream Ketchup Sauce Filler

FAQ

Q1: What products can this piston filling machine handle?
A: It is suitable for liquids, creams and paste products such as ketchup, mayonnaise, cream, lotion, shampoo, gel, yogurt and other semi-viscous materials.

Q2: Is this machine suitable for high-viscosity products?
A: Yes. The piston filling system is suitable for many medium-to-high viscosity products. Extremely thick materials should be evaluated according to actual viscosity and filling volume.

Q3: How many filling nozzles does this machine have?
A: The machine shown uses one filling nozzle. Multi-nozzle models can be supplied separately according to production requirements.

Q4: Is the filling process automatic?
A: Yes. Bottles are transported by conveyor, positioned at the filling station and filled automatically according to the preset parameters.

Q5: What is the filling accuracy?
A: The reference filling accuracy is within approximately ±1%. Actual accuracy depends on product viscosity, filling volume and machine adjustment.
