Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Specifications
packaging type :
Bottles, Other
Filling Volume :
100mL(3.38fl.oz)
Filling Nozzels :
1
Filling volume :
2-120ml
Brand Name :
Cosmati
Certification :
CE
dimension(l*w*h) :
L350xW400XH650mm
core components :
Motor, Pressure Vessel, Pump, PLC, Engine, Other
packaging material :
Plastic, Glass, Other
driven type :
Pneumatic
filling material :
Water, Oil, Other, perfume
Weight (KG) :
23
Bottle type :
Glass Bottle Plastic Bottle
MOQ :
1
warranty :
1 Year
video outgoing-inspection :
Provided
After-sales Service Provided :
Video Technical Support, Online support
filling nozzle :
2, 1
Control :
Button Control+Foot Pedal
Delivery Time :
7 work days
key selling points :
High-Accuracy
machinery test report :
Provided
Supply Ability :
10000 set
application :
Commodity, Chemical, Cosmetic
Product name :
single nozzle perfume filling machine
Packaging Details :
wooden cases
filling accuracy :
±1%
Payment Terms :
TT
Place of Origin :
Guangdong, China
Keywords :
vacuum perfume filling machine
automatic grade :
Semi-Automatic
Production Capacity :
10-20 bottles/min
Price :
$700
Usage :
Filling liquid products
Material :
Stainless Steel 304/316L
Description
perfume filling machine liquid pneumatic filler single nozzle fragrance oils filling machine
Introduction

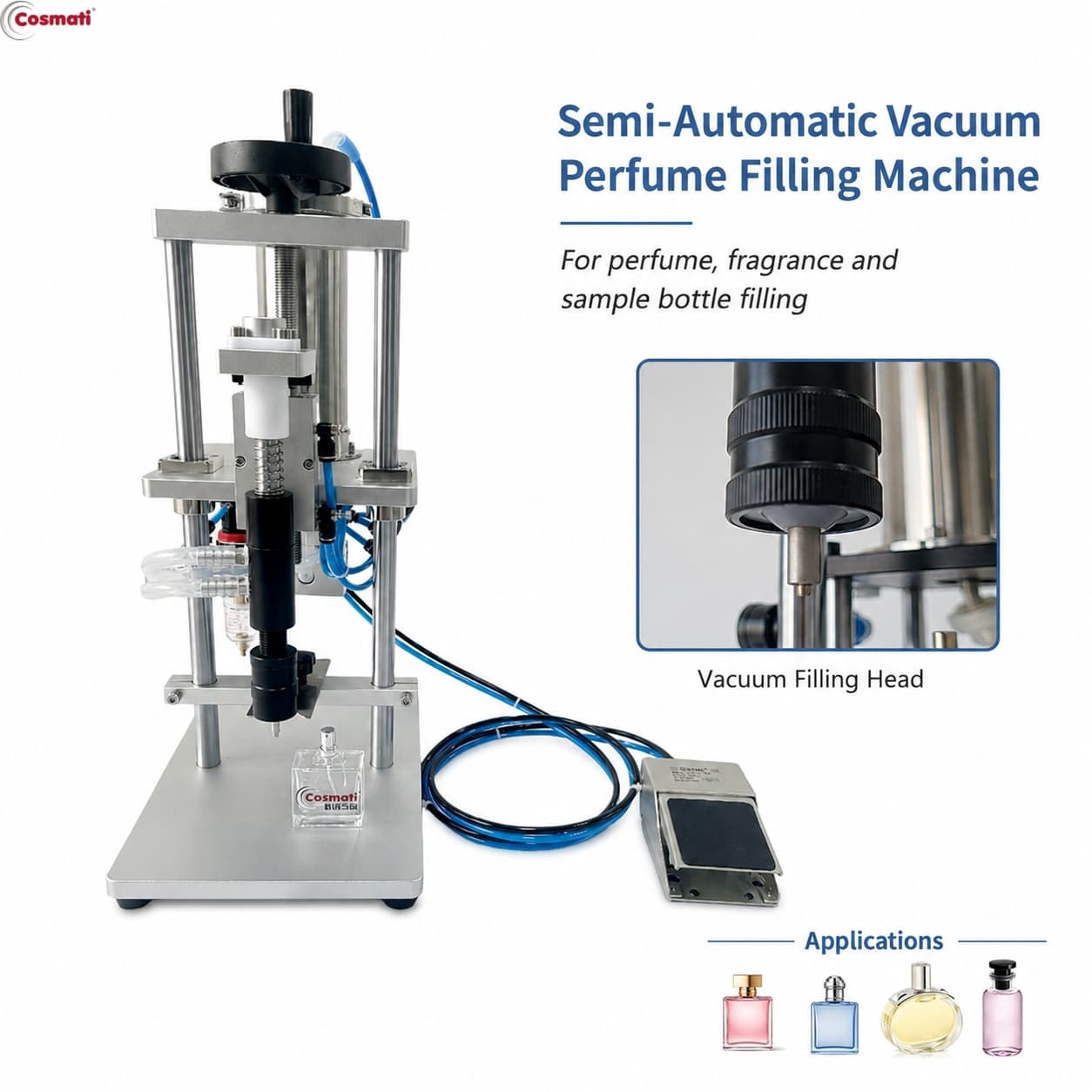

This vacuum single nozzle perfume filling machine is suitable for filling products with good fluidity such as various water preparations and high-foaming products. The machine is compact and reasonable in design and simple in appearance.
It has 1 vacuum filling head, and its capacity is about 10-20 bpm.

Features

1. The semi-automatic vacuum negative pressure filling machine is pure pneumatic equipment, electric eye detection, no bottle no filling, this machine has the characteristics of filling and constant liquid level.
2. The filling volume is determined by the depth that the filling head extends into the container, so no matter whether the bottle volume is the same, the filling level will remain the same. Especially suitable for perfumes and liquid medicines, etc.
3. Suitable for small batch production.
Technical Data
Capacity
10-20 bottles/min (filling speed and pumping speed can be adjusted according to the characteristics of the material)
Filling accuracy
Liquid level: ±1mm
Filling head (double layer)
1
Power supply
/
Filling range
2-120ml
Weight
About 25KG
Gas source
After drying, the working pressure is ≥6kg/cm2, and the air consumption varies with the output.

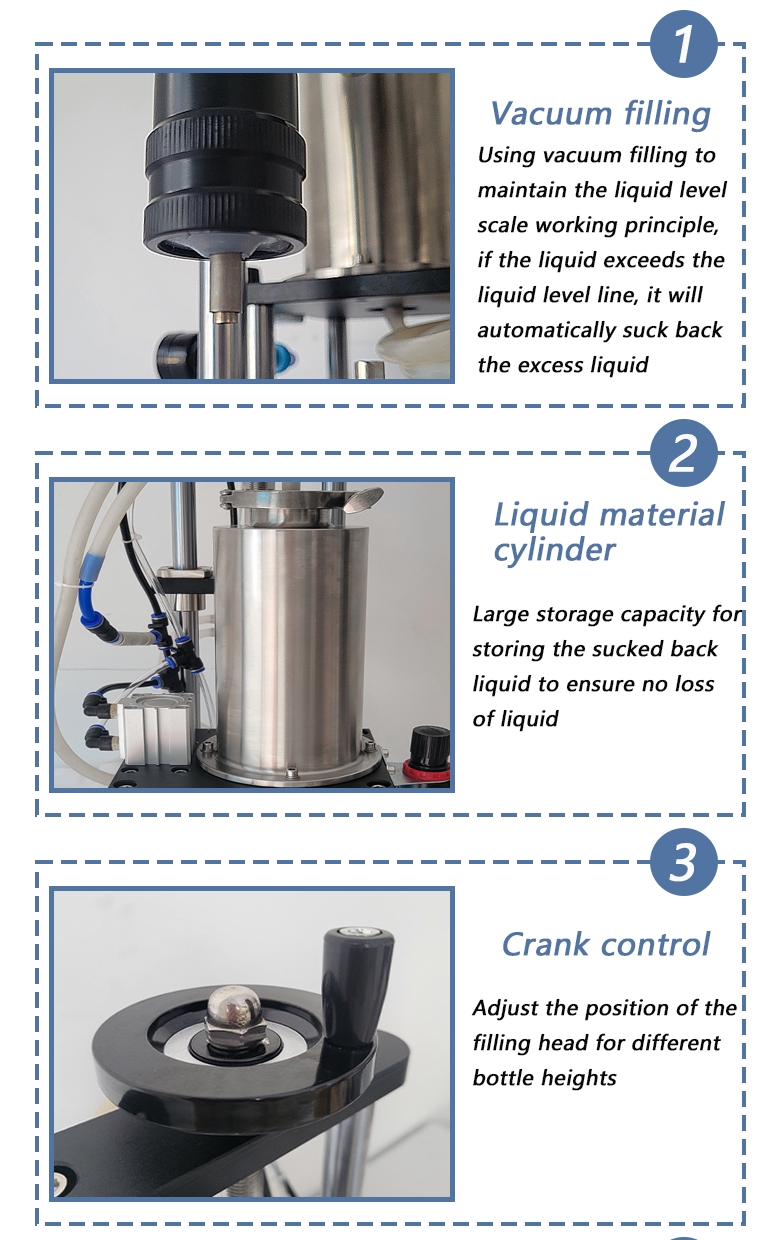

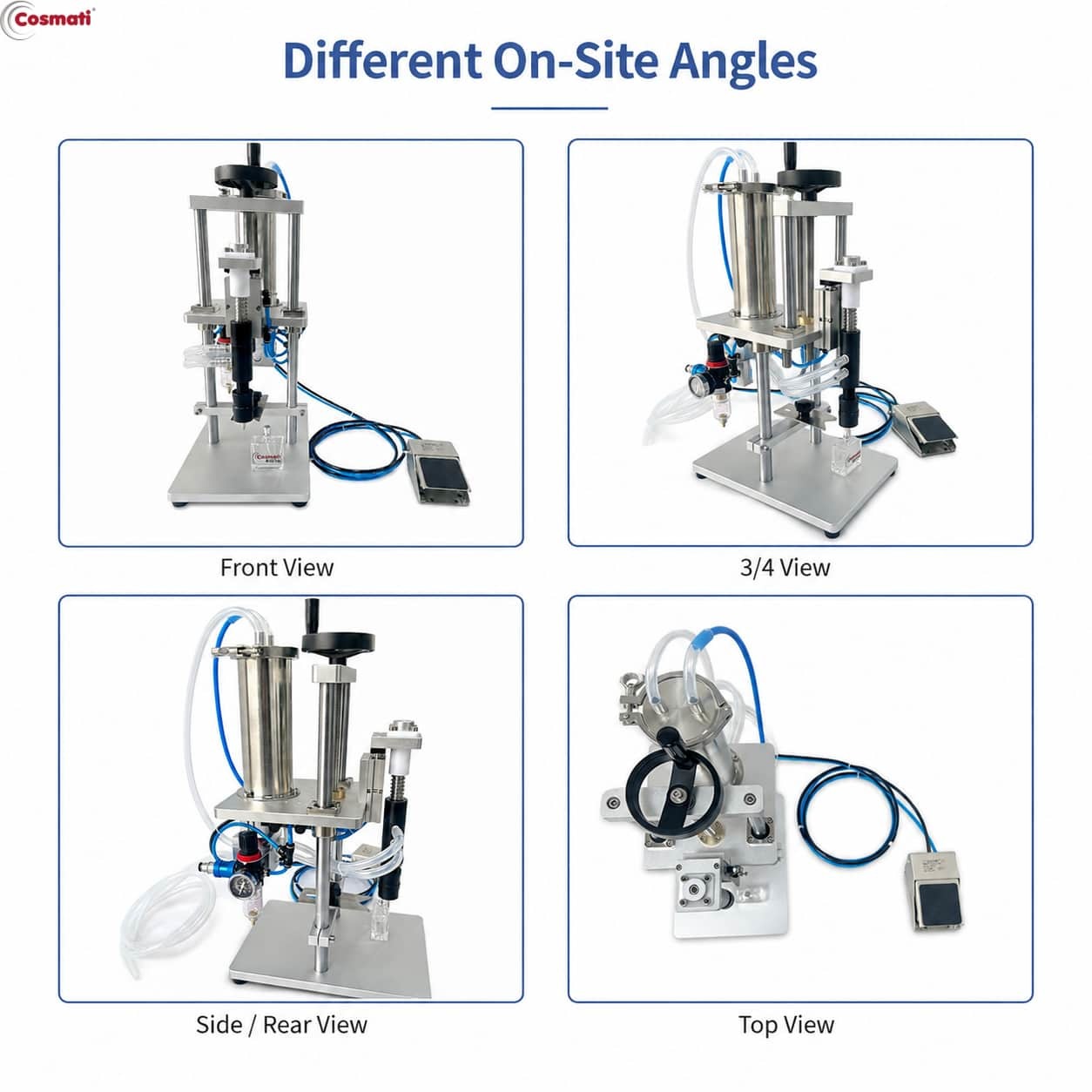

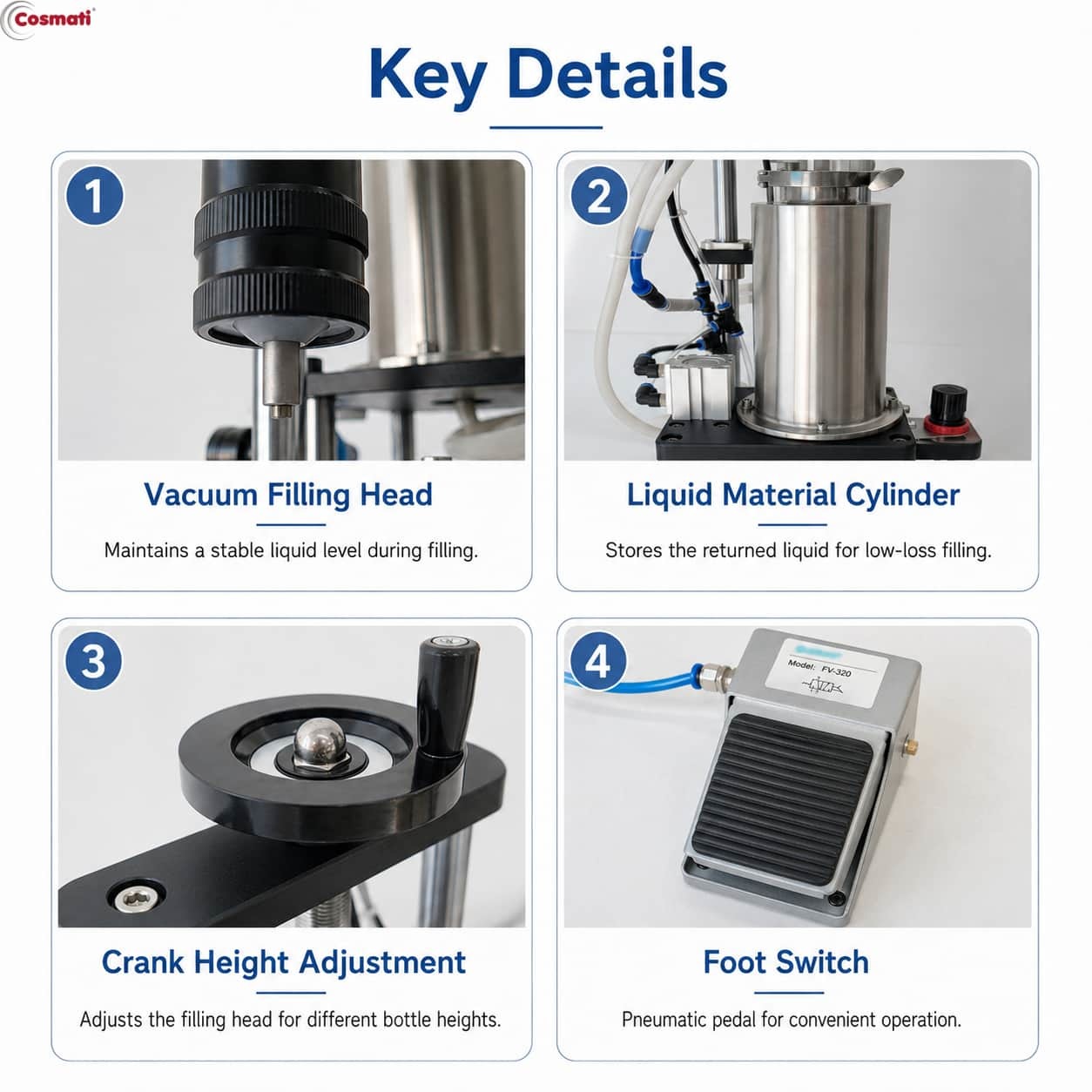

Detailed Images
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Perfume Production Line
Raw Water Tank-Water Treatment Equipment-Pure Water Tank-Perfume Chiller-Perfume Storage Tank-Bottle Washer-Perfume Filling Machine-Perfume Crimping Machine-Perfume Collaring Machine-Labeling Machine-Inkjet Printer
Company Profile
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler


Trade show participation
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler
Packaging & shipping specifications
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler

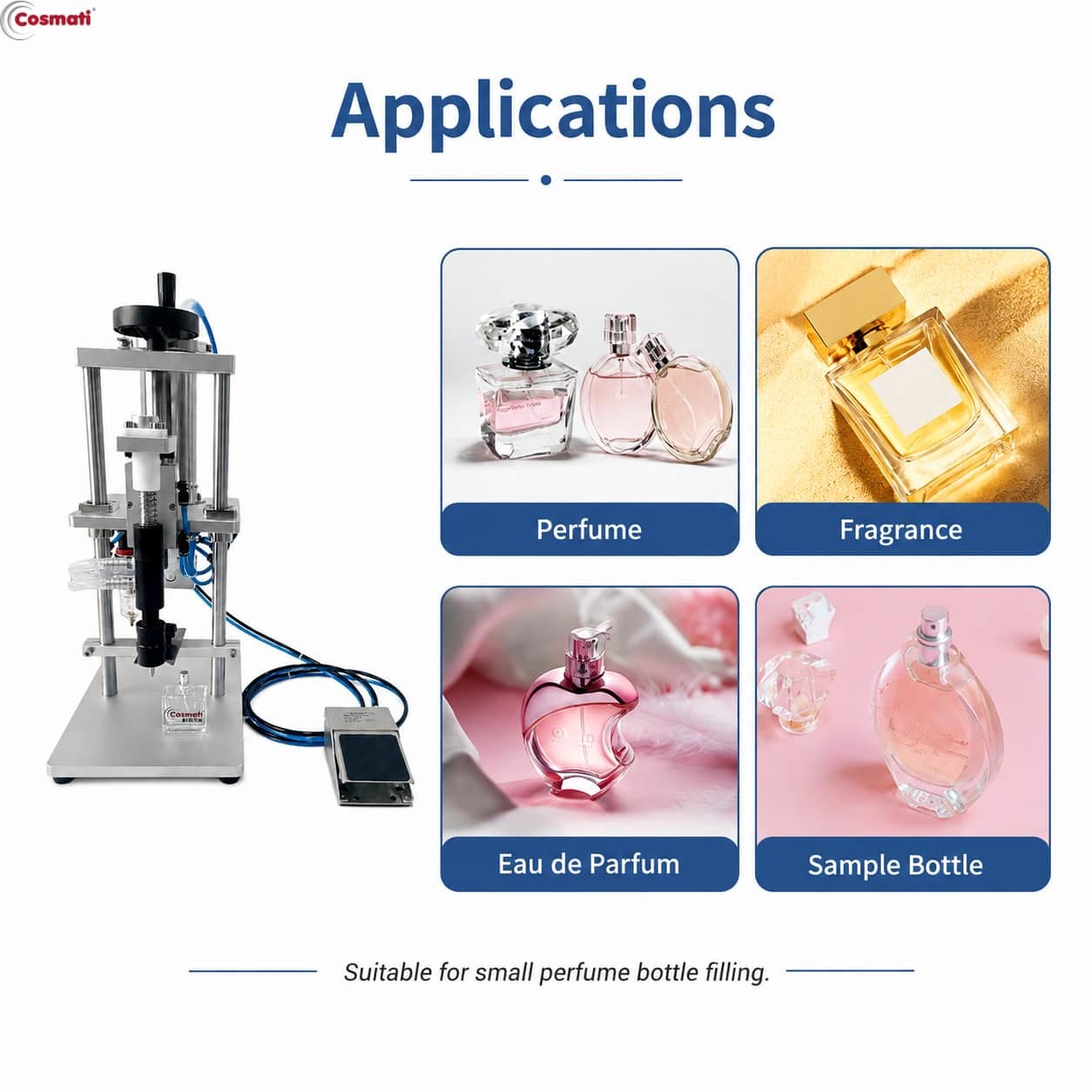

Application
Pneumatic Perfume Filling Machine Semi Automatic Single Nozzle Fragrance Filler

FAQ

Q1: What products can this machine fill?
A: It is mainly suitable for perfume, fragrance, aromatherapy liquid, reed diffuser liquid and other low-viscosity liquids.

Q2: Is this machine fully automatic?
A: No. It is a semi-automatic tabletop filling machine designed for flexible small and medium batch production.

Q3: How many filling nozzles does the machine have?
A: The machine shown uses one filling nozzle. A two-nozzle configuration can also be supplied according to production requirements.

Q4: Does the machine require compressed air?
A: Yes. The machine is pneumatically driven and requires an external compressed-air supply.

Q5: Does it require electricity?
A: The standard filling operation is mainly pneumatic. Electrical requirements, if any, depend on the final machine configuration.
