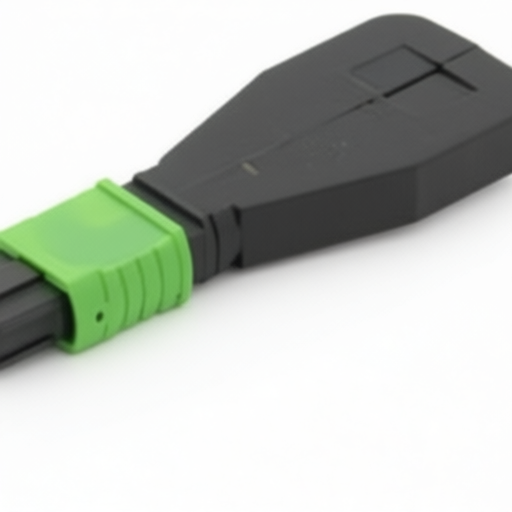

Network Testing Fiber Loopback MPO Female Single Mode PC Polish Connector with Dust Cap L-com FOL-AT-MPF12SM-10D
Network Testing Fiber Loopback MPO Female Single Mode PC Polish Connector with Dust Cap L-com FOL-AT-MPF12SM-10D
Specifications
Description :
Fiber Optic Connector Accessories RoHS
Mfr. Part # :
FOL-AT-MPF12SM-10D
Model Number :
FOL-AT-MPF12SM-10D
Description

Product Overview

This MPO Female Single Mode Fiber Loopback is designed for testing and troubleshooting fiber optic networks. It features a PC polish type connector and comes with a dust cap for protection. The loopback is compliant with the EU RoHS Directive. It is suitable for applications requiring signal loopback and network diagnostics.

Product Attributes

  • Brand: L-COM
  • Connector Type: MPO Female
  • Fiber Type: Single Mode
  • Polish Type: PC
  • Included Accessory: Dust Cap
  • Regulatory Compliance: EU RoHS Directive (Most Recent Released Version)
  • Color: Housing is Green

Technical Specifications

Model Number Attenuation Fiber Channels Fiber Colors (Channel 1-6) Fiber Colors (Channel 7-12)
FOL-AT-MPF12SM-01D 1dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-02D 2dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-03D 3dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-04D 4dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-05D 5dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-07D 7dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
FOL-AT-MPF12SM-10D 10dB 12 BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE WHITE, GRAY, BROWN, GREEN, ORANGE, BLUE
Specification Value
Insertion Loss 0.7dB
Return Loss 50dB
Test Wavelength 1310 nm
Overall Cable Length Tolerance (>12 [305] to 60 [1524]) +2 [51] / -0
Overall Cable Length Tolerance (>60 [1524] to 120 [3048]) +4 [102] / -0
Overall Cable Length Tolerance (>120 [3048] to 300 [7620]) +6 [152] / -0
Overall Cable Length Tolerance (>300 [7620]) +5% / -0
Other Dimensional Tolerances 1/32
.X Dimensional Tolerance .2 [5]
.XX Dimensional Tolerance .02 [.5]
.XXX Dimensional Tolerance .005 [.13]
MPO Connector Housing Diameter .79 [20.0]
MPO Connector Housing Length 1.38 [35.0]
Overall Length 2.36 [60.0]
