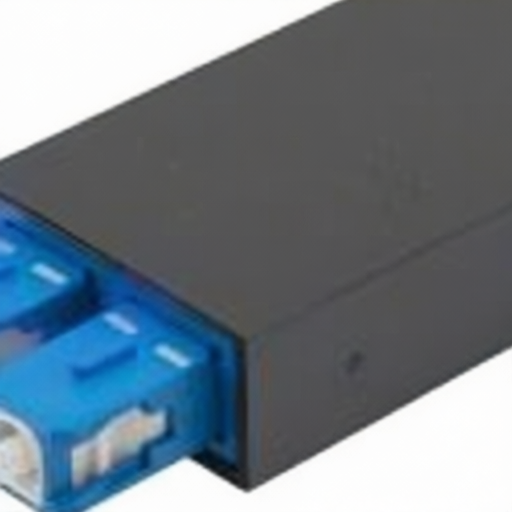

Fiber optic loopback module single mode SC connector L-com FOL-AT-SCUSM-12D designed for network testing
Fiber optic loopback module single mode SC connector L-com FOL-AT-SCUSM-12D designed for network testing
Specifications
Description :
Fiber Optic Connector Accessories RoHS
Mfr. Part # :
FOL-AT-SCUSM-12D
Model Number :
FOL-AT-SCUSM-12D
Description

Product Overview

The L-COM Fiber Loopback SC Single Mode is designed for fiber optic testing and network applications. This product features SC connectors with a PC polish type and includes dust caps for protection. It is compliant with the EU RoHS Directive. The loopback module is ideal for various testing scenarios requiring signal reflection and verification within single-mode fiber optic networks.

Product Attributes

  • Brand: L-COM
  • Connector Type: SC
  • Fiber Type: Single Mode
  • Polish Type: PC
  • Included Accessories: Dust Cap (installed)
  • Regulatory Compliance: EU RoHS Directive (most recent released version)
  • Color Variation: 12 [305]

Technical Specifications

Model Number Attenuation Overall Cable Length Tolerance Insertion Loss (Max) Return Loss (Min) Test Wavelength
FOL-AT-SCUSM-01D 1dB 12 [305] = +1 [25] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-02D 2dB 12 [305] = +1 [25] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-03D 3dB 12 [305] = +1 [25] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-05D 5dB >12 [305] 60 [1524] = +2 [51] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-07D 7dB >12 [305] 60 [1524] = +2 [51] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-10D 10dB >60 [1524] 120 [3048] = +4 [102] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-12D 12dB >60 [1524] 120 [3048] = +4 [102] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-15D 15dB >120 [3048] 300 [7620] = +6 [152] / -0 0.2dB 50dB 1310 nm
FOL-AT-SCUSM-20D 20dB >300 [7620] = +5% / -0 0.2dB 50dB 1310 nm

Note: All dimensions are for reference only. All connectors are accompanied with a dust cap, installed. Cable assembly shall be individually packaged in accordance with L-COM Specification PS-0031.
