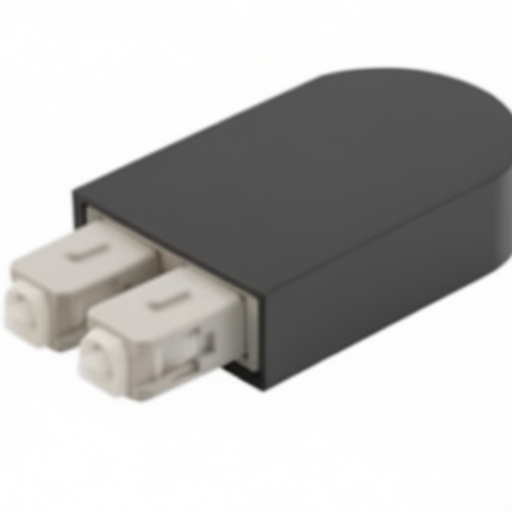

SC Connector Fiber Loopback Cable Assembly Multimode 50 125 L-com FOL-AT-SCUMM-01D Dust Cap Included
SC Connector Fiber Loopback Cable Assembly Multimode 50 125 L-com FOL-AT-SCUMM-01D Dust Cap Included
Specifications
Description :
Fiber Optic Connector Accessories RoHS
Mfr. Part # :
FOL-AT-SCUMM-01D
Model Number :
FOL-AT-SCUMM-01D
Description

Product Overview

This Fiber Loopback SC Multimode 50/125 cable assembly is designed for testing and diagnostic purposes. It features SC connectors with PC polish type and includes a dust cap on each connector. The cable assembly is individually packaged according to L-COM specification PS-0031 and complies with the EU RoHS Directive.

Product Attributes

  • Brand: L-COM
  • Connector Type: SC
  • Fiber Type: Multimode 50/125
  • Connector Polish Type: PC
  • Color: Beige (Connector)
  • Regulatory Compliance: EU RoHS Directive (most recent released version)

Technical Specifications

Model Number Attenuation Overall Cable Length Tolerance Insertion Loss Return Loss Test Wavelength
FOL-AT-SCUMM-01D 1dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-02D 2dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-03D 3dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-05D 5dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-10D 10dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm

Notes:
1. All dimensions are for reference only.
2. All connectors are accompanied with a dust cap, installed.
