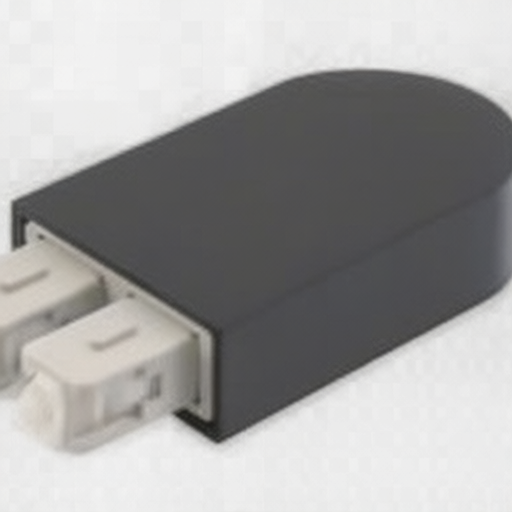

L com FOL AT SCUMM 02D multimode 50 125 fiber optic loopback cable SC connectors for signal testing
L com FOL AT SCUMM 02D multimode 50 125 fiber optic loopback cable SC connectors for signal testing
Specifications
Description :
Fiber Optic Connector Accessories RoHS
Mfr. Part # :
FOL-AT-SCUMM-02D
Model Number :
FOL-AT-SCUMM-02D
Description

Product Overview

This fiber optic loopback cable features SC connectors and is designed for multimode 50/125 fiber. It is suitable for testing and diagnostic purposes, providing a reliable method for signal return. The cable assembly is individually packaged in accordance with L-COM specification PS-0031 and complies with the EU RoHS Directive.

Product Attributes

  • Brand: L-COM
  • Connector Type: SC
  • Fiber Type: Multimode 50/125
  • Polish Type: PC
  • Color: Beige (Connector)
  • Regulatory Compliance: EU RoHS Directive (Most recent released version)

Technical Specifications

Model Number Attenuation Overall Cable Length Tolerance Insertion Loss Return Loss Test Wavelength
FOL-AT-SCUMM-01D 1dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-02D 2dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-03D 3dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-05D 5dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm
FOL-AT-SCUMM-10D 10dB 12 [305] = +1 [25] / -0
>12 [305] 60 [1524] = +2 [51] / -0
>60 [1524] 120 [3048] = +4 [102] / -0
>120 [3048] 300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0		 0.5dB 20dB 850 nm

Notes:

  • All dimensions are for reference only.
  • All connectors are accompanied with a dust cap, installed.
