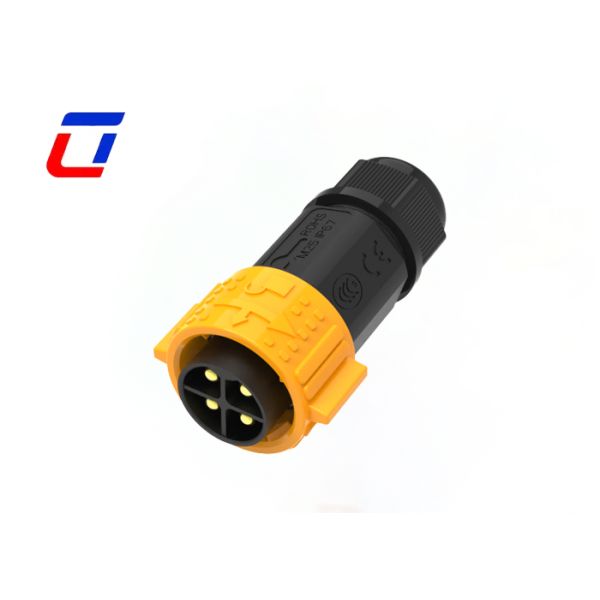

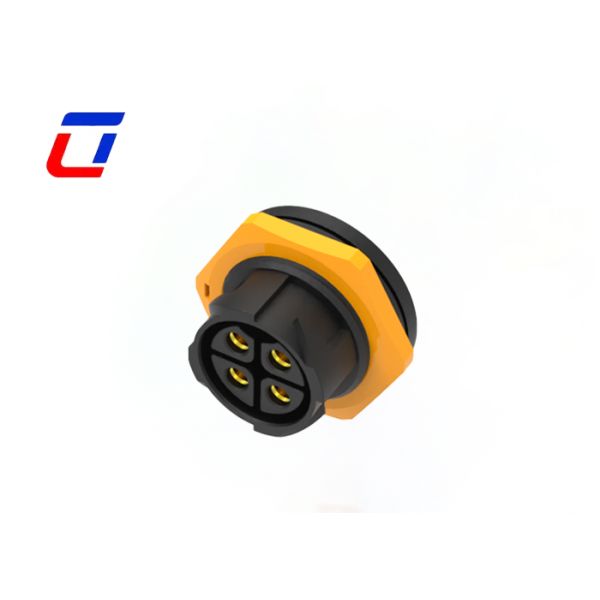

Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M25
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Current :
50A
Rated voltage :
600V
Material :
Nylon
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
PA66 M25 4 Pin Power Connector - OEM Push Pull Cable To Board Connectors with IP67 Waterproof Rating
Product Overview
This plastic M25 power connector is specifically designed for power transmission applications. Featuring a 4-pin plug-and-socket structure with a rated current of 50A and voltage of 600V, it delivers exceptional waterproof and dustproof performance. The connector effectively resists rainwater, dust, and other contaminants, ensuring stable and safe power supply in demanding environments.
Compliant with M25 standard interface specifications, the connector utilizes high-quality PA66 plastic housing with excellent insulation properties and durability for long-term reliability. The precise 4-pin layout ensures efficient, low-loss power transmission, making it ideal for industrial equipment, outdoor high-power devices, and applications requiring high-current, high-voltage power connections.
Key Features
  • Push lock quick release system for easy connection and disconnection
  • Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin
  • Field assembly versions with both wire-to-wire and wire-to-board options
  • High current rated waterproof connector suitable for up to 50A continuous operation
  • Cable assembly service supported with custom configuration options
  • OEM/ODM customization services available
Electrical Specifications
Number of Poles 4Pin waterproof connector
Current Rating 50A maximum
Voltage Rating 600VAC maximum
Durability Voltage 2500VAC @ 60 seconds
Technical Specifications
Contact Resistance 10 mΩ maximum
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Operation Parameters
Voltage Rating 600VAC maximum
Current Rating 30A maximum
Minimum Wire Size OD 6.5mm ~ 10mm
Maximum Wire Size OD 10.5mm ~ 18mm
Maximum Cable Cross Section Area 0.5mm² ~ 6.0mm²
Production Dimension
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Technical Details
Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
What payment methods do you accept?
We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment + 70% balance before shipment.
How do I place an order? What is the process?
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
