M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
5A
Pin :
12Pin
Rated voltage :
300V
Material :
Nylon
Color :
White Blue Red Black Yellow
Operating temperature :
-40℃-+105℃
Description

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors


Quick Description


  • M19 12-Pin IP67 Waterproof Plug & Socket – Circular connectors specifically developed for reliable operation in wet environments. Features an IP67 dust and waterproof rating, a corrosion-resistant housing, and secure 12-pin connectivity to guarantee stable signal and power transmission.
  • It enables easy mating and installation, with excellent durability for long-term service in industrial equipment, outdoor electronics, lighting systems, and marine devices. Ideal for demanding environments that require robust, moisture-proof electrical connections.
  • This connector is specialized for various power applications, adopting a user-friendly push-locking system. It only takes one second to insert, and then it locks automatically, simplifying operation procedures.
  • The integrated design of power and signal in one set has become increasingly popular in many devices. It perfectly solves the problem of separate use of power and signal connectors, especially suitable for applications with limited space.
  • Ulinkcon provides cable assembly services for multi-pin connectors. Please share detailed cable requirements, and customized services are available to meet specific application needs.

Main Features


  • Push lock quick release system

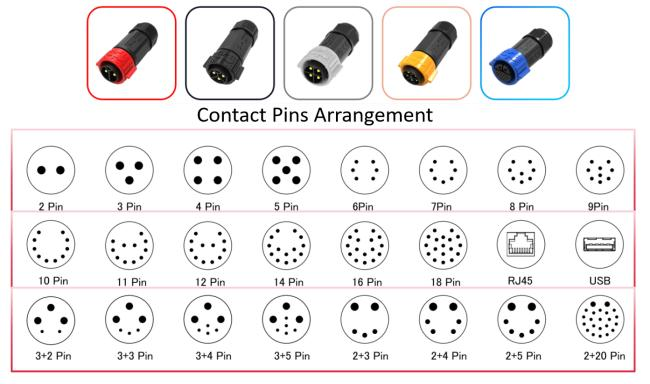

  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 12 Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Design Sketch


M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors


M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors


FAQ


1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

3. Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
