300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
300V M19 10 Pin Push Pull Cable Connectors Wire To Board Industrial Data Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
10Pin
Material :
Nylon
Current rating :
5A
Rated voltage :
300V
Gender :
Male to Female
Protection level :
IP67
Description

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors


Quick Description


Scenario & Structure
Customized for outdoor low-power signal transmission, with M19 circular design and 10Pin multi-channel layout for multiple signal transmission.


Signal Performance
10Pin gold-plated brass pins ensure low contact resistance, low loss and strong anti-interference for stable low-power signal transmission.


Outdoor Protection
Integrated waterproof sealing and weather-resistant plastic housing (-40℃~105℃) resist rain, dust, UV and extreme temperatures.


Connection & Application
Snap-on male-female design provides firm, anti-vibration connection; widely used in sensors, security, lighting and environmental monitoring.



Electrical Parameters
Number of Poles 10Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Main Features


  • Push lock quick release system

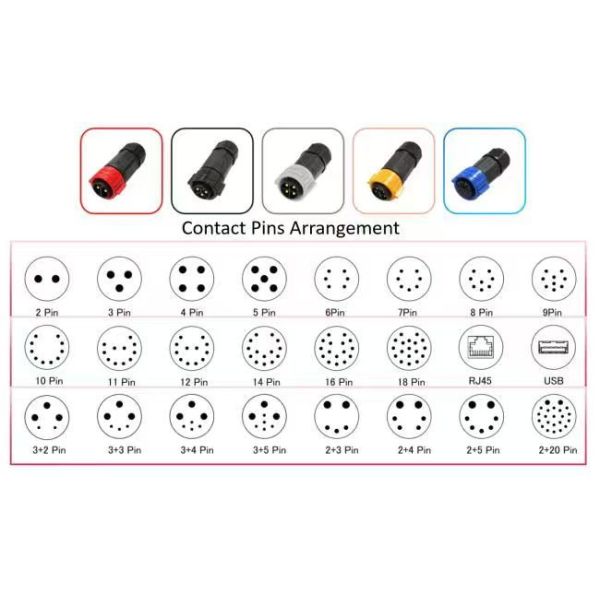

  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Design Sketch



FAQ


1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

3. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
