M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Gender :
Male to Female Plug&Socket
Pin :
11Pin
Current rating :
5A
Material :
Nylon
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Description

Wire To Board M19 11 Pin Connectors For Data

Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Quick Description


Core Specification Parameters: Features an 11Pin pin design that accurately matches data transmission requirements, ensuring the stability and integrity of signal transmission; adopts an M19 circular interface that complies with industrial standard dimensions, suitable for panel mount scenarios. It has precise plug-in positioning, strong compatibility with cables and equipment interfaces of corresponding specifications, enabling efficient and convenient installation.

Professional Waterproof Protection: Equipped with IP67 high-level waterproof and dustproof performance, the housing adopts a fully sealed structural design. It can effectively resist erosion from harsh industrial environments such as rainwater, moisture, dust, and oil stains, ensuring uninterrupted data transmission under complex working conditions, providing reliable protection for stable equipment operation and extending product service life.

Industrial-Grade Adaptation Features: Specifically designed for data transmission in industrial scenarios, it is compatible with the common voltage range of industrial equipment and has stable current-carrying capacity. It can safely and reliably realize high-speed data and auxiliary power transmission between industrial equipment, meet the strict operation requirements of industrial-grade equipment, and is widely compatible with various industrial control and data acquisition equipment.

High-Quality Material & Craftsmanship: The housing is made of industrial-grade high-strength engineering plastic, which has excellent wear resistance, impact resistance and corrosion resistance, adapting to complex industrial environments; the pins adopt precision gold-plating technology, which effectively reduces contact resistance, improves electrical conductivity, oxidation resistance and aging resistance, ensuring stable and long-term durable connections.

Wide Application Scenarios: Suitable for data transmission connections in industrial scenarios such as industrial automation control, intelligent manufacturing equipment, data acquisition systems, industrial sensors, outdoor detection equipment, and communication base stations. It is especially suitable for harsh industrial environments and outdoor data transmission scenarios that require panel mount, waterproof and dustproof functions.

Push-Pull Convenient Connection: Adopts a user-friendly push-pull connection design, which is smooth and labor-saving in plugging and unplugging, with firm connection and locking, not easy to fall off due to vibration and collision; combined with panel mount structure, it has precise installation positioning and convenient disassembly and maintenance, greatly improving installation and operation efficiency in industrial scenarios.


Electrical Parameters
Number of Poles 11Pin
Current Rating 5 Amax.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2

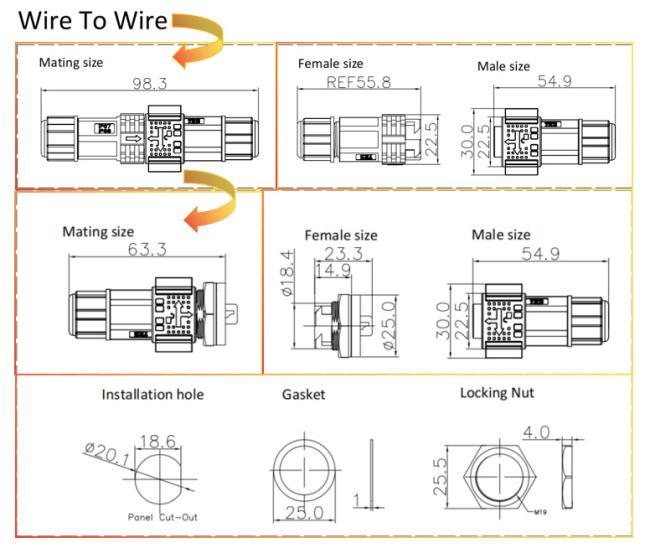

Design Sketch


M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data

M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
