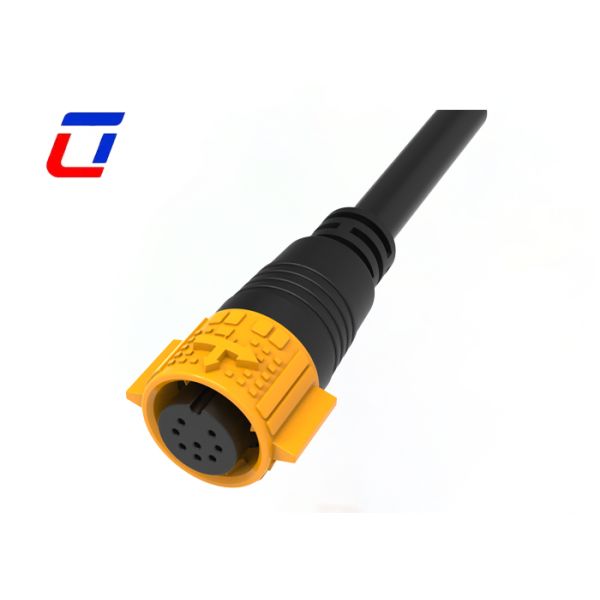

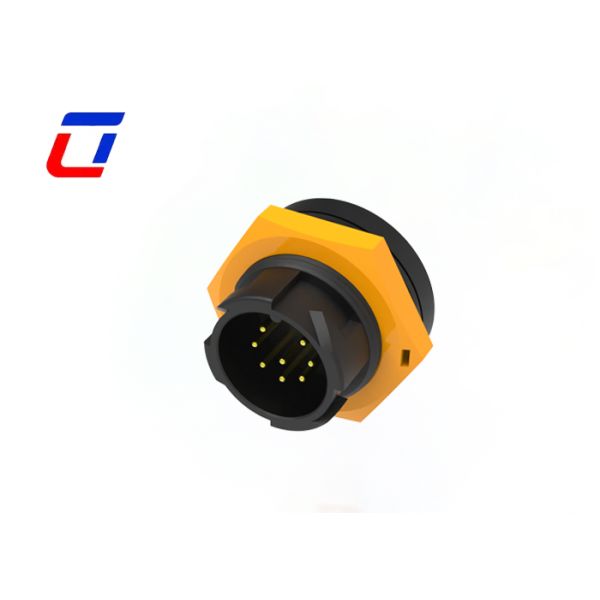

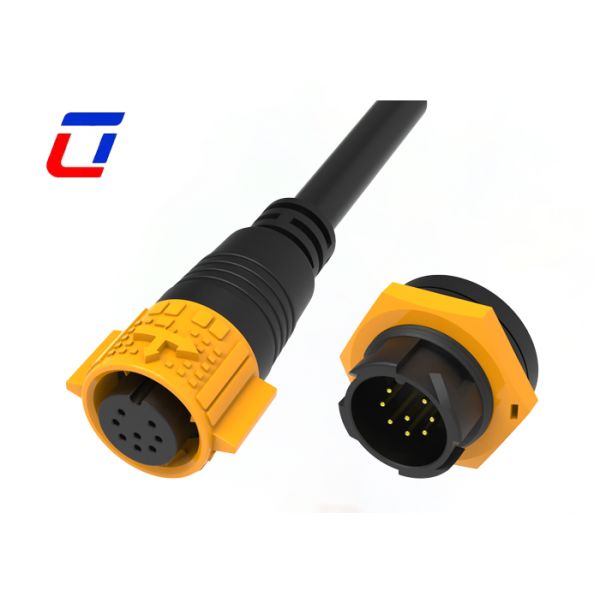

8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
8Pin For Data
Gender :
Male to Female
Material :
Nylon
Rated voltage :
300V
Operating temperature :
-40℃-+105℃
Flame-sesistant rating :
UL 94-V0
Description
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
Product Overview

8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors

Core Features
  • Wire-to-board male-female connector for low-voltage and medium-voltage signal transmission
  • M19 specification compatibility with 8-pin precise signal channels
  • Quick-release structure for efficient connection and stable transmission
  • Rated voltage 300V with IP67 waterproof rating
  • Anti-loose locking mechanism for vibration and drop resistance
  • Weather-resistant plastic housing with corrosion-resistant metal contacts
Technical Specifications
Electrical Parameters
Number of Poles 8Pin
Current Rating 10A max.
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 1.5mm2
Configuration Options
  • Push lock quick release system
  • Multic-core power options: 2Pin, 3Pin, 4Pin, 5Pin
  • Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions: wire to wire and wire to board options
  • Current rated 10A for long time working
  • Cable assembly service supported with custom options
  • OEM/ODM services available
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Product Design
8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release 8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
Frequently Asked Questions
What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
