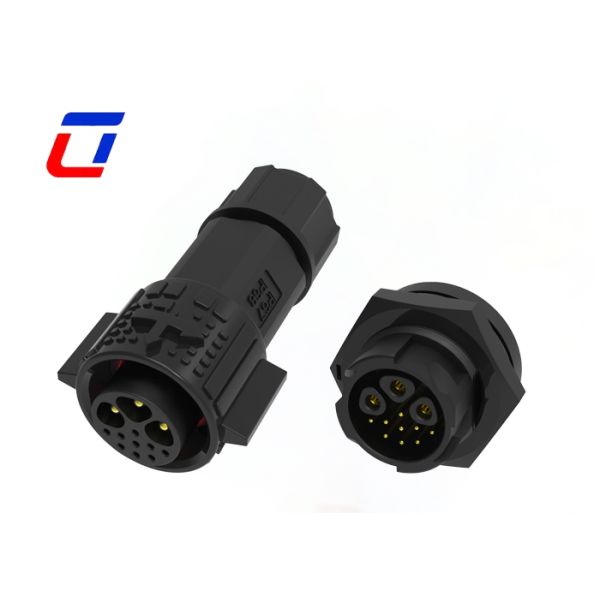

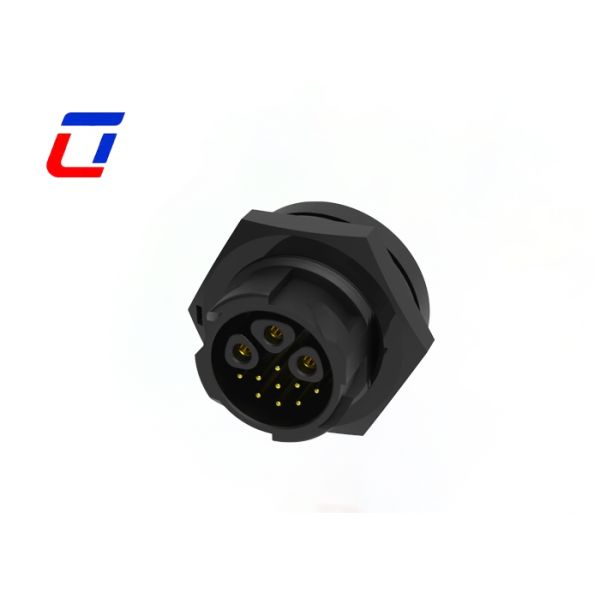

M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
5~8 working days
Packaging Details :
Box
Number of Pins :
3+9 PIN
Current :
15A+5A
Waterproof Rating :
IP67
Temperature Range :
-40℃~+105℃
Material :
Nylon
Flame-resistant rating :
UL94-V0
Description
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector
Quick Release Wire Connector M19 3+9 Pin Waterproof 300V Connector

This M19 Circular Connector features a 12-pin (3+9) precision configuration with TUV certification, integrating both power and signal transmission functions. The 3-pin channel provides stable power supply while the 9-pin channel handles multi-group signal transmission, enabling separated and coordinated operation for complex working conditions.

Built with an M19 standard circular structure, it ensures precise and firm male-female docking, stable contact impedance, and excellent vibration resistance and weatherability. Made from high-durability materials with advanced sealing design, it's suitable for outdoor and industrial humid environments, providing reliable connections for various equipment applications.

Main Features
  • Push lock quick release system for easy operation
  • Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions available: wire-to-wire and wire-to-board options
  • 20A current rating for long-term operation
  • Cable assembly services supported with customization options
  • OEM/ODM services welcome
Technical Specifications
Connector System Cable-to-Board
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Circular Connector Type Plug, Receptacle
Shell Material PA66
Number of Poles 3+9
Current Rating 15A+5A max
Voltage Rating 600VAC max
Durability Voltage 2500VAC @ 60 s
Operating Temperature Range -40°C to 105°C
IP Protection Rating IP67
Durability Rating 250-251 cycles
UL Flammability Rating UL 94V-0
Application Industries
  • Communications equipment
  • Product coding machines and inkjet systems
  • Inventory product coding equipment
  • Industrial inkjet equipment
  • Solar power systems
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Heavy machinery
Production Dimension
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
Technical Details
M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9 M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends primarily on the connector's insulation material and the spacing between contact points. Some components or devices may not function properly when operated below their rated voltage specifications.
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery time varies by destination and shipping method selected.
How do I place an order? What is the process?
The ordering process is straightforward: Confirm product details and receive a proforma invoice; Make the agreed down payment; We begin production and provide progress updates; Pay the balance before shipment; We arrange delivery and provide tracking information.
