M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
Specifications
Brand Name :
Ulinkcon
Model Number :
M25
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
5~8 working days
Packaging Details :
Box
Number of Pins :
3+13PIN
Current :
15A+5A
Waterproof Rating :
IP67
Temperature Range :
-40℃~+105℃
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
M25 3+13 Pin Waterproof Cable Connector
Advanced push lock multi-pin connectors featuring quick locking mechanism and IP67 waterproof rating for reliable data and power transmission.
Key Features
  • Push lock quick release system for easy connection
  • Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, and 2+20Pin
  • Field assembly versions available for wire-to-wire and wire-to-board applications
  • Rated for 20A continuous operation
  • Custom cable assembly services available
  • OEM/ODM customization welcome
Product Overview
This M25 3+13 pin multi-pin connector features advanced gold-plated terminal technology that significantly enhances conductivity while providing superior oxidation and corrosion resistance for extended outdoor service life. Designed to meet dual power supply and signal transmission requirements for medium-power devices with electrical parameters of 30A/300V, the connector utilizes a male-female mating design compatible with panel mount configurations for flexible installation across diverse assembly scenarios.
The integrated sealed waterproof structure effectively resists rain, moisture, and dust erosion, ensuring stable operation in harsh outdoor environments. The 3+13 pin independent circuit design enables simultaneous "power + multi-signal" transmission, while the highly integrated design simplifies equipment interfaces, making it ideal for space-constrained applications.
Technical Specifications
Connector System Cable-to-Board
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Circular Connector Type Plug, Receptacle
Shell Type Plastic Shell
Product Type Connector Kit
Number of Positions 3+13
Number of Signal Positions 13
Contacts Preloaded Yes
Operating Voltage (VAC/VDC) 300V max.
Shell Material PA66
Insulation Material Low Fire Hazard Thermoplastic
Hermetically Sealed Yes
Environmental Protection Elastomer Sealed, Hermetically Sealed
Contact Current Rating 15A max.
Contact Type Pin-Socket
Connector Mounting Type Cable Mount (Free-Hanging)
Mating Alignment Keyed
Wire Size (AWG) 20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature -40°C to 105°C
IP Rating IP67 (Water and Dust)
UL Flammability Rating UL 94V-0
Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

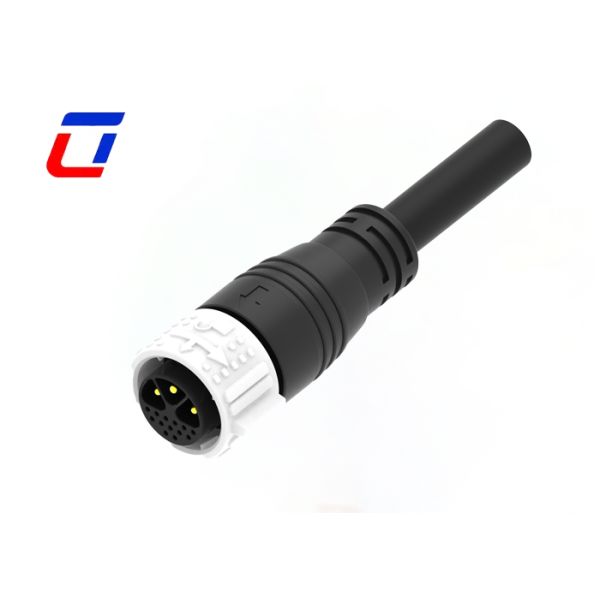

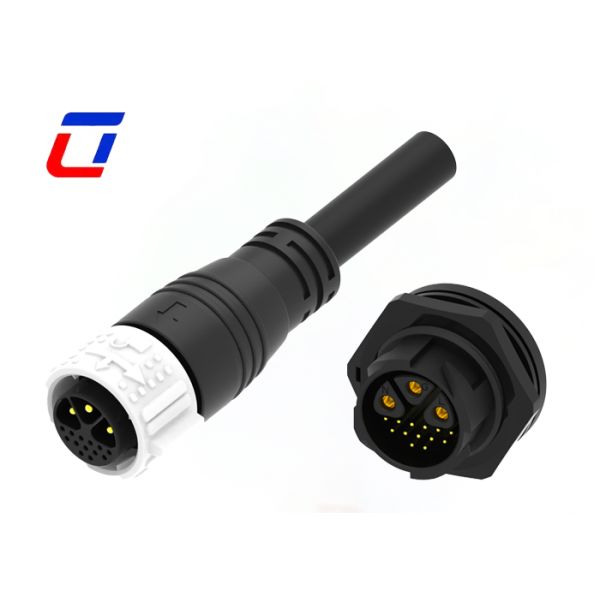

Product Images
M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends primarily on the connector's insulation material and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage specifications.
How do I place an order? What is the process?
The order process is simple: 1) Confirm product details and receive a proforma invoice (PI); 2) Make the down payment as agreed; 3) We begin production and provide progress updates; 4) Pay the balance before shipment; 5) We arrange delivery and provide tracking information.
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (such as FCC, UL) can be provided upon request based on your target market requirements.
