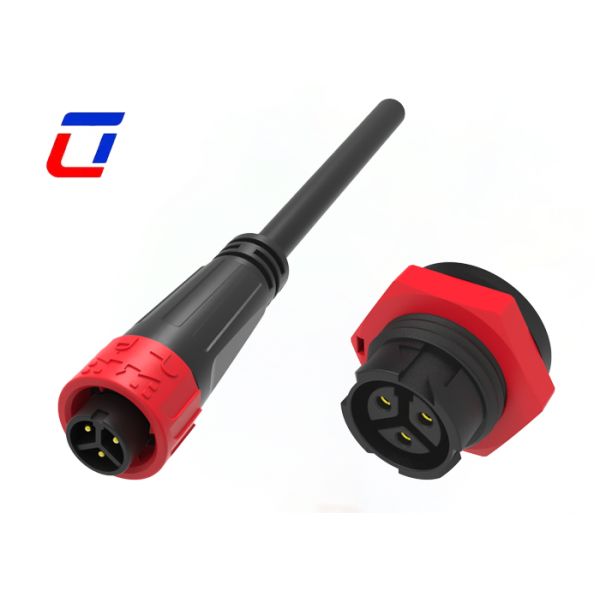

M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
3Pin
Current :
10A max
Rated voltage :
300V
Waterproof Rating :
IP67
Color :
Red Blue White Black Yellow
Industry Fields :
Industrial Automation / New Energy / Construction Engineering
Description
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
Product Overview

Quick Release M16 3Pin Waterproof Circular Connector designed for industrial automation applications. This 3-pin male-to-female docking circular connector features M16 standard specification and high-strength plastic housing, providing high-reliability power connection for complex industrial environments.

Key Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin available
  • Field assembly version: wire-to-wire and wire-to-board options
  • High current rated waterproof connector up to 10A for continuous operation
  • Cable assembly service supported with customization options
  • OEM/ODM services available
Electrical Specifications
Number of Poles 3Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Specifications
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications equipment
  • Product coding machines
  • Inventory product coding systems
  • Inkjet systems
  • Solar systems
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Heavy machinery
Production Dimensions
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
Technical Details
M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
Frequently Asked Questions
Q1: How many materials can you provide?

There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.

Q2: Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3: Can I have custom labeling?

Yes, you can create your own private label and packaging. If you need packaging design services, we also have professional designers available to assist you.
